STEP

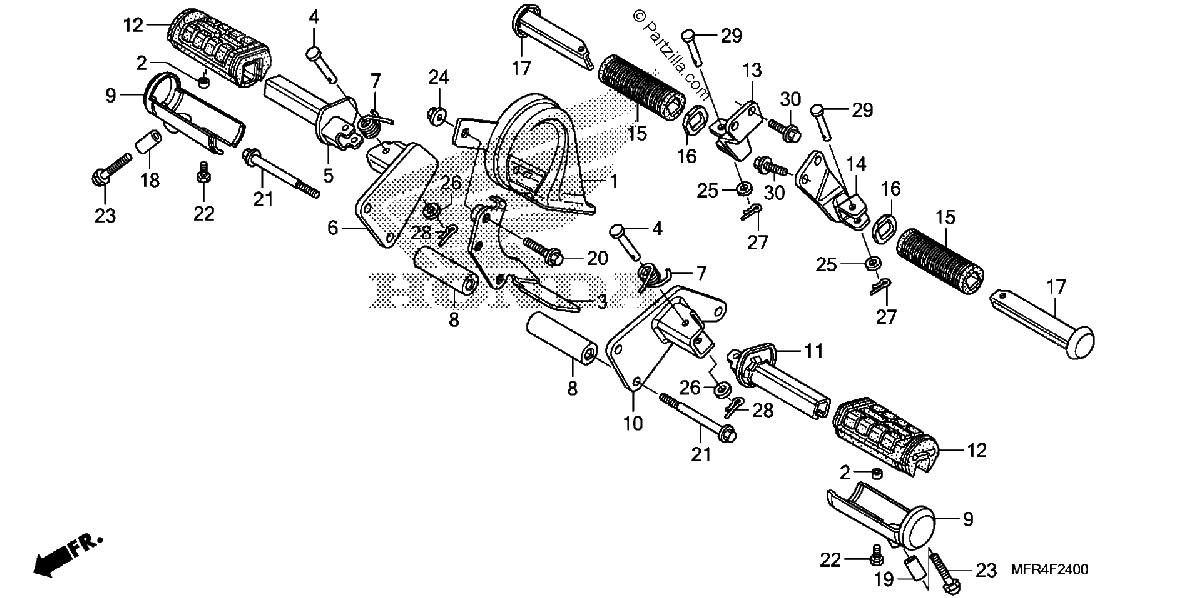

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
HORN (LOW)
$94.07¢47 035
#2
COLLAR, CHAIN CASE
$3.36¢1 679
#3
STAY, HORN
$25.89¢12 943
#4
PIN, STEP BAR JOINT
$3.58¢1 788
#5
BAR, R. STEP (COO)
$19.01¢9 505
#6
BRACKET, R. STEP
$47.89¢23 943
#7
SPRING, STEP RETURN
$6.47¢3 237
#8
COLLAR, STEP BRACKET
$10.97¢5 485
#9
STOPPER, STEP RUBBER
$15.12¢7 561
#10
BRACKET, L. STEP
$62.74¢31 372
#11
BAR, L. STEP (COO)
$19.01¢9 505
#12
RUBBER, MAIN STEP (COO)
$12.73¢6 365
#13
BRACKET, Right PILLION STEP
$88.57¢44 287
#14
BRACKET, L PILLION STEP
$88.57¢44 287
#15
RUBBER, PILLION FOOTPEG
$15.19¢7 596
#15
RUBBER, PILLION STEP
$15.19¢7 596
#15
RUBBER, PILLION STEP (COO)
$30.50¢15 249
#16
WASHER, PILLION STEP
$3.66¢1 829
#17
BAR, PILLION STEP (COO)
$26.68¢13 340
#18
COLLAR, R. STEP
$4.34¢2 168
#19
COLLAR, L. STEP
$4.12¢2 059
#20
BOLT, SPECIAL FLANGE (8X23)
$4.08¢2 041
#21
BOLT, SPECIAL FLANGE (8X90)
$7.37¢3 686
#22
BOLT, HEX. (6X12)
$1.68¢839
#23
BOLT, CAP (8X30)
$3.85¢1 926
#24
NUT, FLANGE (8MM)
$1.06¢529
#25
WASHER, PLAIN (6MM)
$0.77¢385
#25
WASHER, PLAIN (6MM)
$0.77¢385
#25
WASHER, PLAIN (6MM)
$0.77¢385
#26
WASHER, PLAIN (8MM)
$0.98¢489
#27
PIN, SPLIT (1.6X15)
$1.23¢615
#27
PIN, COTTER (1.6X25)
$1.23¢615
#28
PIN, SPLIT (2.0X15)
$1.23¢615
#29
PIN A, PILLION STEP
$2.62¢1 311
#30
BOLT, FLANGE (8X20)
$2.21¢1 104
