REAR BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

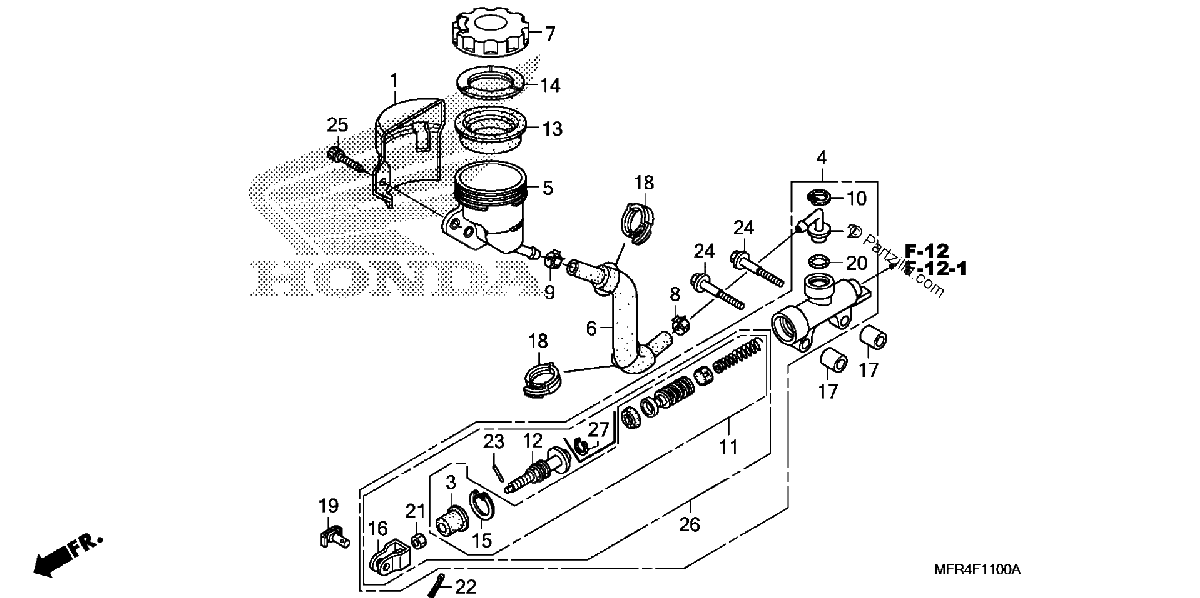

Diagrama de REAR BRAKE MASTER CYLINDER

Repuestos

#1
21341-MCH-000
COVER, RR. BRAKE OIL CUP
$18.72¢9 361
1
#2
43503-KS6-701
CONNECTOR, MASTER CYLINDER
$10.72¢5 359
1
#3
43504-MB2-006
BOOT
$10.80¢5 399
1
#4
43510-MFR-305
MASTER CYLINDER SUB-ASSY., RR. (COO) (NISSIN)
$246.33¢123 165
1
#4
43510-MFR-671
MASTER CYLINDER SUB-ASSY., RR. (NISSIN)
$246.33¢123 165
1
#5
43511-MA6-006
CUP, MASTER CYLINDER OIL
$43.29¢21 643
1
#6
43512-MFR-671
HOSE, RR. MASTER CYLINDER
$13.16¢6 578
1
#7
43513-MY1-006
CAP, OIL CUP
$31.62¢15 812
1
#8
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
1
#9
43514-MN9-006
CLAMP, MASTER CYLINDER OIL HOSE
$18.10¢9 051
1
#10
43517-KS6-701
CIRCLIP, Rear MASTER CYLINDER
$4.25¢2 128
1
#11
43520-MB2-315
PISTON SET, MASTER CYLINDER (NISSIN)
$49.67¢24 834
1
#12
43530-MV9-006
ROD, PUSH
$41.84¢20 918
1
#13
45520-300-000
DIAPHRAGM
$9.74¢4 870
1
#14
45521-MJ6-006
PLATE, DIAPHRAGM
$4.52¢2 260
1
#15
46182-MEL-D21
CIRCLIP
$2.30¢1 150
1
#16
46504-MAH-671
JOINT, BRAKE ROD
$16.93¢8 464
1
#17
50617-MFR-670
COLLAR, RR. BRAKE BRACKET
$4.43¢2 214
1
#18
90683-KJ2-003
CLIP, WIRE HARNESS
$3.98¢1 989
1
#19
90751-MEH-000
PIN, JOINT
$3.86¢1 932
1
#20
91212-422-006
O-RING (14.8X2.4)
$3.04¢1 518
1
#21
94002-08000-0S
NUT, HEX. (8MM)
$1.47¢736
1
#22
94201-20150
PIN, SPLIT (2.0X15)
$1.23¢615
1
#23
94305-20102
PIN, SPRING (2X10)
$1.03¢518
1
#24
95801-06035-08
BOLT, FLANGE (6X35)
$2.22¢1 110
1
#25
96600-06016-07
BOLT, SOCKET (6X16)
$2.06¢1 029
1
