TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

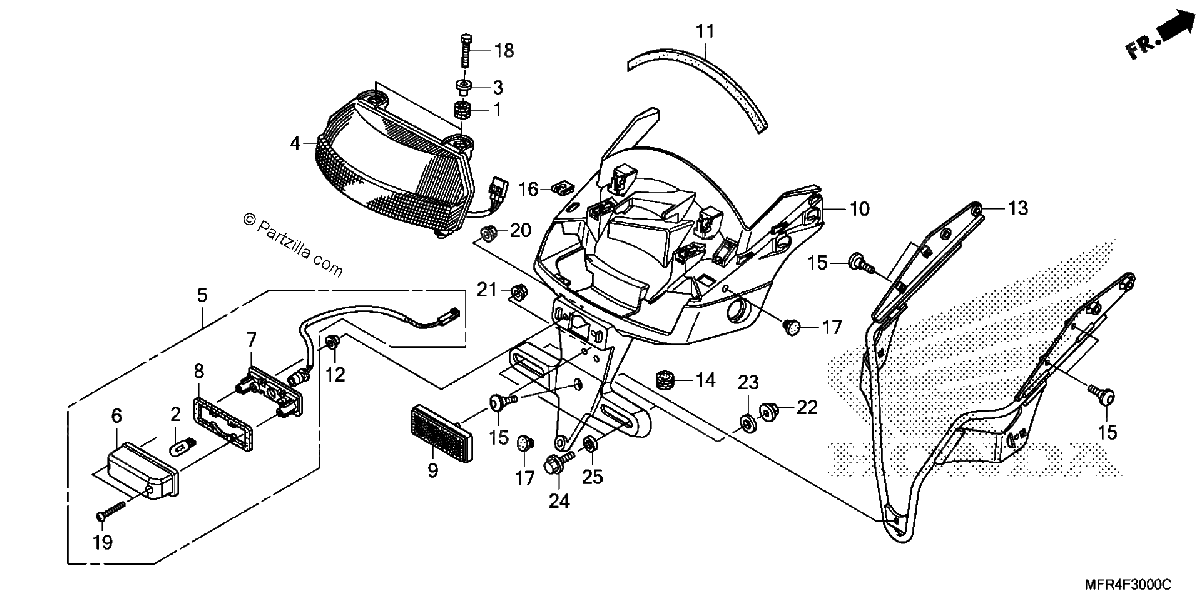

Diagrama de TAILLIGHT

Repuestos

#1
19639-GBC-000
RUBBER, MOUNTING
$1.66¢828
1
#2
33301-SA0-741
BULB (12V 5W) (STANLEY)
$4.24¢2 122
1
#3
33614-MEC-650
COLLAR C, RR. TURN SIGNAL
$3.04¢1 518
1
#4
33701-MFR-305
TAILLIGHT UNIT (COO) (STANLEY)
$331.67¢165 836
1
#5
33720-MFR-305
LIGHT ASSY., LICENSE (12V 5W) (COO) (STANLEY)
$75.24¢37 622
1
#6
33721-MFR-305
COVER, LICENSE (COO)
$17.46¢8 728
1
#7
33723-MCZ-671
BASE, LICENSE
$24.33¢12 167
1
#8
33729-MCZ-003
GASKET, LENS
$11.21¢5 606
1
#9
33741-MS6-921
REFLECTOR, REFLEX (STANLEY)
$16.31¢8 153
1
#10
80101-MFR-670
FENDER A, RR.
$36.20¢18 101
1
#11
80104-MFE-670
MOUL, RR. FENDER COVER
$10.06¢5 031
1
#12
80114-KG7-000
COLLAR, RR. FENDER
$5.07¢2 536
1
#13
80132-MFR-670
STAY A, RR. FENDER
$166.09¢83 047
1
#14
83551-MB9-000
GROMMET
$3.04¢1 518
1
#15
90124-MY6-670
SCREW, PAN (6X13)
$3.09¢1 547
1
#16
90320-GC3-000
NUT, SPRING (5MM)
$2.74¢1 368
1
#17
90852-446-630
PLUG, HOLE
$3.04¢1 518
1
#18
93101-05016-0G
BOLT, HEX. (5X16)
$0.85¢426
1
#19
93901-24480
SCREW, TAPPING (4X16)
$0.98¢489
1
#20
94050-05000
NUT, FLANGE (5MM)
$1.54¢771
1
#21
94050-05070
NUT, FLANGE (5MM)
$1.53¢765
1
#22
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#23
94103-06800
WASHER, PLAIN (6MM)
$0.92¢460
1
#24
95701-06016-00
BOLT, FLANGE (6X16)
$1.92¢960
1
#25
80104-065-000
COLLAR, TAILLIGHT
$3.36¢1 679
1
