SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

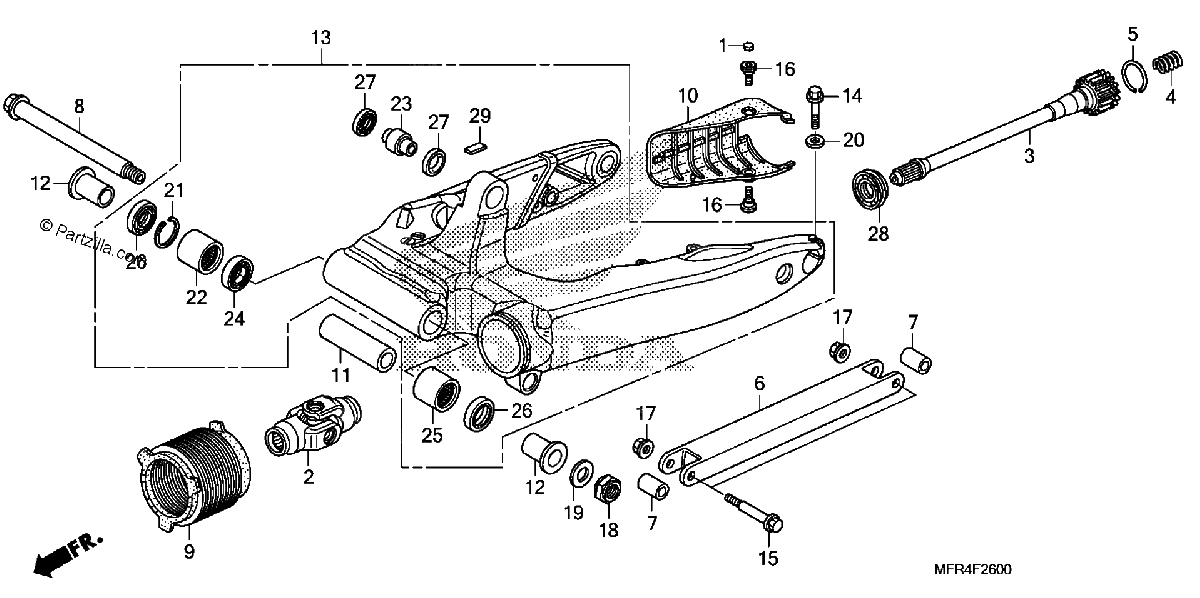

Diagrama de SWINGARM

Repuestos

#1
12392-MJ0-000
PLUG, HEX. (6MM)
$5.04¢2 519
1
#2
40200-MFR-670
JOINT, YOKE
$207.78¢103 891
1
#3
40201-MFR-670
SHAFT, PROPELLER
$191.35¢95 674
1
#4
40215-ME9-003
SPRING, PROPELLER SHAFT
$6.59¢3 295
1
#5
40221-MB0-000
RING, STOPPER
$5.04¢2 519
1
#6
41610-MFR-670
LINK, TORQUE
$175.50¢87 751
1
#7
41615-MFR-670
BUSH, TORQUE LINK
$13.89¢6 946
1
#8
52101-MFR-670
BOLT, SWINGARM PIVOT
$70.89¢35 443
1
#9
52104-MFR-670
BOOT, JOINT
$29.93¢14 967
1
#10
52105-MFR-670
COVER, PROPELLER SHAFT
$28.90¢14 450
1
#11
52141-MFR-670
COLLAR, CENTER PIVOT DISTANCE
$27.11¢13 553
1
#12
52142-MFR-670
COLLAR, PIVOT DISTANCE
$33.48¢16 738
1
#13
52200-MFR-670ZG
SWINGARM SUB-Assembly., Rear. NHA86M (MAT BALLISTIC BLACK)
$1411.14¢705 571
1
#14
90103-MFR-670
BOLT, FLANGE (8X35)
$7.99¢3 996
1
#15
90106-MFR-670
BOLT, FLANGE (10X50)
$5.13¢2 565
1
#16
90108-MFR-670
BOLT, SOCKET (6X12)
$3.81¢1 903
1
#17
90304-KAE-871
NUT, U (10MM)
$4.83¢2 415
1
#18
90306-MCS-G00
NUT, U (18MM)
$7.95¢3 973
1
#18
90306-MCS-G01
NUT, U (18MM)
$7.60¢3 801
1
#19
90432-MCS-G00
WASHER, SPECIAL (18MM)
$3.39¢1 696
1
#20
90501-MFR-670
WASHER, PLAIN (8MM)
$4.51¢2 254
1
#21
90651-MEW-920
CIRCLIP (INNER) (37)
$3.71¢1 857
1
#22
91071-MBW-E11
BEARING, NEEDLE
$18.38¢9 189
1
#23
91071-MEC-003
BEARING, SPHERICAL (10MM)
$42.78¢21 390
1
#24
91071-MEW-921
BEARING, RADIAL BALL (20X37X9)
$11.03¢5 514
1
#25
91071-MR7-003
BEARING, NEEDLE
$27.44¢13 719
1
#26
91202-MR7-003
DUST SEAL (28X37X4)
$7.08¢3 542
1
#27
91254-MBR-003
DUST SEAL (16X26X2.5)
$6.92¢3 461
1
#28
91261-ME9-005
OIL SEAL (27X43X7)
$12.96¢6 480
1
#29
83512-MAN-600
TAPE, SIDE COVER PROTECTOR
$1.41¢707
1
