SPEEDOMETER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

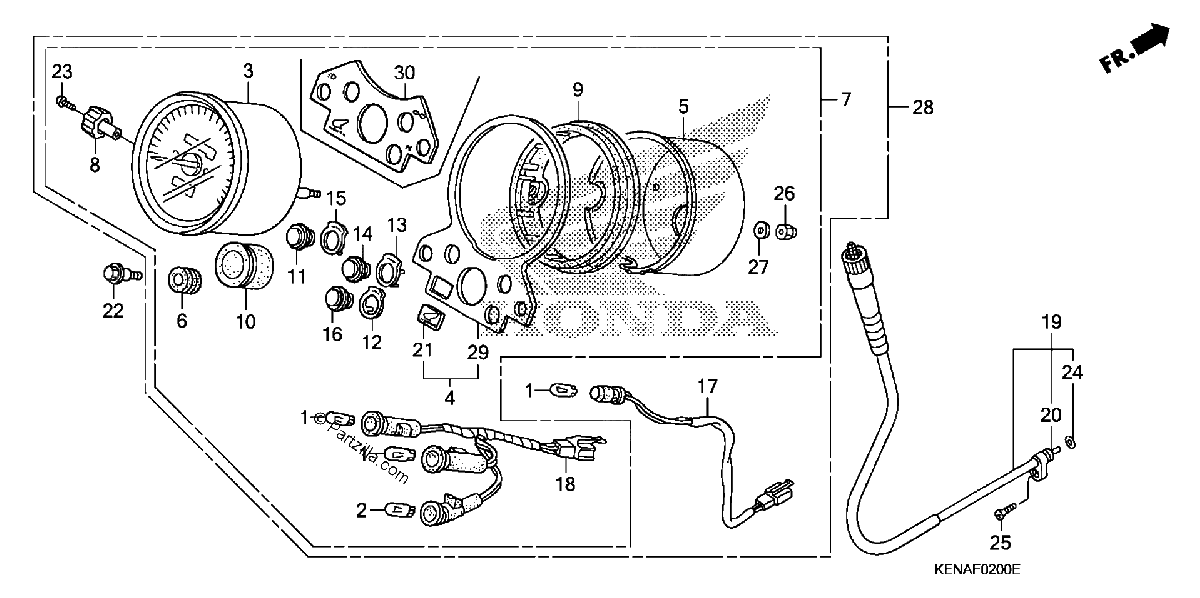

Diagrama de SPEEDOMETER

Repuestos

#001
34908-GA7-701
BULB, WEDGE BASE (T10) (12V 3.4W) (NIPPON SEIKI)
$5.66¢2 829
1
#1
37237-SA5-003
BULB (14V 3.4W) (NS)
$4.67¢2 335
1
#001
37102-567-009
BULB (12V3.4W) (158)
$4.67¢2 335
1
#1
37102-567-009
BULB (12V3.4W) (158)
$4.67¢2 335
1
#1
34908-GA7-701
BULB, WEDGE BASE (T10) (12V 3.4W) (NIPPON SEIKI)
$5.66¢2 829
1
#001
37237-SA5-004
BULB (14V 3.4W) (DENSO)
$4.67¢2 335
1
#1
37237-SA5-004
BULB (14V 3.4W) (DENSO)
$4.67¢2 335
1
#001
37237-SA5-003
BULB (14V 3.4W) (NS)
$4.67¢2 335
1
#002
34908-KM1-671
BULB, WEDGE BASE (T6.5) (12V 3W)
$7.89¢3 944
1
#2
34908-KM1-671
BULB, WEDGE BASE (T6.5) (12V 3W)
$7.89¢3 944
1
#3
37210-KEN-A51
SPEEDOMETER
$427.71¢213 854
1
#003
37210-KEN-A51
SPEEDOMETER
$427.71¢213 854
1
#4
37211-KR3-950
BRACKET
$67.26¢33 632
1
#004
37211-KR3-950
BRACKET
$67.26¢33 632
1
#5
37212-KR3-760
COVER
$106.06¢53 032
1
#005
37212-KR3-760
COVER
$106.06¢53 032
1
#006
37215-KR3-672
RUBBER, MOUNTING
$3.36¢1 679
1
#6
37215-KR3-672
RUBBER, MOUNTING
$3.36¢1 679
1
#007
37220-KEN-A52
METER Assembly.
$473.82¢236 911
1
#7
37220-KEN-A52
METER Assembly.
$473.82¢236 911
1
#008
37220-MA6-008
KNOB, TRIP
$13.72¢6 860
1
#8
37220-MA6-008
KNOB, TRIP
$13.72¢6 860
1
#9
37242-KR3-671
CUSHION, RUBBER
$12.57¢6 285
1
#009
37242-KR3-671
CUSHION, RUBBER
$12.57¢6 285
1
#010
37312-KR3-671
GROMMET, COMBINATION SWITCH
$8.97¢4 485
1
#10
37312-KR3-671
GROMMET, COMBINATION SWITCH
$8.97¢4 485
1
#011
37551-GN0-711
LENS, HIGH BEAM PILOT (BLUE)
$5.90¢2 950
1
#11
37551-GN0-711
LENS, HIGH BEAM PILOT (BLUE)
$5.90¢2 950
1
#12
37555-KEB-901
PANEL, NEUTRAL
$5.42¢2 708
1
#012
37555-KEB-901
PANEL, NEUTRAL
$5.42¢2 708
1
#013
37556-KR3-671
PANEL, TURN SIGNAL PILOT
$10.52¢5 261
1
#13
37556-KR3-671
PANEL, TURN SIGNAL PILOT
$10.52¢5 261
1
#14
37561-KR3-671
LENS, TURN SIGNAL PILOT (ORANGE)
$10.03¢5 014
1
#014
37561-KR3-671
LENS, TURN SIGNAL PILOT (ORANGE)
$10.03¢5 014
1
#15
37567-KEB-901
PANEL, HIGH BEAM
$5.08¢2 541
1
#015
37567-KEB-901
PANEL, HIGH BEAM
$5.08¢2 541
1
#016
37571-KR3-671
LENS, NEUTRAL PILOT (GREEN)
$11.71¢5 853
1
#16
37571-KR3-671
LENS, NEUTRAL PILOT (GREEN)
$11.71¢5 853
1
#017
37619-KEN-A51
SOCKET
$30.16¢15 082
1
#17
37619-KEN-A51
SOCKET
$30.16¢15 082
1
#18
37650-KEB-901
SOCKET, PILOT
$16.80¢8 401
1
#018
37650-KEB-901
SOCKET, PILOT
$16.80¢8 401
1
#19
44830-KR3-000
CABLE ASSY., SPEEDOMETER
$33.13¢16 566
1
#019
44830-KR3-000
CABLE ASSY., SPEEDOMETER
$33.13¢16 566
1
#020
44831-KR3-000
CABLE (INNER)
No Disponible
1
#20
44831-KR3-000
CABLE (INNER)
No Disponible
1
#021
86150-MR1-760
EMBLEM, WING MARK
$10.37¢5 187
1
#21
86150-MR1-760
EMBLEM, WING MARK
$10.37¢5 187
1
#022
90104-KR3-670
SCREW, METER SETTING
$3.51¢1 754
1
#22
90104-KR3-670
SCREW, METER SETTING
$3.51¢1 754
1
#23
90158-KM7-911
SCREW, PAN (2X6)
$2.39¢1 196
1
#023
90158-KM7-911
SCREW, PAN (2X6)
$2.39¢1 196
1
#24
91301-027-000
O-RING (6.8X1.9)
$3.36¢1 679
1
#024
91301-027-000
O-RING (6.8X1.9)
$3.36¢1 679
1
#024
91306-PJ4-000
O-RING (6.8X1.9)
$3.36¢1 679
1
#24
91306-PJ4-000
O-RING (6.8X1.9)
$3.36¢1 679
1
#24
91310-MC7-003
O-RING B (6.8X1.9)
$3.36¢1 679
1
#024
91310-MC7-003
O-RING B (6.8X1.9)
$3.36¢1 679
1
#025
93700-05020-0G
SCREW, OVAL (5X20)
$0.62¢311
1
#25
93700-05020-0G
SCREW, OVAL (5X20)
$0.62¢311
1
#026
94021-05020-0S
NUT, CAP (5MM)
$0.80¢402
1
#26
94021-05020-0S
NUT, CAP (5MM)
$0.80¢402
1
#27
94101-05000
WASHER, PLAIN (5MM)
$1.17¢586
1
#027
94101-05000
WASHER, PLAIN (5MM)
$1.17¢586
1
#28
37200-KEN-A52
SPEEDOMETER Assembly. (MPH/KPH)
$501.57¢250 786
1
#028
37200-KEN-A52
SPEEDOMETER Assembly. (MPH/KPH)
$501.57¢250 786
1
