REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

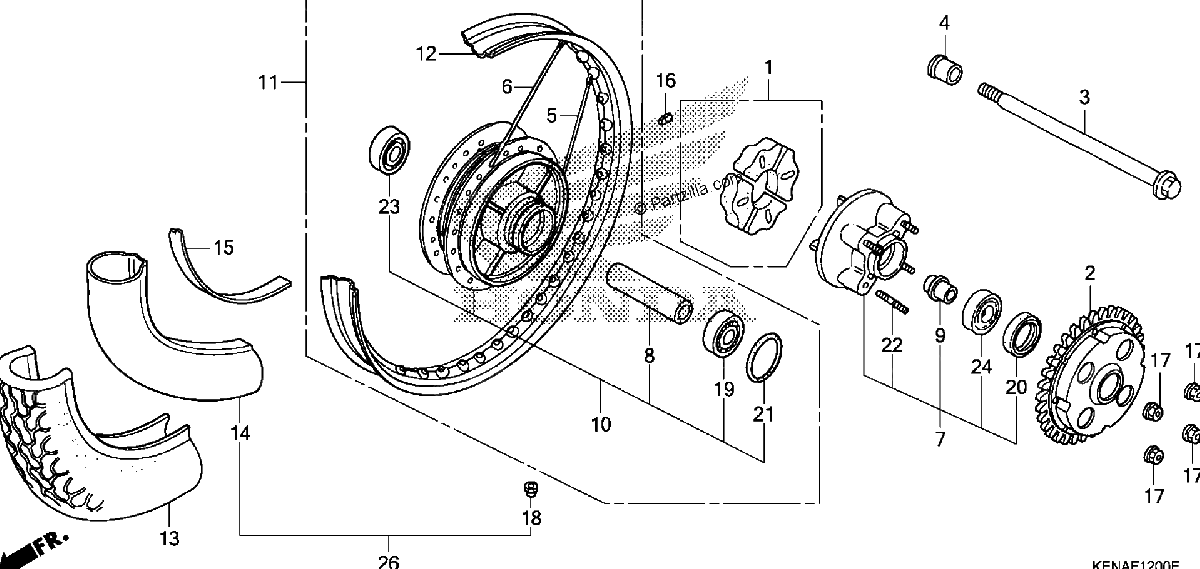

Diagrama de REAR WHEEL

Repuestos

#1
06410-KR3-620
DAMPER SET, WHEEL
$53.14¢26 571
1
#001
06410-KR3-620
DAMPER SET, WHEEL
$53.14¢26 571
1
#2
41200-KEN-670
SPROCKET, FINAL DRIVEN (33T)
$110.16¢55 079
1
#002
41200-KEN-670
SPROCKET, FINAL DRIVEN (33T)
$110.16¢55 079
1
#3
42301-KR3-601
AXLE, Rear WHEEL
$38.39¢19 194
1
#003
42301-KR3-601
AXLE, Rear WHEEL
$38.39¢19 194
1
#004
42312-KR3-000
COLLAR, RR. WHEEL SIDE
$17.87¢8 936
1
#4
42312-KR3-000
COLLAR, RR. WHEEL SIDE
$17.87¢8 936
1
#005
42610-KR3-405
SPOKE SET A, Rear. (B9X120.5) (INSIDE)
$8.71¢4 353
1
#5
42610-KR3-405
SPOKE SET A, Rear. (B9X120.5) (INSIDE)
$8.71¢4 353
1
#6
42611-KR3-405
SPOKE SET B, Rear. (B9X120) (OUTSIDE)
$8.71¢4 353
1
#006
42611-KR3-405
SPOKE SET B, Rear. (B9X120) (OUTSIDE)
$8.71¢4 353
1
#007
42615-KR3-620
FLANGE SUB-Assembly., Rear DRIVEN
$290.65¢145 326
1
#7
42615-KR3-620
FLANGE SUB-Assembly., Rear DRIVEN
$290.65¢145 326
1
#008
42620-KE1-000
COLLAR, RR. AXLE DISTANCE
$27.48¢13 742
1
#8
42620-KE1-000
COLLAR, RR. AXLE DISTANCE
$27.48¢13 742
1
#9
42625-KR3-000
COLLAR B, Rear AXLE DISTANCE
$25.12¢12 558
1
#009
42625-KR3-000
COLLAR B, Rear AXLE DISTANCE
$25.12¢12 558
1
#10
42635-KEN-A50
HUB SUB-Assembly., Rear.
$419.60¢209 800
1
#010
42635-KEN-A50
HUB SUB-Assembly., Rear.
$419.60¢209 800
1
#11
42650-KEN-A51
WHEEL SUB-Assembly., Rear.
$476.07¢238 033
1
#011
42650-KEN-A51
WHEEL SUB-Assembly., Rear.
$476.07¢238 033
1
#012
42701-KR3-023
RIM, Rear WHEEL
$101.76¢50 882
1
#12
42701-KR3-023
RIM, Rear WHEEL
$101.76¢50 882
1
#013
42711-KR3-U02
TIRE, RR. (130/90-15) (66P G508) (BS)
$191.98¢95 991
1
#013
42711-KR3-J03
TIRE, RR. (130/90-15) (66P K627A) (DUNLOP)
$208.35¢104 173
1
#13
42711-KR3-U02
TIRE, RR. (130/90-15) (66P G508) (BS)
$191.98¢95 991
1
#13
42711-KR3-J03
TIRE, RR. (130/90-15) (66P K627A) (DUNLOP)
$208.35¢104 173
1
#013
42711-KR3-J04
TIRE (130/90-15)
$208.35¢104 173
1
#015
42713-KR3-003
FLAP, TIRE (2.75-15) (BS)
$8.65¢4 324
1
#15
42713-KR3-003
FLAP, TIRE (2.75-15) (BS)
$8.65¢4 324
1
#015
42713-KR3-004
FLAP, TIRE (2.75-15) (DUNLOP)
$8.65¢4 324
1
#15
42713-KR3-004
FLAP, TIRE (2.75-15) (DUNLOP)
$8.65¢4 324
1
#16
42705-MEG-003
WEIGHT, BALANCE (20G)
$9.02¢4 508
1
#16
42704-MEG-003
WEIGHT, BALANCE (15G)
$9.02¢4 508
1
#016
42705-MEG-003
WEIGHT, BALANCE (20G)
$9.02¢4 508
1
#016
42704-MEG-003
WEIGHT, BALANCE (15G)
$9.02¢4 508
1
#017
90304-GE8-003
NUT, U (10MM) (FUSE RASHI)
$4.09¢2 047
1
#17
90304-GE8-003
NUT, U (10MM) (FUSE RASHI)
$4.09¢2 047
1
#018
90306-371-003
NUT, TIRE VALVE
$4.21¢2 105
1
#18
90306-371-003
NUT, TIRE VALVE
$4.21¢2 105
1
#019
91051-KEB-G01
BEARING, RADIAL BALL (6202U) (FUJIKOSHI)
$13.10¢6 549
1
#19
91051-KEB-G01
BEARING, RADIAL BALL (6202U) (FUJIKOSHI)
$13.10¢6 549
1
#20
91257-230-005
OIL SEAL (28X42X7) (NOK)
$11.82¢5 911
1
#020
91257-230-005
OIL SEAL (28X42X7) (NOK)
$11.82¢5 911
1
#20
91257-230-000
OIL SEAL (28X42X7)
$11.82¢5 911
1
#020
91257-230-000
OIL SEAL (28X42X7)
$11.82¢5 911
1
#20
91257-230-003
OIL SEAL (28X42X7) (ARAI)
$11.82¢5 911
1
#020
91257-230-003
OIL SEAL (28X42X7) (ARAI)
$11.82¢5 911
1
#21
91304-704-000
O-RING (42MM)
$3.58¢1 788
1
#021
91304-704-000
O-RING (42MM)
$3.58¢1 788
1
#022
92716-10045-0E
BOLT, STUD (10X45)
$3.27¢1 633
1
#22
92716-10045-0E
BOLT, STUD (10X45)
$3.27¢1 633
1
#023
96150-63020-10
BEARING, RADIAL BALL (6302UU)
$16.53¢8 263
1
#23
96140-63020-10
BEARING, RADIAL BALL (6302U)
$16.53¢8 263
1
#023
96140-63020-10
BEARING, RADIAL BALL (6302U)
$16.53¢8 263
1
#23
96150-63020-10
BEARING, RADIAL BALL (6302UU)
$16.53¢8 263
1
#024
96150-60040-10
BEARING, RADIAL BALL (6004UU)
$18.96¢9 482
1
#24
96150-60040-10
BEARING, RADIAL BALL (6004UU)
$18.96¢9 482
1
#026
04401-KEN-A91
TUBE SET (130/90-15) (BS)
No Disponible
1
#26
04401-KEN-A92
TUBE SET (130/90-15) (DUNLOP)
$61.18¢30 590
1
#026
04401-KEN-A92
TUBE SET (130/90-15) (DUNLOP)
$61.18¢30 590
1
#26
04401-KEN-A91
TUBE SET (130/90-15) (BS)
No Disponible
1
