SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

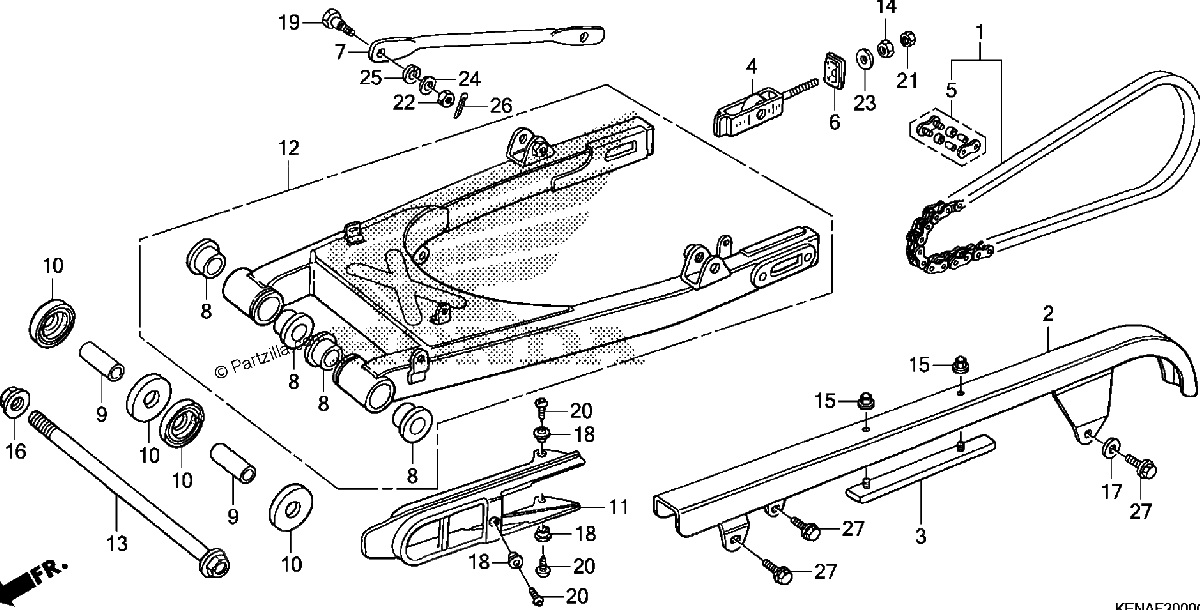

Diagrama de SWINGARM

Repuestos

#1
40540-KPM-305
CHAIN, DRIVE (DID520V-120ZB) (DAIDO) (STANDARD LINK 108L)
$225.22¢112 608
1
#1
40540-KCN-306
CHAIN, DRIVE(RK EXCEL) (RK520MOZ9-120LJ.FZ)
$214.66¢107 330
1
#001
40540-KPM-305
CHAIN, DRIVE (DID520V-120ZB) (DAIDO) (STANDARD LINK 108L)
$225.22¢112 608
1
#001
40540-KCN-306
CHAIN, DRIVE(RK EXCEL) (RK520MOZ9-120LJ.FZ)
$214.66¢107 330
1
#2
40510-KR3-600
CASE, DRIVE CHAIN
$154.81¢77 407
1
#002
40510-KR3-600
CASE, DRIVE CHAIN
$154.81¢77 407
1
#003
40515-KR3-700
SLIDER, CHAIN CASE
$28.04¢14 018
1
#3
40515-KR3-700
SLIDER, CHAIN CASE
$28.04¢14 018
1
#4
40543-KR3-000
ADJUSTER, CHAIN
$34.86¢17 428
1
#004
40543-KR3-000
ADJUSTER, CHAIN
$34.86¢17 428
1
#005
40545-KCN-306
MASTER LINK (RK EXCEL)
$12.05¢6 026
1
#5
40545-KCN-306
MASTER LINK (RK EXCEL)
$12.05¢6 026
1
#005
40545-KPM-305
MASTER LINK (DAIDO)
$11.05¢5 526
1
#5
40545-KPM-305
MASTER LINK (DAIDO)
$11.05¢5 526
1
#006
40546-KK6-000
CAP, SWINGARM END
$19.66¢9 833
1
#6
40546-KK6-000
CAP, SWINGARM END
$19.66¢9 833
1
#7
43431-KB2-000ZC
ARM, Rear BRAKE STOPPER NH1 (BLACK)
$26.30¢13 150
1
#007
43431-KB2-000ZC
ARM, Rear BRAKE STOPPER NH1 (BLACK)
$26.30¢13 150
1
#008
52109-KC1-003
BUSH, SWINGARM
$22.94¢11 471
1
#8
52108-356-006
BUSH, SWINGARM
$22.94¢11 471
1
#8
52109-KC1-003
BUSH, SWINGARM
$22.94¢11 471
1
#008
52108-356-006
BUSH, SWINGARM
$22.94¢11 471
1
#9
52141-356-010
COLLAR, Right SWINGARM
$102.91¢51 457
1
#009
52141-356-010
COLLAR, Right SWINGARM
$102.91¢51 457
1
#010
52144-268-000
CAP, DUST SEAL
$18.63¢9 315
1
#10
52144-268-000
CAP, DUST SEAL
$18.63¢9 315
1
#10
52144-286-000
CAP, DUST SEAL
$18.63¢9 315
1
#010
52144-286-000
CAP, DUST SEAL
$18.63¢9 315
1
#010
52144-329-000
CAP, DUST SEAL
$18.63¢9 315
1
#10
52144-329-000
CAP, DUST SEAL
$18.63¢9 315
1
#10
52144-356-003
CAP, SWINGARM DUST SEAL (ARAI)
$18.63¢9 315
1
#010
52144-356-003
CAP, SWINGARM DUST SEAL (ARAI)
$18.63¢9 315
1
#10
52144-356-005
CAP, SWINGARM DUST SEAL (NOK)
$18.63¢9 315
1
#010
52144-356-005
CAP, SWINGARM DUST SEAL (NOK)
$18.63¢9 315
1
#11
52170-KR3-601
SLIDER, DRIVE CHAIN
$46.71¢23 356
1
#011
52170-KR3-601
SLIDER, DRIVE CHAIN
$46.71¢23 356
1
#012
52200-KR3-316ZA
SWINGARM SET NH1 (BLACK)
$354.35¢177 175
1
#12
52200-KR3-316ZA
SWINGARM SET NH1 (BLACK)
$354.35¢177 175
1
#13
90121-KR3-600
BOLT, SWINGARM PIVOT
$44.30¢22 149
1
#013
90121-KR3-600
BOLT, SWINGARM PIVOT
$44.30¢22 149
1
#14
90302-KBP-900
NUT, SPECIAL (6MM)
$2.42¢1 208
1
#014
90302-KBP-900
NUT, SPECIAL (6MM)
$2.42¢1 208
1
#15
90303-GC2-630
NUT, FLANGE CAP (5MM)
$3.85¢1 926
1
#015
90303-GC2-630
NUT, FLANGE CAP (5MM)
$3.85¢1 926
1
#16
90305-GE8-003
NUT, U (14MM)
$4.30¢2 151
1
#016
90305-GE8-003
NUT, U (14MM)
$4.30¢2 151
1
#17
90545-323-700
WASHER (6.5X18)
$2.36¢1 179
1
#017
90545-323-700
WASHER (6.5X18)
$2.36¢1 179
1
#018
90556-KR3-000
WASHER, CHAIN SLIDER
$3.66¢1 829
1
#18
90556-KR3-000
WASHER, CHAIN SLIDER
$3.66¢1 829
1
#019
92812-10000
BOLT A, STOPPER ARM
$3.36¢1 679
1
#19
92812-10000
BOLT A, STOPPER ARM
$3.36¢1 679
1
#20
93901-25080
SCREW, TAPPING (5X8)
$1.07¢535
1
#020
93901-25080
SCREW, TAPPING (5X8)
$1.07¢535
1
#21
94001-06200-0S
NUT, HEX. (6MM)
$1.54¢771
1
#021
94001-06000-0S
NUT, HEX. (6MM)
$1.54¢771
1
#021
94001-06200-0S
NUT, HEX. (6MM)
$1.54¢771
1
#21
94001-06000-0S
NUT, HEX. (6MM)
$1.54¢771
1
#022
94001-08000-0S
NUT, HEX. (8MM)
$1.54¢771
1
#22
94001-08000-0S
NUT, HEX. (8MM)
$1.54¢771
1
#23
94101-06080
WASHER, PLAIN (6MM)
$0.77¢385
1
#023
94101-06800
WASHER, PLAIN (6MM)
$0.77¢385
1
#23
94101-06800
WASHER, PLAIN (6MM)
$0.77¢385
1
#023
94101-06080
WASHER, PLAIN (6MM)
$0.77¢385
1
#023
94101-06000
WASHER, PLAIN (6MM)
$0.77¢385
1
#23
94101-06000
WASHER, PLAIN (6MM)
$0.77¢385
1
#24
94101-08000
WASHER, PLAIN (8MM)
$0.98¢489
1
#024
94101-08000
WASHER, PLAIN (8MM)
$0.98¢489
1
#25
94111-10000
WASHER, SPRING (10MM)
$1.51¢753
1
#025
94111-10000
WASHER, SPRING (10MM)
$1.51¢753
1
#26
94201-20150
PIN, SPLIT (2.0X15)
$1.23¢615
1
#026
94201-20150
PIN, SPLIT (2.0X15)
$1.23¢615
1
#027
96001-06008-02
BOLT, FLANGE (6X8)
$1.83¢914
1
#27
96001-06008-02
BOLT, FLANGE (6X8)
$1.83¢914
1
