FINAL DRIVEN GEAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

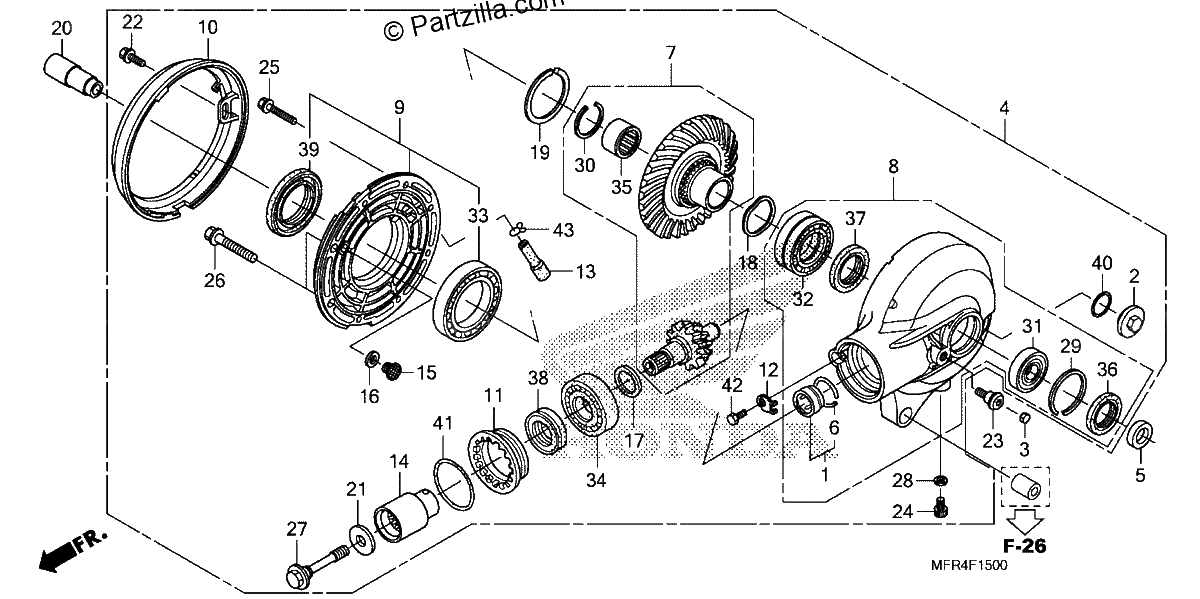

Diagrama de FINAL DRIVEN GEAR

Repuestos

#001
06910-MFR-670
BEARING SET, NEEDLE
$27.78¢13 892
1
#002
12361-035-000
CAP, TAPPET ADJUSTING HOLE
$11.51¢5 756
1
#002
12361-300-000
CAP, VALVE ADJ.
No Disponible
1
#002
12361-371-980
CAP, VALVE ADJ.
No Disponible
1
#003
12392-MJ0-000
PLUG, HEX. (6MM)
$5.04¢2 519
1
#004
41300-MFR-670
GEAR ASSY., FINAL
No Disponible
1
#004
41300-MFR-680
GEAR ASSY., FINAL
$2167.16¢1 083 582
1
#005
41302-MFR-670
COLLAR, GEAR CASE SIDE
$9.76¢4 882
1
#006
41305-MB4-770
RING, STOPPER
$6.66¢3 329
1
#007
41310-MFR-670
GEAR SET, FINAL
$473.97¢236 986
1
#008
41311-MFR-670
CASE SUB-ASSY., FINAL GEAR
$1268.92¢634 461
1
#008
41311-MFR-680
CASE SUB-ASSY., FINAL GEAR
$1221.74¢610 869
1
#009
41320-MFR-670
COVER SUB-ASSY., FINAL GEAR
$250.14¢125 068
1
#010
41324-MFR-670
PLATE, DUST GUARD
$102.27¢51 135
1
#010
41324-MFR-680
PLATE, DUST GUARD
$98.39¢49 197
1
#011
41331-MN5-000
RETAINER, BEARING
$136.61¢68 304
1
#012
41333-415-000
LOCK B, BEARING ADJUSTING (DOUBLE TABS)
$2.98¢1 489
1
#012
41332-415-000
LOCK A, BEARING ADJUSTING (SINGLE TAB)
$2.98¢1 489
1
#013
41391-MFR-670
TUBE, FINAL GEAR BREATHER
$4.78¢2 392
1
#014
41410-ME9-770
JOINT, PINION
$173.30¢86 652
1
#015
41436-MB0-310
PIN, RING GEAR STOPPER
$37.80¢18 900
1
#016
41437-MB0-310
SHIM A, STOPPER PIN (0.10)
$6.27¢3 134
1
#016
41438-MB0-310
SHIM B, STOPPER PIN (0.15)
$5.73¢2 864
1
#017
41453-MG9-000
SHIM D, PINION GEAR (1.50)
$8.50¢4 249
1
#017
41450-MG9-000
SHIM A, PINION GEAR (1.32)
$8.50¢4 249
1
#017
41451-MG9-000
SHIM B, PINION GEAR (1.38)
$8.50¢4 249
1
#017
41452-MG9-000
SHIM C, PINION GEAR (1.44)
$8.50¢4 249
1
#017
41454-MG9-000
SHIM E, PINION GEAR (1.56)
$8.50¢4 249
1
#017
41455-MG9-000
SHIM F, PINION GEAR (1.62)
$8.50¢4 249
1
#017
41456-MG9-000
SHIM G, PINION GEAR (1.68)
$8.50¢4 249
1
#018
41510-MFR-670
WASHER, SPECIAL (46X54)
$11.97¢5 986
1
#019
41537-MG9-000
SPACER H, RING GEAR (2.24)
$15.06¢7 532
1
#019
41535-MG9-000
SPACER F, RING GEAR (2.12)
$14.35¢7 176
1
#019
41538-MG9-000
SPACER I, RING GEAR (2.30)
$15.06¢7 532
1
#019
41536-MG9-000
SPACER G, RING GEAR (2.18)
$14.35¢7 176
1
#019
41531-MG9-000
SPACER B, RING GEAR (1.88)
$15.06¢7 532
1
#019
41534-MG9-000
SPACER E, RING GEAR (2.06)
$14.86¢7 429
1
#019
41533-MG9-000
SPACER D, RING GEAR (2.00)
$15.06¢7 532
1
#019
41532-MG9-000
SPACER C, RING GEAR (1.94)
$15.06¢7 532
1
#019
41530-MG9-000
SPACER A, RING GEAR (1.82)
$15.06¢7 532
1
#020
42625-MFR-670
COLLAR B, RR. AXLE DISTANCE
$90.85¢45 425
1
#021
44313-HP2-670
WASHER, FR. HUB
$1.71¢857
1
#022
90013-883-000
BOLT, FLANGE (6X12) (CT200)
$1.75¢874
1
#023
90107-MFR-670
BOLT, SOCKET (8X16)
$10.33¢5 164
1
#024
90109-ME5-770
BOLT, SOCKET (8X11)
$6.39¢3 197
1
#025
90133-MCA-000
BOLT, FLANGE (8X30)
$0.93¢466
1
#026
90134-MCA-000
BOLT, FLANGE (10X38)
$2.94¢1 472
1
#027
90138-MFR-670
BOLT, PINION JOINT
$22.11¢11 057
1
#028
90471-580-000
GASKET (8MM)
$3.36¢1 679
1
#029
90651-MFR-670
CIRCLIP (INNER) (52MM)
$3.84¢1 920
1
#030
90652-MFR-670
CIRCLIP (INNER) (45MM)
$3.89¢1 943
1
#031
91051-MFR-671
BEARING, RADIAL BALL (30X52X9)
$25.71¢12 857
1
#032
91052-MFR-671
BEARING, RADIAL BALL (45X68X19)
$69.55¢34 776
1
#033
91053-MCH-003
BEARING, RADIAL BALL (65X100X14)
$59.41¢29 704
1
#034
91061-MT3-003
BEARING, RADIAL BALL (QJ3/28V1)
$72.50¢36 248
1
#035
91071-MFR-671
BEARING, NEEDLE (35X45X24)
$30.07¢15 036
1
#036
91251-MFR-671
DUST SEAL (38X52X5)
$11.41¢5 704
1
#037
91252-MFR-671
OIL SEAL (45X55X6)
$13.35¢6 676
1
#038
91262-MCH-003
OIL SEAL (39X56X7)
$10.52¢5 261
1
#039
91265-MCH-003
OIL SEAL (65X85X7)
$10.32¢5 158
1
#040
91302-001-020
O-RING (30.8MM)
$4.17¢2 087
1
#041
91359-MG9-003
O-RING (64.5X3.5) (ARAI)
$5.04¢2 519
1
#042
92101-06012-0A
BOLT, HEX. (6X12)
$1.68¢839
1
#043
95002-02079
CLIP, TUBE (B7)
$1.41¢707
1
