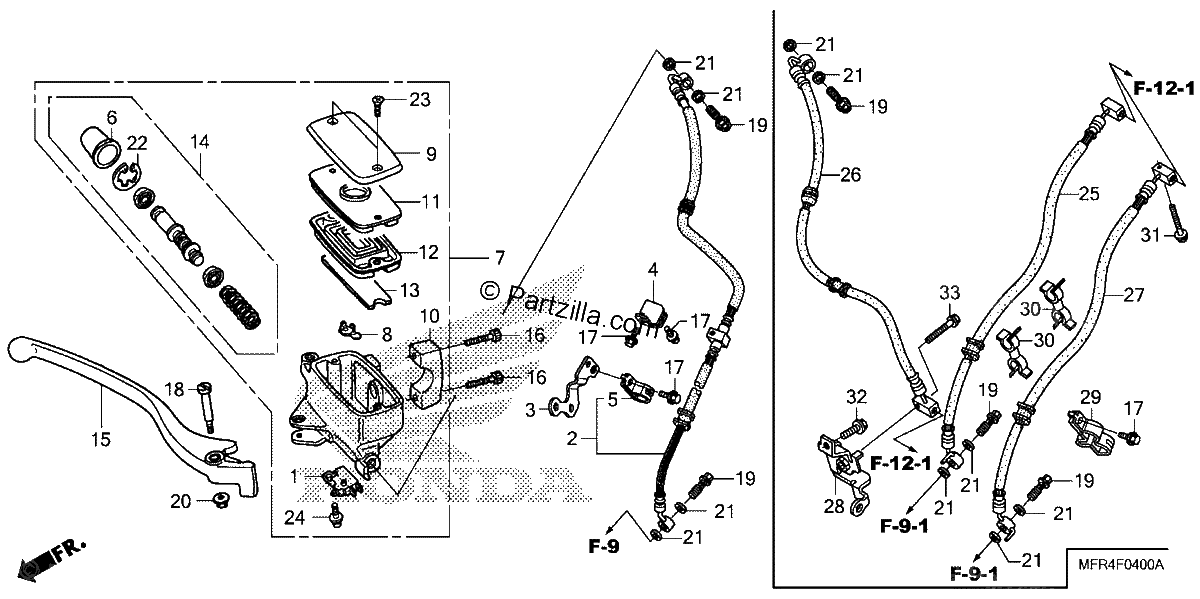

FRONT BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP
$25.14¢12 569
#002
HOSE, FR. BRAKE
$97.41¢48 706
#003
BRACKET, L. FR. BRAKE HOSE
$5.14¢2 569
#004
STAY, L. FR. BRAKE HOSE
$4.30¢2 150
#005
CLAMP, FR. BRAKE HOSE
$5.06¢2 531
#006
BOOT
$14.24¢7 119
#007
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)
$341.25¢170 625
#007
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)
$328.56¢164 281
#007
MASTER CYLINDER SUB-Assembly., Front BRAKE
$328.56¢164 281
#008
PROTECTOR
$5.20¢2 600
#009
CAP, MASTER CYLINDER (NISSIN)
$35.54¢17 769
#009
CAP, MASTER CYLINDER (NISSIN)
$26.02¢13 013
#010
HOLDER, MASTER CYLINDER (NISSIN)
$31.63¢15 813
#010
HOLDER, MASTER CYLINDER (NISSIN)
$24.05¢12 025
#011
PLATE, DIAPHRAGM
$12.36¢6 181
#012
DIAPHRAGM
$17.68¢8 838
#013
FLOAT, FR. MASTER CYLINDER (NISSIN)
$5.45¢2 725
#014
MASTER CYLINDER SET
$46.40¢23 200
#015
LEVER, R. HANDLE (COO)
$21.78¢10 888
#015
LEVER, Right HANDLE
$19.06¢9 531
#015
LEVER, R. HANDLE (COO)
$19.06¢9 531
#016
BOLT, SOCKET (6X22)
$1.86¢931
#017
BOLT, FLANGE (6X10)
$1.74¢869
#018
BOLT, HANDLE LEVER PIVOT
$11.03¢5 513
#019
BOLT, OIL (10X22)
$8.89¢4 444
#020
NUT, CAP (6MM)
$2.76¢1 381
#021
WASHER, OIL BOLT
$4.85¢2 425
#022
CIRCLIP
$3.10¢1 550
#023
SCREW, FLAT (4X12)
$1.16¢581
#023
SCREW, FLAT (4X12)
$0.80¢400
#023
SCREW, FLAT (4X12)
$1.16¢581
#024
SCREW-WASHER (4X12)
$1.72¢862
#024
SCREW-WASHER (4X12)
$1.72¢862
#025
HOSE C, SUB-BRAKE
$77.05¢38 525
#026
HOSE A, FR. BRAKE
$73.14¢36 569
#027
HOSE F, FR. BRAKE
$67.25¢33 625
#028
STAY, BRAKE JOINT
$18.85¢9 425
#029
CLAMP, FR. BRAKE HOSE
$11.57¢5 788
#030
CLIP, SENSOR HOSE
$4.22¢2 113
#030
CLIP, SENSOR HOSE
$4.22¢2 113
#031
BOLT, FLANGE (6X25)
$2.64¢1 319
#032
BOLT, FLANGE (6X12)
$1.85¢925
#033
BOLT, FLANGE (6X25)
$1.85¢925
