REAR SHOCK ABSORBER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

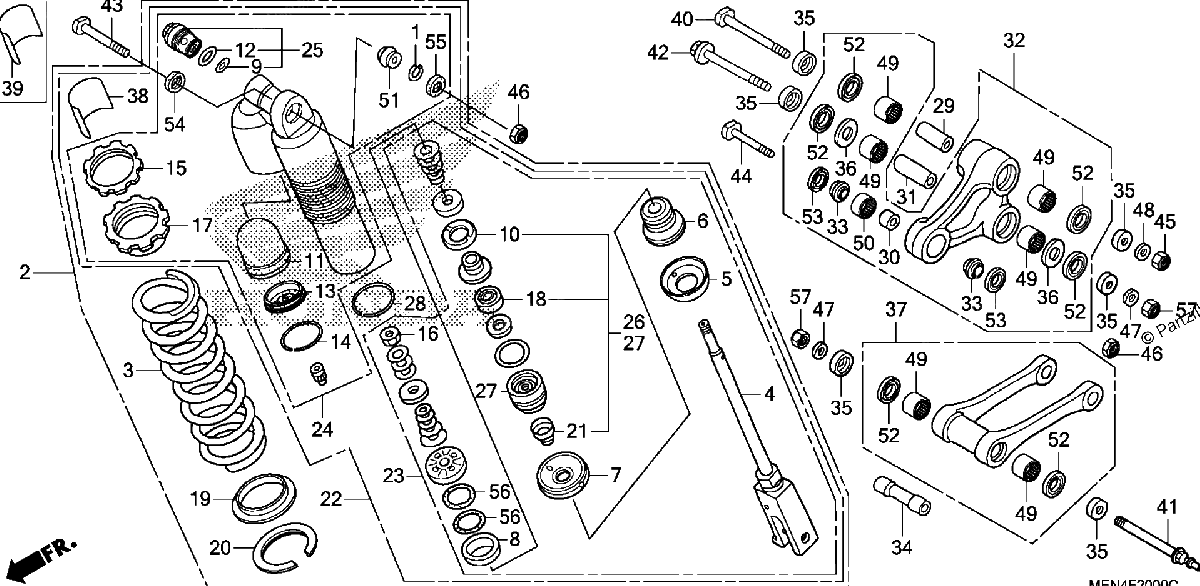

Diagrama de REAR SHOCK ABSORBER

Repuestos

#1
41405-HA7-670
RING, STOPPER
$3.65¢1 825
1
#2
52400-MEN-307
CUSHION ASSY., RR. (COO)
No Disponible
1
#3
52401-MEN-A31
SPRING, RR. SHOCK ABSORBER (54N/MM)
$259.18¢129 588
1
#3
52403-MEN-A31
SPRING, RR. SHOCK ABSORBER (56N/MM)
$270.86¢135 431
1
#3
52402-MEN-A31
SPRING, RR. SHOCK ABSORBER (52N/MM)
$251.68¢125 838
1
#4
52421-MEN-A41
ROD
$568.34¢284 169
1
#5
52422-MEN-A31
CAP, BUMPER RUBBER
$20.96¢10 481
1
#6
52423-MEN-A51
RUBBER, BUMPER
$19.01¢9 506
1
#7
52424-MEN-A31
CAP, CASE
$19.71¢9 856
1
#8
52428-MEN-A31
RING, PISTON
$18.38¢9 188
1
#9
52433-MAC-741
O-RING (21.5X1.5)
$4.46¢2 231
1
#10
52434-KSR-711
RUBBER, STOPPER
$4.97¢2 488
1
#11
52434-MEN-A51
BLADDER
$23.08¢11 538
1
#12
52435-MAC-741
O-RING (25.5X2.0)
$7.25¢3 625
1
#13
52435-MEN-A31
CAP, BLADDER
$41.68¢20 838
1
#14
52436-MEN-A31
RING, SNAP
$4.01¢2 006
1
#15
52437-MEN-A31
NUT, ADJUST
$10.19¢5 094
1
#16
52438-KA3-731
NUT, HEX. (12MM)
$4.39¢2 194
1
#17
52438-MEN-A31
SEAT, SPRING (UPPER)
$16.57¢8 288
1
#18
52439-KSR-711
OIL SEAL
$15.08¢7 538
1
#19
52439-MEN-A31
WASHER, SPRING SEAT
$10.82¢5 413
1
#20
52440-MEN-A31
SEAT, SPRING (LOWER)
$38.14¢19 069
1
#21
52441-MEN-A31
DUST SEAL
$7.25¢3 625
1
#22
52410-MEN-305
DAMPER, RR. (COO)
$1372.24¢686 119
1
#23
52420-MEN-A61
ROD, PISTON
$770.20¢385 100
1
#24
52425-MEN-A61
CASE, RR.
$1326.86¢663 431
1
#25
52486-MEN-A61
ADJUSTER, COMPRESSION DAMPING FORCE
$130.39¢65 194
1
#26
52446-MEN-A31
OIL SEAL SET
$27.24¢13 619
1
#27
52447-MEN-A31
CASE ASSY., ROD GUIDE
$99.86¢49 931
1
#28
52448-MEN-A31
RING, SNAP
$3.65¢1 825
1
#29
52463-KZ4-J40
COLLAR C, CUSHION ARM
$6.90¢3 450
1
#30
52464-KRN-710
COLLAR D, CUSHION ARM
$11.99¢5 994
1
#31
52464-MEN-A30
COLLAR B, CUSHION
$9.75¢4 875
1
#32
52465-MEN-A60
ARM SUB-ASSY., CUSHION
No Disponible
1
#33
52466-KRN-710
COLLAR D, CUSHION ARM SIDE
$4.71¢2 356
1
#34
52473-MEN-A30
COLLAR, CONNECTING ROD
$20.58¢10 288
1
#35
52475-KZ4-J20
COLLAR, LINK SIDE
$8.22¢4 113
1
#36
52476-KZ4-J20
WASHER, THRUST
$6.29¢3 144
1
#37
52479-MEN-A60
ROD SUB-ASSY., CUSHION CONNECTING
No Disponible
1
#38
87516-KZ1-600
LABEL, RR. DAMPER WARNING
$8.66¢4 331
1
#39
91351-KRN-711
DUST SEAL (17.5X26X3)
$3.65¢1 825
1
#40
90130-MEN-840
BOLT, LINK (12X82)
$13.26¢6 631
1
#41
90131-MEN-A30
BOLT, LINK (12X116)
$17.30¢8 650
1
#42
90132-MEN-A30
BOLT, LINK (12X87)
$13.65¢6 825
1
#43
90152-MEB-750
BOLT, CUSHION (UPPER) (10X53)
$3.65¢1 825
1
#44
90153-KZ4-710
BOLT, CUSHION (LOWER) (10X43.5)
$10.53¢5 263
1
#45
90305-KRN-A30
NUT, U (12MM)
$6.29¢3 144
1
#46
90306-KZ4-711
NUT, U (10MM)
$4.54¢2 269
1
#47
90501-KRN-710
WASHER, PLAIN (12MM)
$4.79¢2 394
1
#48
90501-KZ4-J40
WASHER, PLAIN (12MM)
$2.88¢1 438
1
#49
91051-KSC-003
BEARING, NEEDLE (20X26X15)
$10.28¢5 138
1
#50
91074-KRN-711
BEARING, NEEDLE (19X26X13)
$9.95¢4 975
1
#51
91074-MAC-741
BEARING, SPHERICAL (10)
$40.66¢20 331
1
#52
91262-KZ3-731
DUST SEAL (25X32X4)
$9.10¢4 550
1
#54
91351-KZ3-731
DUST SEAL, RR. CUSHION PIVOT
$5.91¢2 956
1
#55
91351-MAC-671
DUST SEAL (16X26X3)
$6.72¢3 363
1
#56
91351-MEN-A31
O-RING
$3.55¢1 775
1
#57
90306-KBP-901
NUT, U (12MM)
$10.65¢5 325
1
