MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

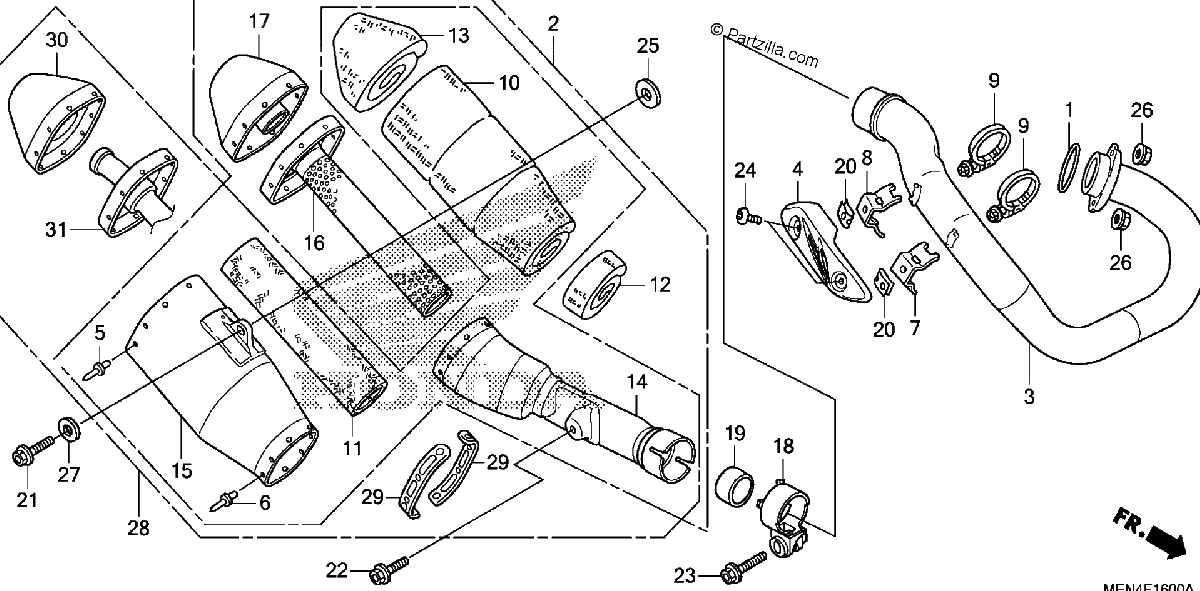

Diagrama de MUFFLER

Repuestos

#1
18291-MEB-670
GASKET, EX. PIPE
$5.49¢2 743
1
#3
18320-MEN-A50
PIPE, EX.
No Disponible
1
#4
18323-MEN-A30
PROTECTOR, EX. PIPE
$97.20¢48 599
1
#5
18324-MEB-670
RIVET, BLIND (4.8)
$1.26¢633
1
#6
18326-KRN-A00
RIVET, BLIND (3.2)
$1.47¢736
1
#7
18327-MEN-A30
STAY, EX. PIPE PROTECTOR
$6.99¢3 496
1
#8
18328-MEN-A30
STAY, RR. EX. PIPE PROTECTOR
$6.99¢3 496
1
#9
18329-MEN-A30
BAND, EX PROTECTOR
$17.51¢8 757
1
#10
18334-MEN-A50
PACK A, GLASS WOOL
$159.98¢79 988
1
#11
18336-MEN-A51
WOOL, SUS
$256.45¢128 225
1
#13
18339-MEN-A30
WOOL, TAIL GLASS
$28.07¢14 036
1
#14
18360-MEN-305
MUFFLER, FR. (COO)
$609.33¢304 664
1
#15
18361-MEN-305
BODY, MUFFLER (COO)
$693.13¢346 564
1
#18
18375-MEN-A30
BAND, MUFFLER JOINT
$21.41¢10 707
1
#19
18391-ML0-003
GASKET, MUFFLER
$31.29¢15 646
1
#20
19508-KA3-710
NUT, SPRING (6MM)
$6.39¢3 197
1
#21
90101-KZ3-J50
BOLT, FLANGE (8X24)
$3.15¢1 576
1
#22
90123-MEN-730
BOLT (8X18)
$2.33¢1 167
1
#23
90124-MEN-A00
BOLT (8X30)
$3.10¢1 553
1
#24
90170-MEB-670
BOLT, SPECIAL (6MM)
$2.13¢1 064
1
#25
90514-MEN-730
WASHER, RR. MUFFLER
$3.54¢1 771
1
#26
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#27
94103-08000
WASHER, PLAIN (8MM)
$0.77¢385
1
#28
18310-MEN-316
MUFFLER (COO)
$1821.16¢910 581
1
#29
18317-MEN-A50
BAND, MUFFLER BODY
$36.03¢18 015
1
#30
18318-MEN-305
COVER, END (COO)
$196.20¢98 101
1
#31
18362-MEN-A51
SEPARATOR
$133.37¢66 683
1
