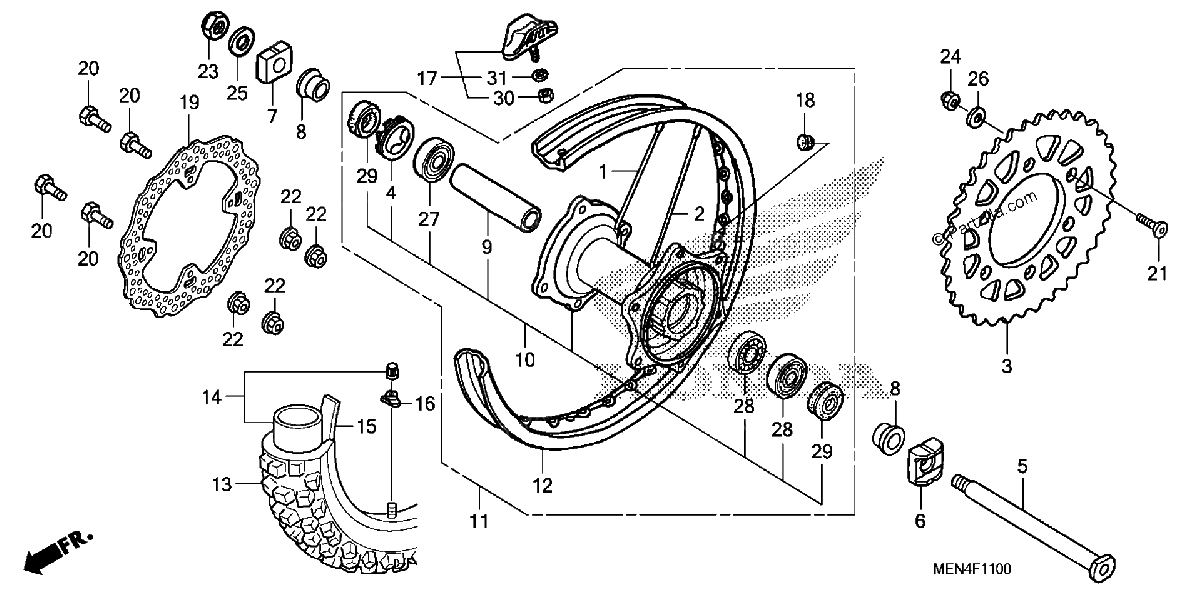

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SPOKE SET, RR.
$4.76¢2 381
#2
SPOKE SET, RR.
$4.76¢2 381
#3
SPROCKET, FINAL DRIVEN (49T)
$158.14¢79 069
#3
SPROCKET, FINAL DRIVEN (48T)
$158.14¢79 069
#3
SPROCKET, FINAL DRIVEN (47T)
$175.29¢87 644
#4
RETAINER, RR. WHEEL BEARING
$22.38¢11 188
#5
AXLE, RR. WHEEL
$54.99¢27 494
#6
COLLAR, L. RR. AXLE
$24.81¢12 406
#7
COLLAR, R. RR. AXLE
$22.38¢11 188
#8
COLLAR, RR. WHEEL SIDE
$26.70¢13 350
#9
COLLAR, RR. WHEEL DISTANCE
$32.44¢16 219
#10
HUB SUB-ASSY., RR.
$419.13¢209 563
#11
WHEEL SUB-ASSY., RR.
No Disponible
#12
RIM, RR. WHEEL (19X2.15)
$537.08¢268 538
#13
TIRE, RR. (120/80-19 63M) (DUNLOP)
No Disponible
#14
TUBE, TIRE (DUNLOP)
$55.03¢27 513
#15
FLAP, TIRE (DUNLOP)
$7.16¢3 581
#16
CAP, VALVE
$12.15¢6 075
#17
STOPPER, BEAD (2.15)
$43.98¢21 988
#18
CAP, RIM HOLE
$5.09¢2 544
#19
DISK, RR. BRAKE
$278.89¢139 444
#20
BOLT, DISK (6X19)
$6.05¢3 025
#21
SCREW, FLAT (8X31)
$3.74¢1 869
#22
NUT, U (6MM) (FUSE RASHI)
$4.94¢2 469
#23
NUT, U (22MM)
$10.48¢5 238
#24
NUT, U (8MM) (FUSE RASHI)
$5.29¢2 644
#25
WASHER (22X35X2)
$3.65¢1 825
#26
WASHER (8MM)
$3.24¢1 619
#27
BEARING, RADIAL BALL (69052RS)
$21.39¢10 694
#28
BEARING, RADIAL BALL (6905RS)
$20.15¢10 075
#29
DUST SEAL (32X43X7)
$5.99¢2 994
#30
NUT, HEX. (8MM)
$1.68¢838
#31
WASHER, SPRING (8MM)
$1.21¢606
