SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

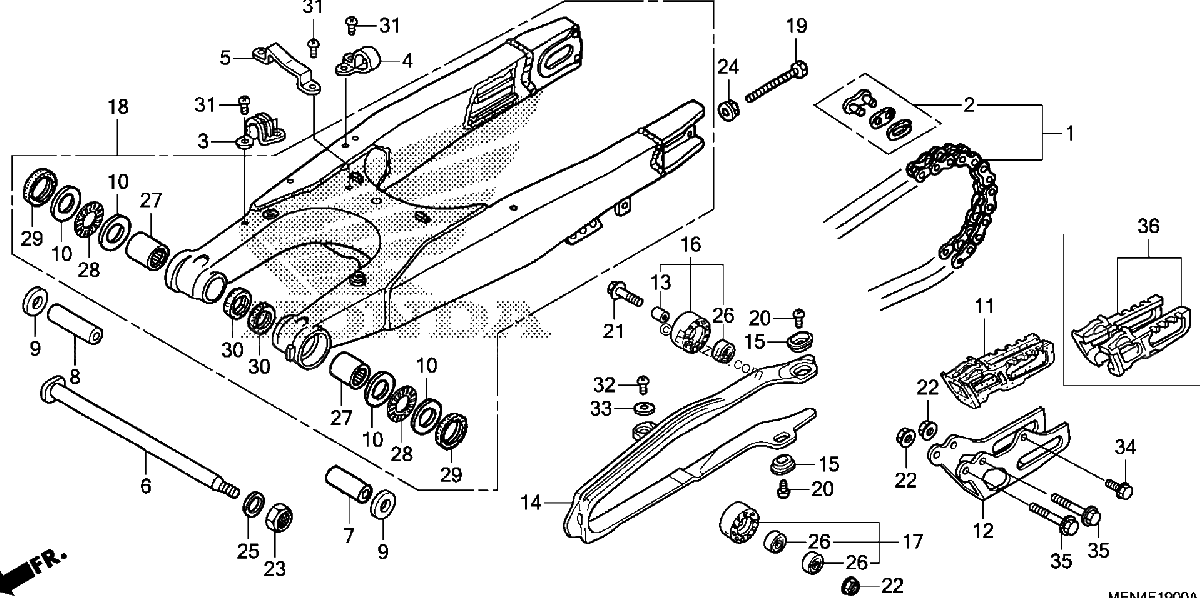

Diagrama de SWINGARM

Repuestos

#1
40530-MEN-A31
CHAIN, DRIVE (DID520DMA4-116RB) (DAIDO)
$203.84¢101 919
1
#1
40530-MEN-A32
CHAIN, DRIVE (RK520TXZ-116RJ) (RK EXCEL)
$203.84¢101 919
1
#1
40540-KRN-A31
CHAIN, DRIVE (DID520DMA4-120RB) (DAIDO)
$280.23¢140 113
1
#1
40540-KRN-A32
CHAIN, DRIVE (RK520TXZ-120RJ) (RK EXCEL)
$264.26¢132 131
1
#2
40531-KRN-A12
MASTER LINK (RK EXCEL)
$10.10¢5 050
1
#2
40531-KRN-A31
MASTER LINK (DAIDO)
$10.14¢5 069
1
#3
43468-MCJ-000
GUIDE, BRAKE HOSE
$10.76¢5 381
1
#4
43468-MEB-000
GUIDE, RR. BRAKE HOSE
$4.68¢2 338
1
#5
43469-MEB-000
GUIDE, BRAKE HOSE
$5.64¢2 819
1
#6
52101-KZ4-J40
SHAFT, SWINGARM PIVOT
$29.70¢14 850
1
#7
52141-MEN-710
COLLAR, SWINGARM (46MM)
$29.24¢14 619
1
#8
52142-KZ4-J40
COLLAR, SWINGARM SIDE (54MM)
$19.63¢9 813
1
#9
52143-KZ4-J40
COLLAR, SWINGARM PIVOT SIDE
$4.97¢2 488
1
#10
52143-MEN-A30
WASHER, SWINGARM SIDE THRUST
$2.48¢1 238
1
#12
52147-MEN-J00
PLATE, CHAIN GUIDE
$55.03¢27 513
1
#13
52160-MEN-000
COLLAR, CHAIN TENSIONER
$3.50¢1 750
1
#14
52170-MEN-A50
SLIDER, CHAIN
$107.79¢53 894
1
#15
52171-KR6-000
WASHER, CHAIN SLIDER
$3.33¢1 663
1
#16
52175-MEN-A30
ROLLER, CHAIN (38MM)
No Disponible
1
#17
52176-KRN-A30
ROLLER, CHAIN (LOWER) (34MM)
$53.65¢26 825
1
#18
52200-MEN-A50
SWINGARM SUB-ASSY., RR.
No Disponible
1
#19
90105-MEN-000
BOLT, HEX. (8X47.5)
$3.65¢1 825
1
#20
90115-KV3-700
SCREW, PAN (5X8)
$3.36¢1 681
1
#21
90124-MEB-770
BOLT, FLANGE (8X32)
$2.63¢1 313
1
#22
90301-473-003
NUT, U (6MM) (FUSE RASHI)
$4.94¢2 469
1
#23
90305-KZ3-B01
NUT, U HEX. (14MM)
$7.05¢3 525
1
#24
90309-357-000
NUT, HEX. (8MM)
$4.13¢2 063
1
#25
90501-GAH-000
WASHER (26X14X2.8)
$8.05¢4 025
1
#25
90501-GBL-730
WASHER (14MM)
$8.05¢4 025
1
#26
91051-KRN-A31
BEARING, RADIAL BALL (608UU)
$17.07¢8 538
1
#27
91071-MJ0-003
BEARING, NEEDLE (22X29X30) (NTN)
$50.32¢25 162
1
#28
91072-KZ3-861
BEARING, NEEDLE THRUST
$15.63¢7 813
1
#29
91253-KZ3-861
DUST SEAL (30X37X4)
$10.15¢5 075
1
#30
91283-ML7-003
DUST SEAL (22X29X4) (ARAI)
$7.18¢3 588
1
#31
93500-05008-0A
SCREW, PAN (5X8)
$1.13¢563
1
#32
93500-05008-0G
SCREW, PAN (5X8)
$1.16¢581
1
#33
94103-05700
WASHER, PLAIN (5MM)
$1.21¢606
1
#34
90101-MEN-A60
BOLT (6X12)
$2.82¢1 412
1
#35
90103-MEN-A60
BOLT (6X45)
$4.00¢2 000
1
#36
52146-MEN-A50
GUIDE SET, CHAIN
$46.64¢23 319
1
