AIR CLEANER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

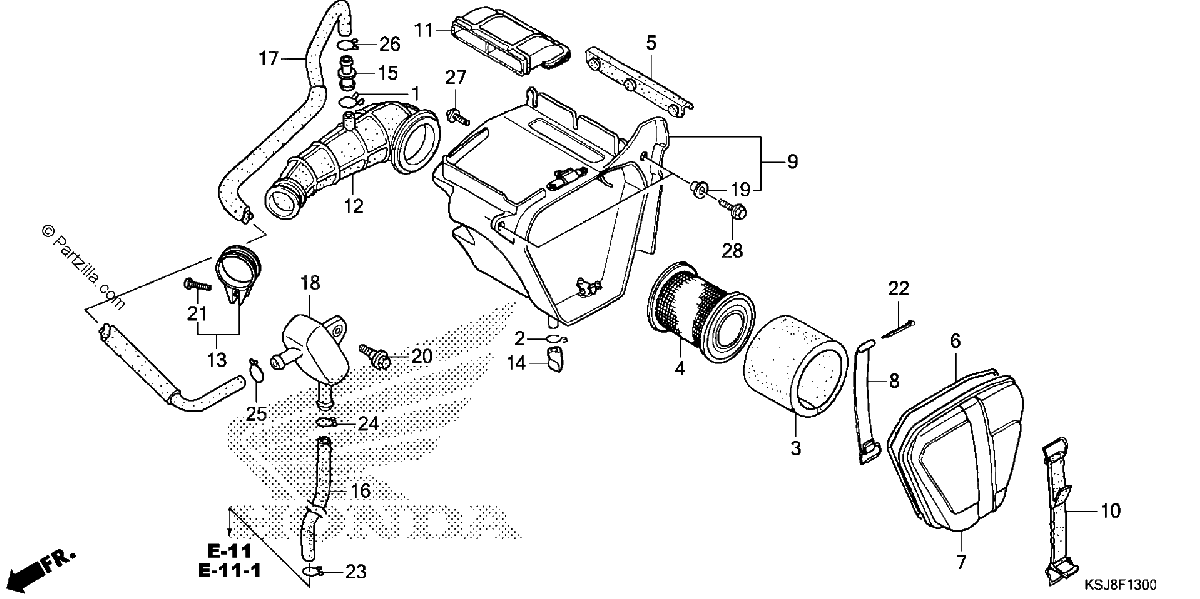

Diagrama de AIR CLEANER

Repuestos

#1
15771-KV6-000
CLIP, OIL DRAIN TUBE
$4.53¢2 263
1
#2
15772-292-010
CLIP, BREATHER TUBE
$3.65¢1 825
1
#3
17211-GN1-760
ELEMENT, AIR CLEANER
$11.14¢5 569
1
#3
17254-HF7-000
AIR CLEANER
$11.14¢5 569
1
#4
17212-KJ2-003
HOLDER, AIR CLEANER ELEMENT
$58.49¢29 244
1
#5
17215-GN1-000
SPLASH GUARD, AIR CLEANER
$14.65¢7 325
1
#6
17219-GN1-000
SEAL, AIR CLEANER COVER
$8.86¢4 431
1
#6
17222-MN4-405
SEAL, AIR CLEANER COVER
$8.86¢4 431
1
#7
17220-GN1-760
COVER, AIR CLEANER
$31.00¢15 500
1
#8
17225-GN1-000
SPRING
$10.45¢5 225
1
#9
17230-KN4-A60
HOUSING, AIR CLEANER
$78.56¢39 281
1
#10
17235-GN1-680
BAND, AIR CLEANER COVER
$13.95¢6 975
1
#11
17240-KB7-000
DUCT, AIR IN.
$46.70¢23 350
1
#12
17253-GN1-A40
TUBE, AIR CLEANER CONNECTING
$28.42¢14 212
1
#13
17255-GN1-000
BAND, AIR CLEANER CONNECTING TUBE
$9.65¢4 825
1
#14
17358-170-000
TUBE, DRAIN
$4.54¢2 269
1
#15
17359-428-000
JOINT, BREATHER TUBE
$6.61¢3 306
1
#16
17371-GN1-A41
TUBE A, BREATHER
$6.21¢3 106
1
#17
17372-GN1-A40
TUBE B, BREATHER
$12.07¢6 038
1
#18
17551-GCF-A20
TANK, STORAGE
$31.76¢15 881
1
#19
61107-KK6-000
WASHER (6MM)
$3.71¢1 856
1
#20
90111-ML0-730
BOLT, FLANGE (6MM)
$4.56¢2 281
1
#21
93500-04020-0G
SCREW, PAN (4X20)
$1.00¢500
1
#22
94201-30450
PIN, SPLIT (3.0X45)
$1.27¢638
1
#23
95002-02100
CLIP, TUBE (B10)
$2.44¢1 219
1
#24
95002-02120
CLIP, TUBE (B12)
$2.39¢1 194
1
#25
95002-50000
CLIP, TUBE (C9)
$1.54¢769
1
#26
95002-80000
CLIP, TUBE (C12)
$0.60¢300
1
#27
95701-06012-00
BOLT, FLANGE (6X12)
$2.09¢1 044
1
#28
95701-06014-07
BOLT, FLANGE (6X14)
$1.77¢888
1
