CARBURETOR CRF80F

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

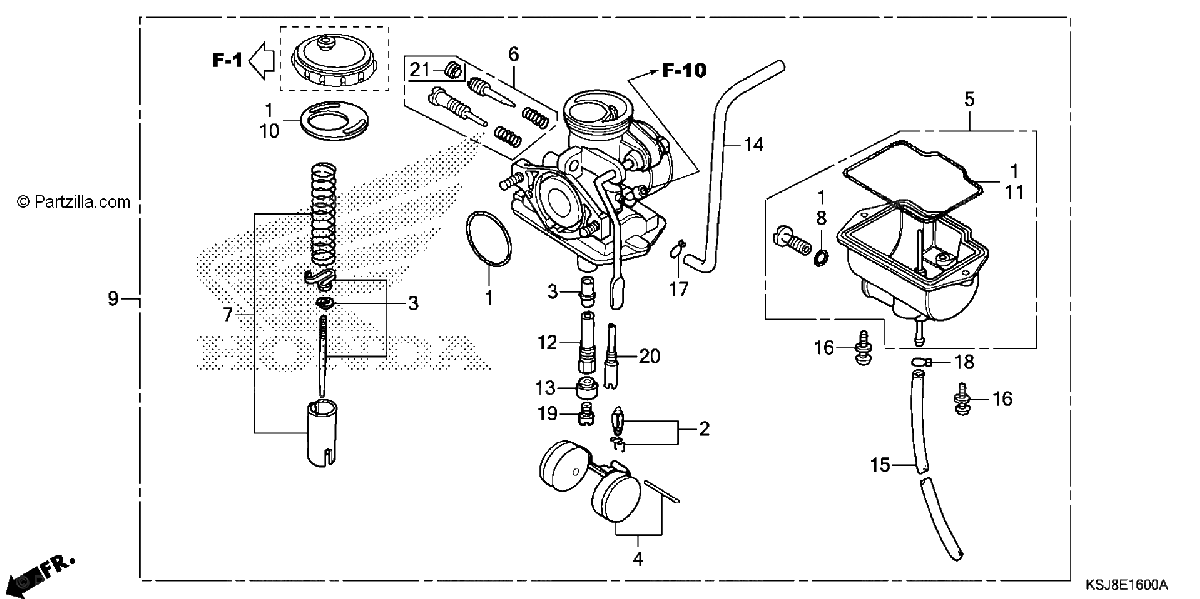

Diagrama de CARBURETOR CRF80F

Repuestos

#1
16010-116-700
GASKET SET
$14.79¢7 394
1
#1
16010-GCR-000
GASKET SET
$14.79¢7 394
1
#1
16010-116-701
GASKET SET
$14.79¢7 394
1
#2
16011-GN1-A81
VALVE SET, FLOAT
$39.19¢19 596
1
#3
16012-GFW-A01
NEEDLE SET, JET
$31.79¢15 893
1
#4
16013-107-810
FLOAT SET
$38.31¢19 153
1
#5
16015-GN1-671
CHAMBER SET, FLOAT
No Disponible
1
#6
16016-GFW-A01
SCREW SET
$22.41¢11 207
1
#7
16022-153-004
VALVE SET, THROTTLE
$60.51¢30 256
1
#8
16178-ZJ0-911
O-RING
$2.94¢1 472
1
#8
16075-GCR-000
O-RING (1.9X4.8)
$2.94¢1 472
1
#9
16100-GFW-A21
CARBURETOR ASSY. (PC20Q A)
$197.80¢98 900
1
#10
16110-GN1-771
GASKET, TOP
$9.58¢4 790
1
#11
16163-GFW-A21
GASKET, FLOAT CHAMBER
$11.41¢5 704
1
#12
16165-GN1-682
HOLDER, NEEDLE JET
$36.09¢18 043
1
#13
16168-355-700
HOLDER, JET
$9.94¢4 968
1
#14
16199-KN4-A61
TUBE, AIR VENT
$6.80¢3 398
1
#15
16199-435-771
TUBE, OVERFLOW
$12.17¢6 084
1
#16
93892-04012-08
SCREW-WASHER (4X12)
$0.76¢380
1
#16
93892-04012-18
SCREW-WASHER (4X12)
$0.76¢380
1
#17
95002-02070
CLIP, TUBE (B7)
$1.98¢989
1
#18
95002-02650
CLIP, TUBE (B6.5)
$1.75¢874
1
#19
99101-116-0900
JET, MAIN (#90)
$10.17¢5 083
1
#19
99102-GHB-0900
JET, MAIN (#90)
$10.17¢5 083
1
#19
99102-GHB-0950
JET, MAIN (#95)
$10.17¢5 083
1
#20
99103-GN1-0350
JET, SLOW (#35)
$15.23¢7 613
1
