CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

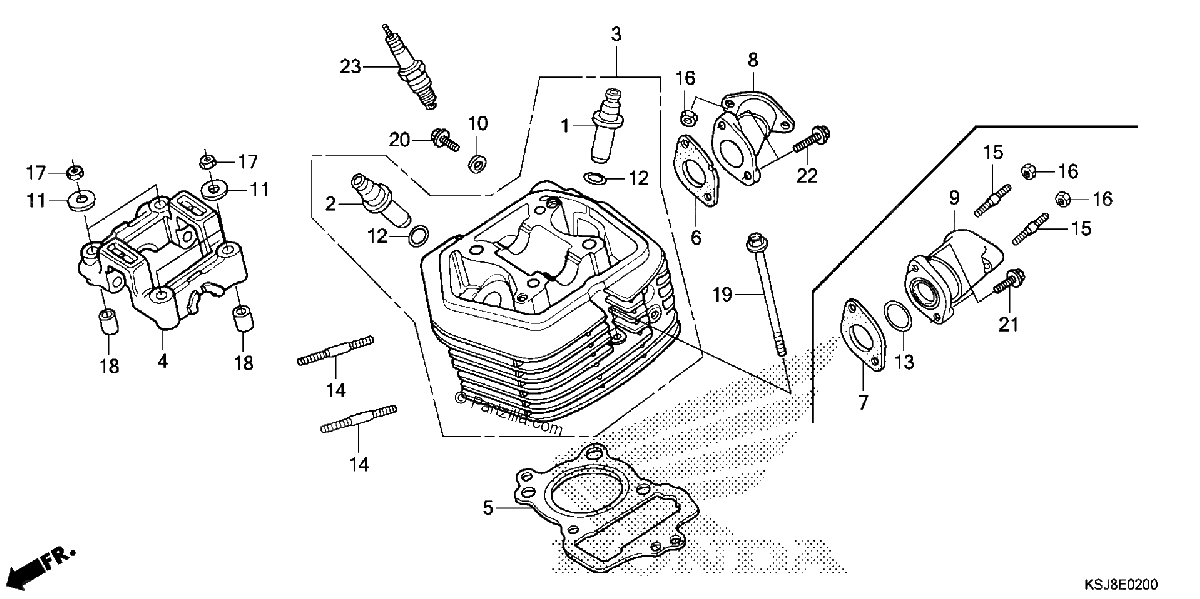

Diagrama de CYLINDER HEAD

Repuestos

#1
12021-149-300
GUIDE, IN. VALVE (OVER SIZE)
$13.76¢6 881
1
#1
12021-149-405
GUIDE, VALVE
$13.76¢6 881
1
#2
12023-116-300
GUIDE, EX. VALVE (OVER SIZE)
$21.94¢10 969
1
#2
12023-465-405
GUIDE, VALVE
$21.94¢10 969
1
#3
12200-GN1-A40
CYLINDER HEAD
$271.63¢135 813
1
#4
12210-149-020
HOLDER, CAMSHAFT
$133.35¢66 675
1
#5
12251-GN1-731
GASKET, CYLINDER HEAD
$26.02¢13 013
1
#6
16229-GN1-A42
GASKET, IN. PIPE
$7.16¢3 581
1
#8
17110-GN1-000
PIPE, INLET
$69.03¢34 513
1
#10
90478-700-000
WASHER A (6MM)
$0.99¢494
1
#11
90483-028-000
WASHER (8MM)
$1.95¢975
1
#12
91301-200-000
O-RING (10X1.6)
$3.65¢1 825
1
#14
92900-06020-0B
BOLT, STUD (6X20)
$2.21¢1 106
1
#16
94001-06000-0S
NUT, HEX. (6MM)
$1.68¢838
1
#16
94001-06200-0S
NUT, HEX. (6MM)
$1.68¢838
1
#17
94002-08200-0S
NUT, HEX. (8MM)
$1.68¢838
1
#18
94301-10160
PIN, DOWEL (10X16)
$2.92¢1 463
1
#19
95701-06110-00
BOLT, FLANGE (6X110)
$3.75¢1 875
1
#20
96001-06016-00
BOLT, FLANGE (6X16)
$1.35¢675
1
#22
96001-06022-00
BOLT, FLANGE (6X22)
$1.60¢800
1
#23
98056-56718
SPARK PLUG (CR6HSA) (NGK)
$3.13¢1 563
1
#23
98056-56726
SPARK PLUG (U20FSR-U) (DENSO)
$3.02¢1 513
1
#23
98056-57718
SPARK PLUG (CR7HSA) (NGK)
$3.13¢1 563
1
#23
98056-57726
SPARK PLUG (U22FSR-U) (DENSO)
$3.02¢1 513
1
#23
98056-58718
SPARK PLUG (CR8HSA) (NGK)
$3.13¢1 563
1
#23
98056-58726
SPARK PLUG (U24FSR-U) (DENSO)
$3.02¢1 513
1
