RIGHT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

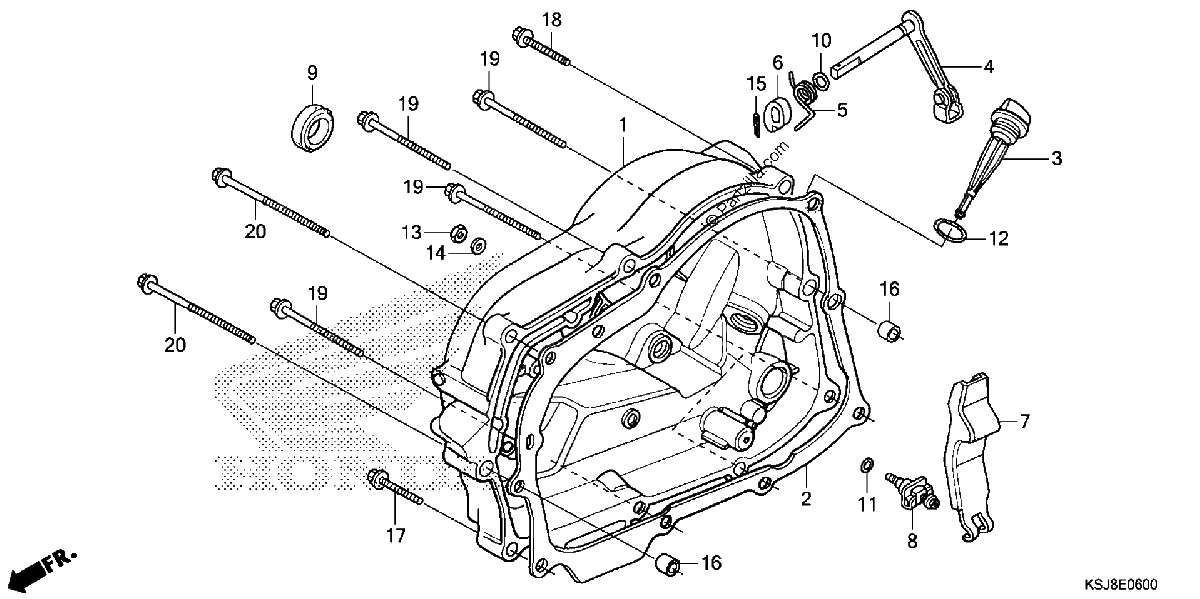

Diagrama de RIGHT CRANKCASE COVER

Repuestos

#1
11330-GN1-A81
COVER, R. CRANKCASE
$179.31¢89 654
1
#2
11393-KN4-751
GASKET, R. CRANKCASE COVER
$20.07¢10 034
1
#3
15650-KA9-680
DIPSTICK, OIL
$8.68¢4 341
1
#4
22810-GN1-760
LEVER, CLUTCH
$52.88¢26 438
1
#5
22815-149-000
SPRING, CLUTCH LEVER
$3.01¢1 507
1
#6
22821-116-000
CAM, CLUTCH LIFTER
$8.65¢4 324
1
#7
22830-436-000
LEVER, CLUTCH ADJUSTING
$26.71¢13 357
1
#8
22831-436-000
SCREW, CLUTCH ADJUSTING
$31.85¢15 927
1
#9
91204-286-003
OIL SEAL (18X29X7)
$4.82¢2 409
1
#10
91310-MC7-003
O-RING B (6.8X1.9)
$3.36¢1 679
1
#10
91301-027-000
O-RING (6.8X1.9)
$3.36¢1 679
1
#10
91306-PJ4-000
O-RING (6.8X1.9)
$3.36¢1 679
1
#11
91301-704-000
O-RING (6MM)
$3.36¢1 679
1
#12
91307-035-000
O-RING (18X3)
$3.36¢1 679
1
#13
94001-06000-0S
NUT, HEX. (6MM)
$1.54¢771
1
#13
94001-06200-0S
NUT, HEX. (6MM)
$1.54¢771
1
#14
94101-06000
WASHER, PLAIN (6MM)
$0.77¢385
1
#14
94101-06080
WASHER, PLAIN (6MM)
$0.77¢385
1
#14
94101-06800
WASHER, PLAIN (6MM)
$0.77¢385
1
#15
94201-20150
PIN, SPLIT (2.0X15)
$1.23¢615
1
#16
94301-08140
PIN, DOWEL (8X14)
$2.66¢1 328
1
#17
96001-06035-00
BOLT, FLANGE (6X35)
$1.66¢828
1
#18
96001-06040-00
BOLT, FLANGE (6X40)
$2.56¢1 282
1
#19
96001-06080-00
BOLT, FLANGE (6X80)
$2.62¢1 311
1
#20
96001-06100-00
BOLT, FLANGE (6X100)
$2.32¢1 162
1
