FUEL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

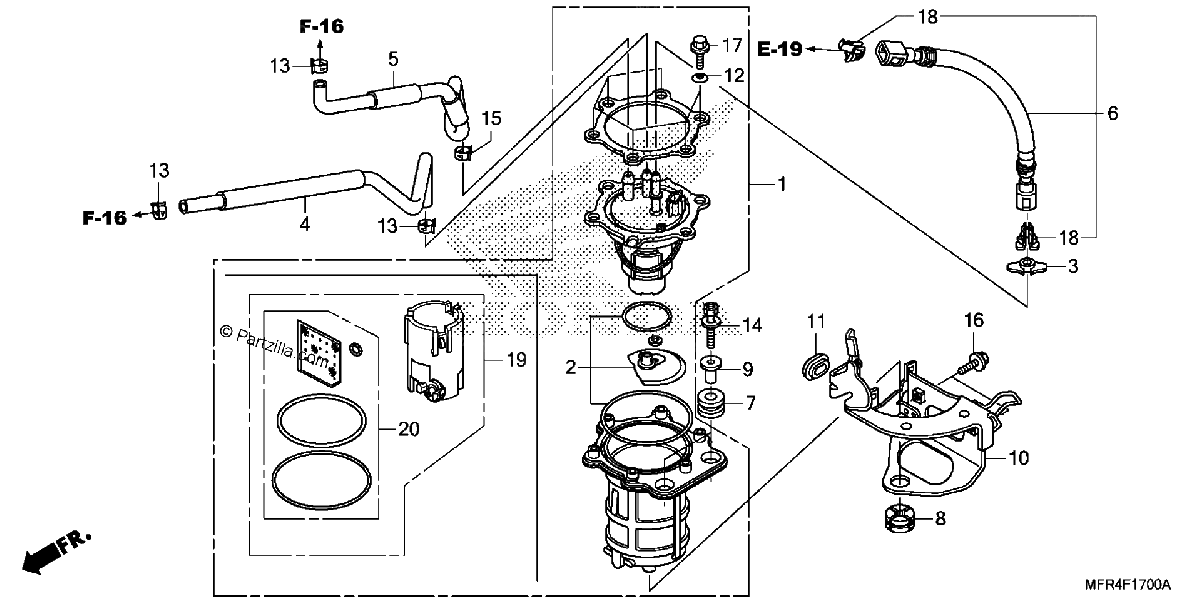

Diagrama de FUEL PUMP

Repuestos

#1
16700-HN8-601
PUMP ASSY., FUEL (MSDS)
$168.63¢84 313
1
#1
16700-HN8-A62
PUMP Assembly., FUEL (MSDS)
$168.63¢84 313
1
#2
16706-HN8-305
FILTER KIT (INSTALL INST, REFER TO TRX500(HR0) SM (61HR000) PG.7-17)
$49.01¢24 506
1
#2
16706-HN8-A62
FILTER SET
$49.01¢24 506
1
#3
16719-HN8-A61
RUBBER, FUEL JOINT
$2.99¢1 494
1
#4
16730-MFR-670
TUBE, FUEL PUMP BREATHER
$28.55¢14 275
1
#5
16951-MFR-670
TUBE, FUEL
$35.67¢17 838
1
#6
17526-MFR-671
HOSE, FUEL FEED
$90.13¢45 063
1
#7
18334-KA3-830
RUBBER, MUFFLER
$4.71¢2 356
1
#8
19051-KA3-830
RUBBER, RADIATOR MOUNTING
$4.01¢2 006
1
#9
19052-MGH-640
COLLAR, RADIATOR MOUNTING
$3.20¢1 600
1
#9
19052-MN8-000
COLLAR, RADIATOR MOUNTING
$3.20¢1 600
1
#10
50228-MFR-610
STAY, FUEL PUMP
$78.40¢39 200
1
#11
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.81¢3 406
1
#12
90501-HN8-A60
WASHER, CONICAL SPRING
$1.02¢513
1
#13
90651-HN6-A51
CLAMP, TUBE (12.0)
$2.66¢1 331
1
#14
93404-06030-00
BOLT-WASHER (6X30)
$1.68¢838
1
#15
95002-41300-08
CLAMP, TUBE (D13)
$3.65¢1 825
1
#16
95701-08016-07
BOLT, FLANGE (8X16)
$2.15¢1 075
1
#17
96001-06014-00
BOLT, FLANGE (6X14)
$2.31¢1 156
1
#18
17711-S0X-A31
RETAINER (GREEN) (TOKAI)
$4.01¢2 006
1
#20
16706-HR0-F01
FILTER SET (INSTALL INST, REFER TO TRX500
$29.09¢14 544
1
