RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

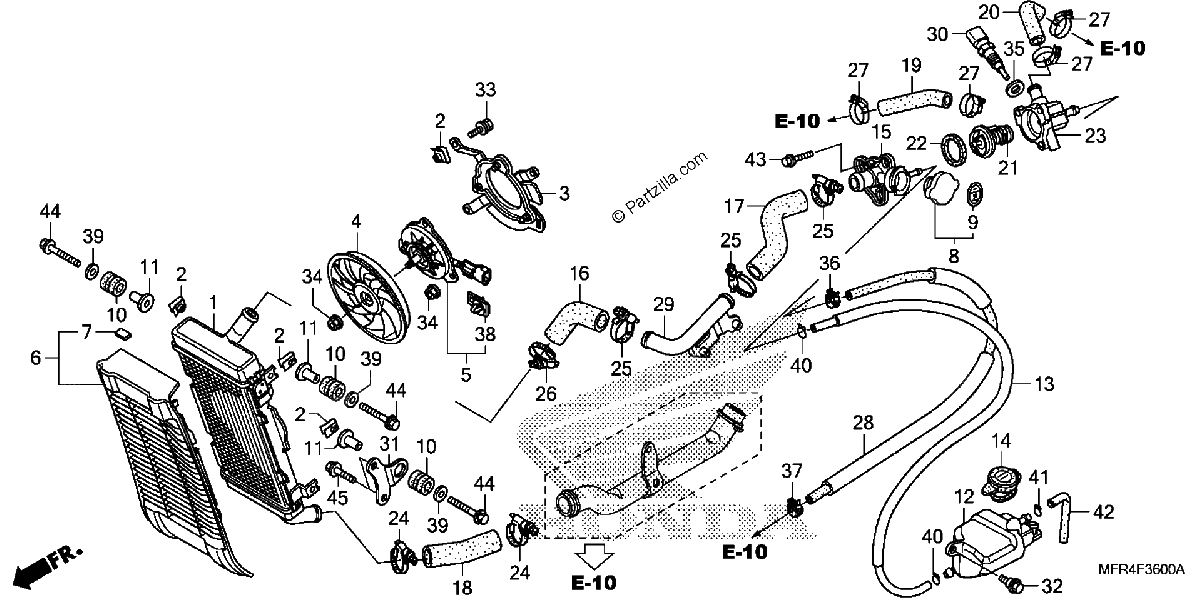

Diagrama de RADIATOR

Repuestos

#1
19010-MFR-305
RADIATOR (COO)
$805.49¢402 747
1
#2
19014-KEA-003
NUT, SETTING (6MM)
$3.45¢1 725
1
#3
19015-MFR-305
SHROUD (COO)
$86.93¢43 464
1
#4
19020-MCH-A11
FAN, COOLING
$20.72¢10 362
1
#5
19030-MFR-671
MOTOR ASSY., FAN
$336.04¢168 021
1
#6
19032-MFR-670
GRILLE, RADIATOR
$76.58¢38 289
1
#7
19033-MFR-670
RUBBER, RADIATOR GRILLE
$1.92¢960
1
#8
19037-GEE-710
CAP, RADIATOR
$32.35¢16 175
1
#9
19046-PAA-A00
LABEL, RADIATOR CAP
$3.36¢1 679
1
#10
19051-KA3-830
RUBBER, RADIATOR MOUNTING
$3.69¢1 846
1
#11
19052-MGH-640
COLLAR, RADIATOR MOUNTING
$2.94¢1 472
1
#11
19052-MN8-000
COLLAR, RADIATOR MOUNTING
$2.94¢1 472
1
#12
19101-MFR-670
TANK, RADIATOR RESERVE
$48.74¢24 369
1
#12
19101-MFY-305
TANK, RADIATOR RESERVE (COO)
$48.74¢24 369
1
#13
19102-MFR-670
TUBE, RADIATOR RESERVE TANK
$22.26¢11 132
1
#14
19104-MB0-700
CAP, RESERVE TANK
$12.99¢6 498
1
#15
19106-MFR-671
NECK ASSY., FILLER
$85.46¢42 728
1
#16
19115-MFR-670
HOSE A, RADIATOR (UPPER)
$14.74¢7 371
1
#17
19116-MFR-670
HOSE B, RADIATOR (UPPER)
$26.32¢13 162
1
#18
19117-MFR-670
HOSE, RADIATOR (LOWER)
$13.21¢6 607
1
#19
19118-MFR-670
HOSE, FR. OUTLET WATER
$9.96¢4 980
1
#20
19119-MFR-670
HOSE, RR. OUTLET WATER
$9.96¢4 980
1
#21
19300-MCH-A00
THERMOSTAT ASSY.
$51.03¢25 513
1
#22
19305-KV3-010
RUBBER, THERMOSTAT
$6.76¢3 381
1
#23
19311-MFR-670
CASE, THERMOSTAT
$106.69¢53 343
1
#24
19509-MM5-003
CLAMP, RADIATOR HOSE
$14.60¢7 302
1
#25
19516-GAG-003
CLAMP, HOSE (30-37MM)
$14.86¢7 429
1
#26
19516-MER-D10
CLAMP, HOSE
$9.07¢4 537
1
#27
19506-KS6-700
CLAMP B, WATER HOSE
$8.37¢4 186
1
#28
19531-MFR-A00
HOSE, BYPASS
$28.57¢14 283
1
#29
19570-MFR-670
PIPE D, WATER
$36.65¢18 325
1
#30
37870-KRJ-901
SENSOR ASSY., WATER TEMPERATURE
$33.09¢16 543
1
#31
50214-MFR-670
STAY, RADIATOR (LOWER)
$8.07¢4 036
1
#32
90113-GF0-000
BOLT, FLANGE (6MM)
$4.71¢2 357
1
#33
90120-GHB-611
BOLT-WASHER (6X14)
$3.16¢1 581
1
#34
90315-MK3-003
NUT, SERRATE (5MM)
$2.75¢1 374
1
#35
90454-MC7-000
WASHER, SPECIAL (12MM)
$3.09¢1 547
1
#36
90652-MBB-D41
CLAMP, TUBE (17.5)
$2.39¢1 196
1
#37
91405-PD1-004
CLAMP, TUBE (D12)
$9.66¢4 830
1
#38
91565-SEL-003
CLIP, CONNECTOR (BLACK)
$4.09¢2 047
1
#39
94103-06700
WASHER, PLAIN (6MM)
$0.85¢426
1
#40
95002-02120
CLIP, TUBE (B12)
$2.20¢1 098
1
#41
95002-70000
CLIP, TUBE (C11)
$1.94¢972
1
#42
95005-70003-30M
BULK HOSE, VACUUM (7X3000) OEM CUT SIZE: (7X200)
$25.22¢12 610
1
#43
95701-06018-08
BOLT, FLANGE (6X18)
$1.92¢960
1
#44
95801-06028-07
BOLT, FLANGE (6X28)
$2.21¢1 104
1
#45
95701-08018-07
BOLT, FLANGE (8X18)
$1.00¢500
1
#45
95801-08018-07
BOLT, FLANGE (8X18)
$1.00¢500
1
