FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

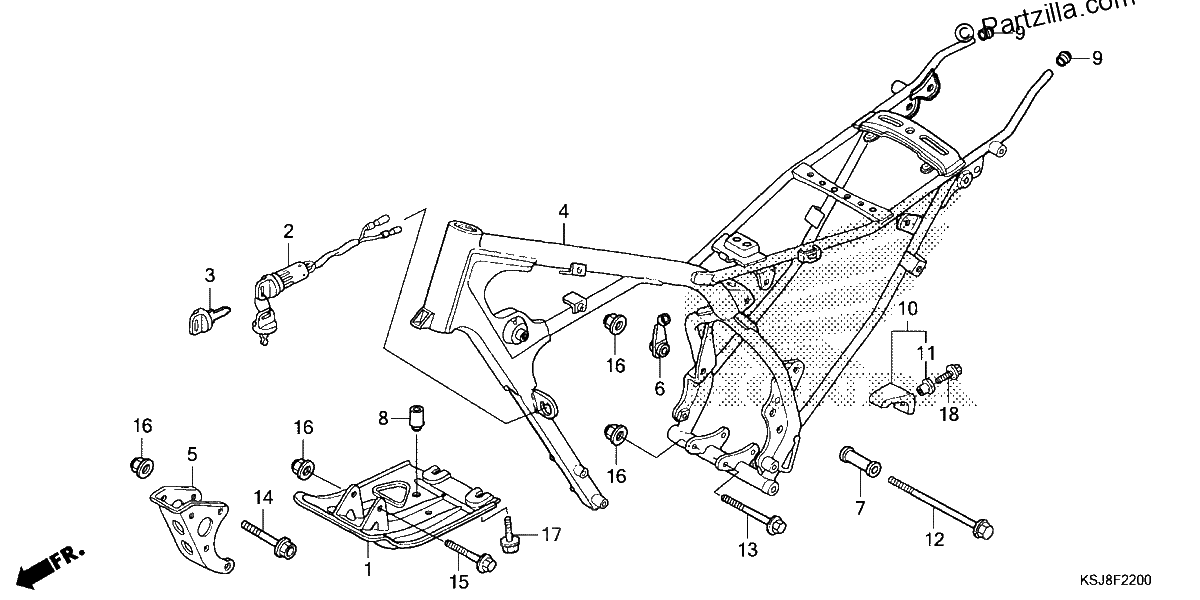

Diagrama de FRAME

Repuestos

#001
11911-GN1-680
PROTECTOR, CRANKCASE
$84.53¢42 263
1
#002
35010-KSJ-J50
LOCK SET
$84.22¢42 113
1
#003
35121-HF1-881
KEY, BLANK (TYPE 1) (KEY NO. AXX / BXX)
$11.21¢5 606
1
#003
35122-HF1-881
KEY, BLANK (TYPE 2) (KEY NO. CXX / DXX)
$11.21¢5 606
1
#004
50100-KSJ-670ZA
FRAME *NH146M* (ACCURATE SILVER METALLIC)
$754.29¢377 144
1
#005
50127-GN1-010ZC
STAY, FR. ENGINE HANGER *NH146M* (ACCURATE SILVER METALLIC)
$26.66¢13 331
1
#006
50135-GN1-000
COLLAR, R. RR. ENGINE HANGER
$10.90¢5 450
1
#007
50136-GN1-760
COLLAR, L. RR. ENGINE HANGER
$14.13¢7 063
1
#008
50363-GN1-760
RUBBER B, STOPPER
$5.42¢2 713
1
#009
50372-KN4-000
PLUG, HOLE
$7.23¢3 613
1
#010
52185-GN1-000
SLIDER ASSY., CHAIN (LOWER)
$22.70¢11 350
1
#011
61107-KK6-000
WASHER (6MM)
$3.71¢1 856
1
#012
90101-GN1-760
BOLT, FLANGE (8X158)
$10.32¢5 163
1
#013
90108-GN1-000
BOLT, FLANGE (8X102)
$8.30¢4 150
1
#014
90154-MA0-000
BOLT, FLANGE (8X60)
$8.86¢4 431
1
#015
90156-MA0-770
BOLT, FLANGE (8X65)
$8.86¢4 431
1
#016
90309-428-731
NUT, FLANGE (M8X1.25) (SELF-LOCK)
$4.06¢2 031
1
#016
90309-KF0-003
NUT, FLANGE (8MM)
$4.06¢2 031
1
#017
93405-08020-08
BOLT-WASHER (8X20)
$2.66¢1 331
1
#018
95701-06012-07
BOLT, FLANGE (6X12)
$2.09¢1 044
1
