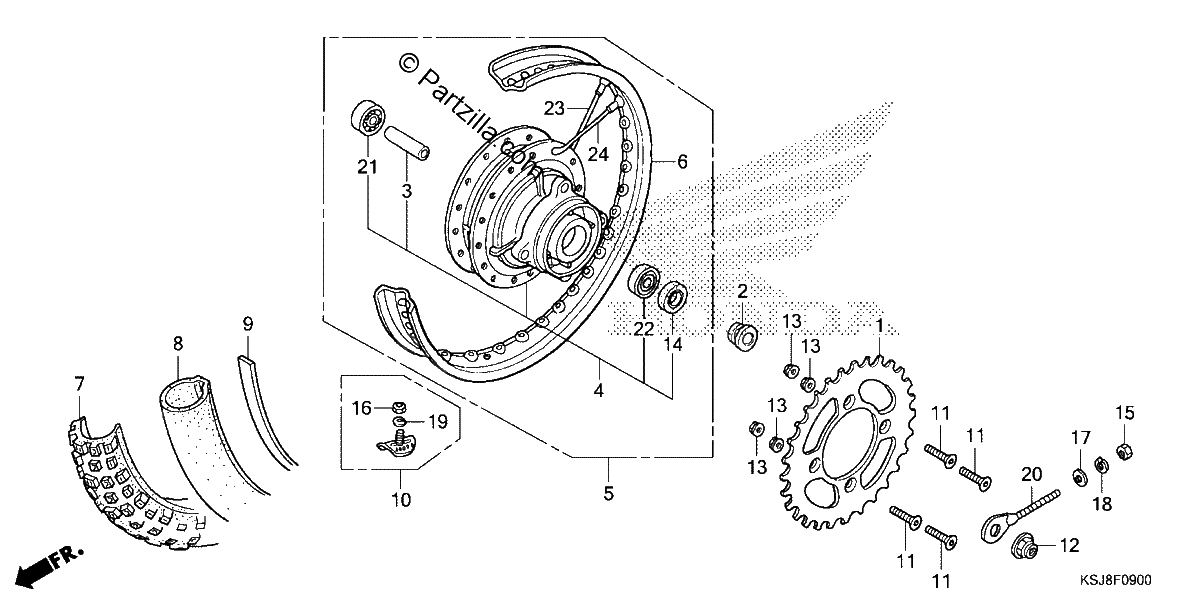

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SPROCKET, FINAL DRIVEN (50T)
$59.40¢29 700
#002
COLLAR, RR. WHEEL SIDE
$17.18¢8 588
#003
COLLAR, RR. AXLE DISTANCE
$17.14¢8 569
#004
HUB SUB-ASSY., RR.
$288.71¢144 356
#005
WHEEL SUB-ASSY., RR.
$533.65¢266 825
#005
WHEEL SUB-Assembly., Rear.
$533.65¢266 825
#005
WHEEL SUB-ASSY., RR. (COO)
$533.65¢266 825
#006
RIM, RR. WHEEL
$65.30¢32 650
#007
TIRE, RR. (90/100-16) (M/C 51M T/T) (CHENG SHIN)
$103.79¢51 894
#008
TUBE, TIRE (90/100-16) (CHENG SHIN)
$27.44¢13 719
#009
FLAP, TIRE (CHENG SHIN)
$6.56¢3 281
#010
STOPPER, BEAD (1.60)
$42.71¢21 356
#011
SCREW, FLAT (8X31)
$3.74¢1 869
#012
NUT, FLANGE (12MM) (FUSE RASHI)
$4.68¢2 338
#013
NUT, FLANGE (8MM)
$4.06¢2 031
#013
NUT, FLANGE (M8X1.25) (SELF-LOCK)
$4.06¢2 031
#014
DUST SEAL (21X37X5.5) (ARAI)
$6.13¢3 063
#014
DUST SEAL (21X37X5.5) (NOK)
$6.13¢3 063
#015
NUT, HEX. (6MM)
$1.68¢838
#015
NUT, HEX. (6MM)
$1.68¢838
#016
NUT, HEX. (8MM)
$1.68¢838
#017
WASHER, PLAIN (6MM)
$0.84¢419
#017
WASHER, PLAIN (6MM)
$0.84¢419
#017
WASHER, PLAIN (6MM)
$0.84¢419
#018
WASHER, SPRING (6MM)
$1.21¢606
#019
WASHER, SPRING (8MM)
$1.21¢606
#020
ADJUSTER S, R. CHAIN
$5.25¢2 625
#021
BEARING, RADIAL BALL (6201U)
$12.01¢6 006
#022
BEARING, RADIAL BALL (6301U)
$16.64¢8 319
#023
SPOKE SET B (10X148.5)
$4.45¢2 225
#024
SPOKE SET B (10X148.0)
$4.45¢2 225
