SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

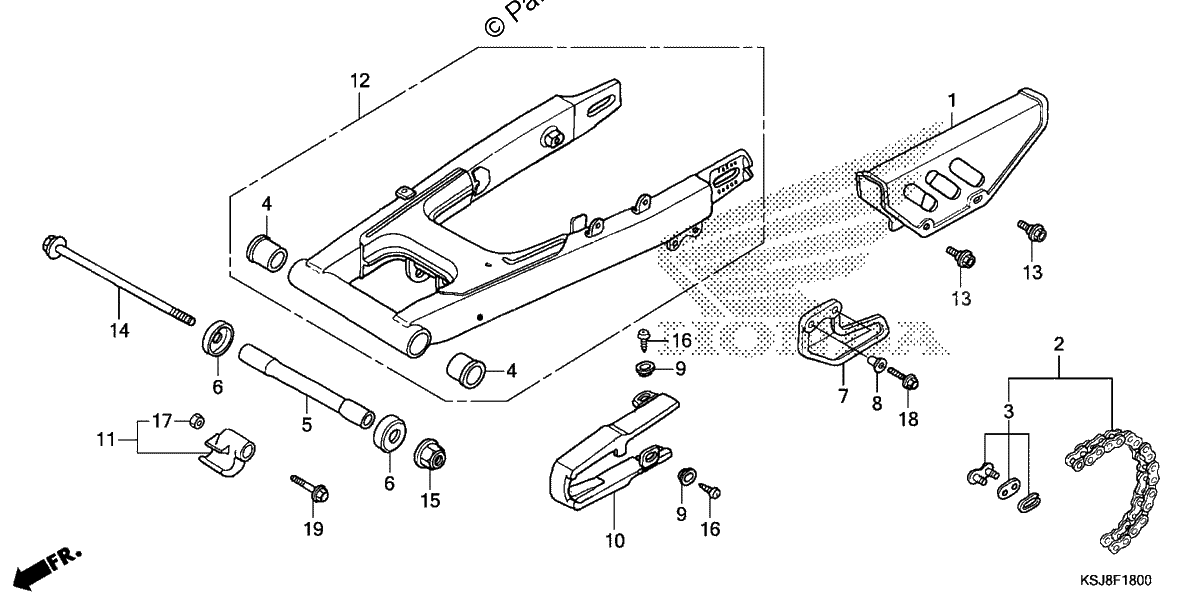

Diagrama de SWINGARM

Repuestos

#001
40510-GN1-760
CASE, DRIVE CHAIN
$34.51¢17 256
1
#002
40530-KSJ-003
CHAIN, DRIVE (DID428HD-118RB) (DAIDO)
$66.37¢33 183
1
#002
40530-KSJ-005
CHAIN, DRIVE (RK428FDZ-118RJ) (RK EXCEL)
$66.37¢33 183
1
#003
40531-355-013
MASTER LINK (DAIDO)
$4.62¢2 311
1
#003
40531-KFC-902
MASTER LINK (RK EXCEL)
$6.28¢3 140
1
#004
52109-GJ1-003
BUSH, PIVOT THRUST
$19.70¢9 850
1
#005
52141-GN1-000
COLLAR, SWINGARM
$54.84¢27 422
1
#006
52144-360-005
CAP, DUST SEAL (NOK)
$12.59¢6 296
1
#007
52156-GN1-000
GUARD, CHAIN
$28.04¢14 018
1
#008
52157-GC5-000
COLLAR, CHAIN GUARD
$4.99¢2 496
1
#009
52171-KR6-000
WASHER, CHAIN SLIDER
$3.06¢1 529
1
#010
52175-GN1-000
SLIDER, CHAIN
$29.32¢14 663
1
#011
52180-GN1-000
SLIDER, CHAIN (UPPER)
$16.18¢8 090
1
#012
52200-KSJ-000ZA
SWINGARM SUB-ASSY., RR. *NH146M* (ACCURATE SILVER METALLIC)
No Disponible
1
#013
90111-187-000
BOLT, FLANGE (6MM)
$6.24¢3 122
1
#014
90121-GN1-000
BOLT, SWINGARM PIVOT
$33.28¢16 641
1
#015
90306-KF0-003
NUT, FLANGE (12MM) (FUSE RASHI)
$4.30¢2 151
1
#016
93901-25080
SCREW, TAPPING (5X8)
$1.07¢535
1
#017
94001-06000-0S
NUT, HEX. (6MM)
$1.54¢771
1
#017
94001-06200-0S
NUT, HEX. (6MM)
$1.54¢771
1
#018
96300-06018-00
BOLT, FLANGE (6X18)
$1.53¢765
1
#019
96300-06028-00
BOLT, FLANGE (6X28)
$1.75¢874
1
