FRONT CYLINDER HEAD COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

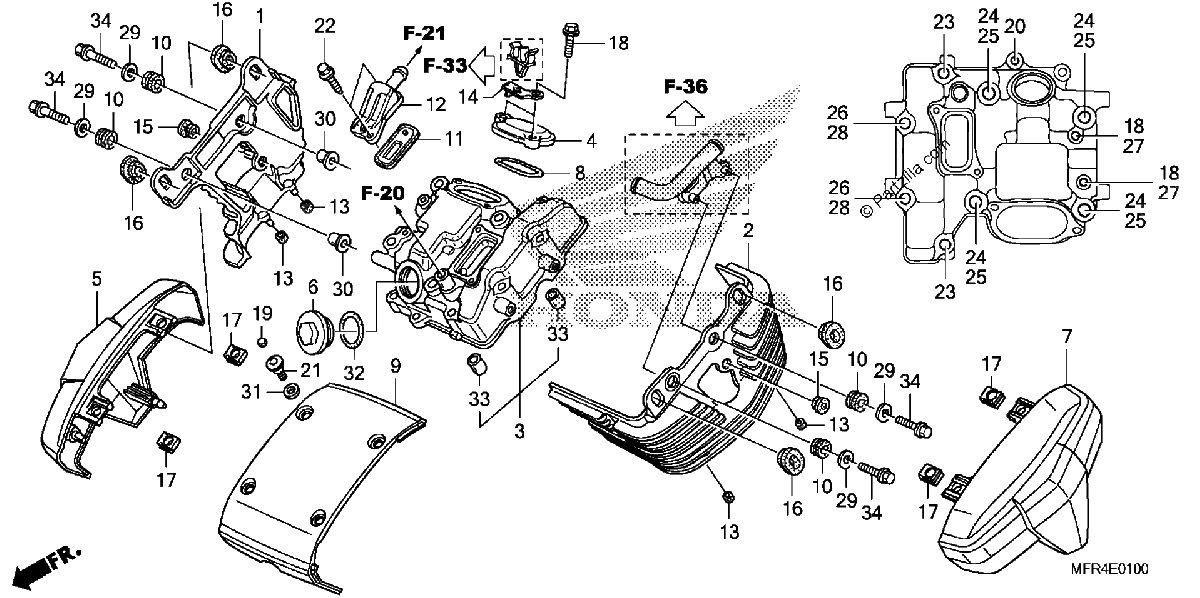

Diagrama de FRONT CYLINDER HEAD COVER

Repuestos

#1
12261-MFR-670
FIN, CYLINDER HEAD (Front Right.)
$238.10¢119 050
1
#001
12261-MFR-670
FIN, CYLINDER HEAD (Front Right.)
$238.10¢119 050
1
#1
12261-MFY-A00
FIN, CYLINDER HEAD (FR. R.)
$229.88¢114 938
1
#002
12271-MFR-670
FIN, CYLINDER HEAD (FR. L.)
$270.49¢135 244
1
#2
12271-MFR-670
FIN, CYLINDER HEAD (FR. L.)
$270.49¢135 244
1
#2
12271-MFY-A00
FIN, CYLINDER HEAD (FR. L.)
$261.19¢130 594
1
#3
12310-MEA-670
COVER, FR. CYLINDER HEAD
$405.20¢202 600
1
#003
12310-MEA-670
COVER, FR. CYLINDER HEAD
$405.20¢202 600
1
#4
12341-MEA-670
COVER, IN. TAPPET ADJUSTING HOLE
$20.45¢10 225
1
#004
12341-MEA-670
COVER, IN. TAPPET ADJUSTING HOLE
$20.45¢10 225
1
#5
12360-MFR-670
COVER, R. FR. OVER HEAD
$119.96¢59 981
1
#005
12360-MFR-670
COVER, R. FR. OVER HEAD
$119.96¢59 981
1
#006
12361-383-000
CAP, TAPPET ADJUSTING HOLE
$7.79¢3 894
1
#6
12361-383-000
CAP, TAPPET ADJUSTING HOLE
$7.79¢3 894
1
#007
12370-MFR-670
COVER, L. FR. OVER HEAD
$119.96¢59 981
1
#7
12370-MFR-670
COVER, L. FR. OVER HEAD
$119.96¢59 981
1
#008
12392-HC4-005
GASKET, TAPPET COVER (KOYO)
$4.76¢2 381
1
#8
12392-HC4-005
GASKET, TAPPET COVER (KOYO)
$4.76¢2 381
1
#9
12400-MFR-671
COVER, FR. CENTER OVER HEAD
$142.09¢71 044
1
#009
12400-MFR-671
COVER, FR. CENTER OVER HEAD
$142.09¢71 044
1
#010
17622-GB7-900
RUBBER, CUSHION
$5.81¢2 906
1
#10
17622-GB7-900
RUBBER, CUSHION
$5.81¢2 906
1
#011
18601-MCH-003
VALVE, REED
$31.46¢15 731
1
#11
18601-MCH-003
VALVE, REED
$31.46¢15 731
1
#012
18612-MCH-000
COVER, REED VALVE
$27.34¢13 669
1
#12
18612-MCH-000
COVER, REED VALVE
$27.34¢13 669
1
#13
19041-611-003
RUBBER, BUSHING
$52.47¢26 237
1
#013
19041-611-003
RUBBER, BUSHING
$52.47¢26 237
1
#14
30531-MFR-670
STAY, IGNITION WIRE
$3.14¢1 569
1
#014
30531-MFR-670
STAY, IGNITION WIRE
$3.14¢1 569
1
#015
83501-MG7-000
GROMMET, SIDE COVER
$3.36¢1 681
1
#15
83501-MG7-000
GROMMET, SIDE COVER
$3.36¢1 681
1
#016
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.81¢3 406
1
#16
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.81¢3 406
1
#017
84601-HC4-000
NUT, FENDER SETTING (6MM)
$5.20¢2 600
1
#17
84601-HC4-000
NUT, FENDER SETTING (6MM)
$5.20¢2 600
1
#018
90004-GHB-650
BOLT, FLANGE (6X20) (NSHF)
$2.52¢1 263
1
#18
90004-GHB-650
BOLT, FLANGE (6X20) (NSHF)
$2.52¢1 263
1
#19
90005-MAH-000
PLUG, HEX. (5MM)
$3.11¢1 556
1
#019
90005-MAH-000
PLUG, HEX. (5MM)
$3.11¢1 556
1
#20
90006-GHB-670
BOLT, FLANGE (6X25) (NSHF)
$2.31¢1 156
1
#020
90006-GHB-670
BOLT, FLANGE (6X25) (NSHF)
$2.31¢1 156
1
#21
90006-MFR-670
BOLT, SPECIAL (6X17)
$3.50¢1 750
1
#021
90006-MFR-670
BOLT, SPECIAL (6X17)
$3.50¢1 750
1
#022
90012-896-750
BOLT, FLANGE (5X14)
$1.54¢769
1
#22
90012-896-750
BOLT, FLANGE (5X14)
$1.54¢769
1
#23
90015-MG8-000
BOLT, FLANGE (8X150)
$7.35¢3 675
1
#023
90015-MG8-000
BOLT, FLANGE (8X150)
$7.35¢3 675
1
#024
90201-HA0-000
NUT, CAP (10MM)
$7.81¢3 906
1
#24
90201-HA0-000
NUT, CAP (10MM)
$7.81¢3 906
1
#24
90202-HA0-000
NUT, FLANGE CAP (10MM)
$7.81¢3 906
1
#024
90202-HA0-000
NUT, FLANGE CAP (10MM)
$7.81¢3 906
1
#025
90403-ML4-610
WASHER, SEALING (10MM)
$6.84¢3 419
1
#25
90403-ML4-610
WASHER, SEALING (10MM)
$6.84¢3 419
1
#26
90441-ME9-000
WASHER, SEALING (8MM)
$3.36¢1 681
1
#026
90441-ME9-000
WASHER, SEALING (8MM)
$3.36¢1 681
1
#027
90441-706-000
WASHER, SEALING (6MM)
$1.42¢712
1
#27
90441-706-000
WASHER, SEALING (6MM)
$1.42¢712
1
#028
90443-107-000
NUT, CAP (8MM)
$3.54¢1 769
1
#28
90443-107-000
NUT, CAP (8MM)
$3.54¢1 769
1
#29
90581-831-650
WASHER (18MM)
$2.40¢1 200
1
#029
90581-831-650
WASHER (18MM)
$2.40¢1 200
1
#29
90581-701-000
WASHER (18MM)
$2.40¢1 200
1
#029
90581-701-000
WASHER (18MM)
$2.40¢1 200
1
#29
90482-567-000
WASHER, SPECIAL (6MM)
$2.40¢1 200
1
#029
90482-567-000
WASHER, SPECIAL (6MM)
$2.40¢1 200
1
#030
90502-KGB-610
COLLAR, HEAD SIDE COVER
$2.73¢1 363
1
#30
90502-KGB-610
COLLAR, HEAD SIDE COVER
$2.73¢1 363
1
#31
90507-ZV1-000
WASHER, NYLON (9MM)
$2.46¢1 231
1
#031
90507-ZV1-000
WASHER, NYLON (9MM)
$2.46¢1 231
1
#032
91303-KK3-830
O-RING (35X3) (ARAI)
$3.65¢1 825
1
#32
91303-KK3-830
O-RING (35X3) (ARAI)
$3.65¢1 825
1
#033
94301-14200
PIN, DOWEL (14X20)
$2.94¢1 469
1
#33
94301-14200
PIN, DOWEL (14X20)
$2.94¢1 469
1
#034
95701-06025-00
BOLT, FLANGE (6X25)
$2.31¢1 156
1
#34
95701-06025-00
BOLT, FLANGE (6X25)
$2.31¢1 156
1
