PEDAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

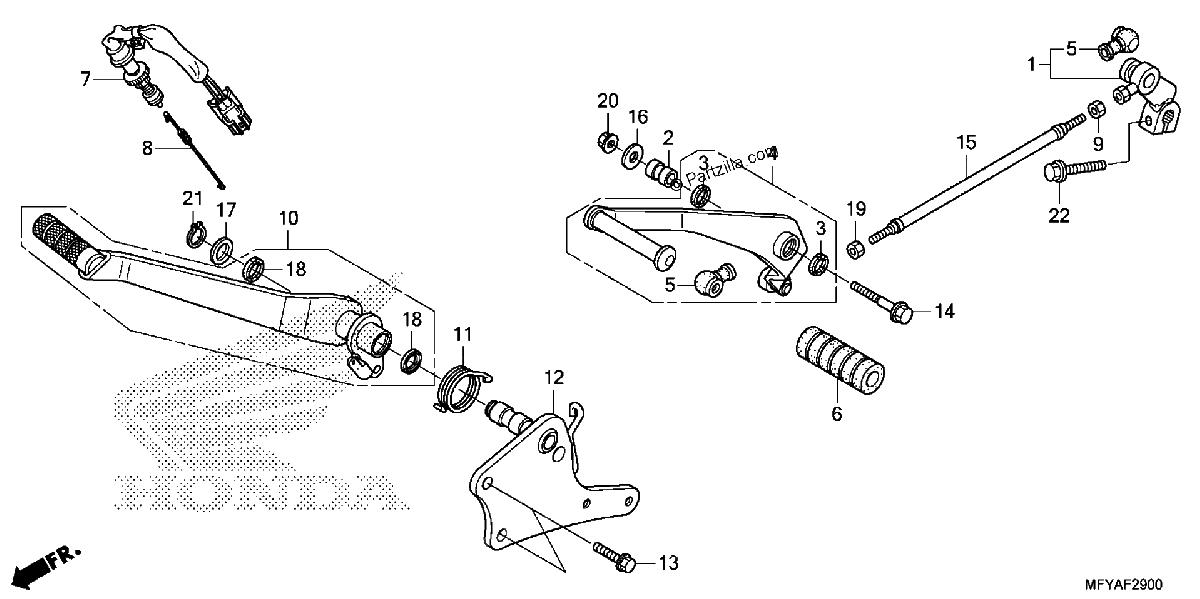

Diagrama de PEDAL 1

Repuestos

#001
24702-MFR-670
ARM, GEARSHIFT
$49.66¢24 829
1
#1
24702-MFR-670
ARM, GEARSHIFT
$49.66¢24 829
1
#2
24705-MB0-000
COLLAR, GEARSHIFT PEDAL PIVOT
$12.99¢6 498
1
#002
24705-MB0-000
COLLAR, GEARSHIFT PEDAL PIVOT
$12.99¢6 498
1
#003
24706-MK3-770
RUBBER, DUST SEAL
$4.99¢2 496
1
#3
24706-MK3-770
RUBBER, DUST SEAL
$4.99¢2 496
1
#4
24710-MFY-305
PEDAL, GEARSHIFT (COO)
$113.53¢56 764
1
#004
24710-MFY-305
PEDAL, GEARSHIFT (COO)
$113.53¢56 764
1
#004
24710-MFY-A00
PEDAL, GEARSHIFT
$113.53¢56 764
1
#5
24724-MBW-D21
COVER, DUST
$7.77¢3 887
1
#005
24724-MBW-D21
COVER, DUST
$7.77¢3 887
1
#6
24781-MCH-000
RUBBER, GEARSHIFT PEDAL
$6.24¢3 122
1
#006
24781-MCH-000
RUBBER, GEARSHIFT PEDAL
$6.24¢3 122
1
#7
35350-MFR-671
SWITCH Assembly., Rear STOP
$42.04¢21 022
1
#007
35350-MFR-671
SWITCH Assembly., Rear STOP
$42.04¢21 022
1
#7
35350-MFR-672
SWITCH ASSY., RR. STOP
$42.04¢21 022
1
#007
35350-MFR-672
SWITCH ASSY., RR. STOP
$42.04¢21 022
1
#008
35357-MFR-670
SPRING, STOP SWITCH
$4.92¢2 461
1
#8
35357-MFR-670
SPRING, STOP SWITCH
$4.92¢2 461
1
#9
45423-KA4-700
NUT, HEX. (6MM) (LEFT HAND THREAD)
$1.83¢914
1
#009
45423-KA4-700
NUT, HEX. (6MM) (LEFT HAND THREAD)
$1.83¢914
1
#10
46500-MFY-A00
PEDAL Assembly., Rear BRAKE
$167.05¢83 524
1
#010
46500-MFY-A00
PEDAL Assembly., Rear BRAKE
$167.05¢83 524
1
#010
46500-MFY-305
PEDAL ASSY., RR. BRAKE (COO)
$167.05¢83 524
1
#10
46500-MFY-305
PEDAL ASSY., RR. BRAKE (COO)
$167.05¢83 524
1
#11
46514-MFR-670
SPRING, BRAKE PEDAL
$9.96¢4 980
1
#011
46514-MFR-670
SPRING, BRAKE PEDAL
$9.96¢4 980
1
#12
50618-MFY-A00
BRACKET, RR. BRAKE
$55.22¢27 612
1
#012
50618-MFY-A00
BRACKET, RR. BRAKE
$55.22¢27 612
1
#13
90102-MW4-000
BOLT, FLANGE (8X19)
$5.36¢2 680
1
#013
90102-MW4-000
BOLT, FLANGE (8X19)
$5.36¢2 680
1
#14
90122-MM2-000
BOLT, SPECIAL FLANGE (8X40)
$5.07¢2 536
1
#014
90122-MM2-000
BOLT, SPECIAL FLANGE (8X40)
$5.07¢2 536
1
#015
90165-MFY-A00
BOLT, TIE ROD
$16.21¢8 108
1
#15
90165-MFY-A00
BOLT, TIE ROD
$16.21¢8 108
1
#16
90514-921-000
WASHER (8MM)
$1.22¢609
1
#016
90514-921-000
WASHER (8MM)
$1.22¢609
1
#017
90557-230-000
WASHER (15.2X25)
$2.83¢1 414
1
#17
90557-230-000
WASHER (15.2X25)
$2.83¢1 414
1
#018
91206-968-003
DUST SEAL (17X23X3) (NOK)
$4.12¢2 059
1
#18
91206-968-003
DUST SEAL (17X23X3) (NOK)
$4.12¢2 059
1
#19
94002-06020-0S
NUT, HEX. (6MM)
$1.30¢650
1
#019
94002-06020-0S
NUT, HEX. (6MM)
$1.30¢650
1
#020
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#20
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#21
94511-15000
CIRCLIP, OUTER (15MM)
$0.80¢402
1
#021
94511-15000
CIRCLIP, OUTER (15MM)
$0.80¢402
1
#22
95701-06020-00
BOLT, FLANGE (6X20)
$2.09¢1 047
1
#022
95701-06020-00
BOLT, FLANGE (6X20)
$2.09¢1 047
