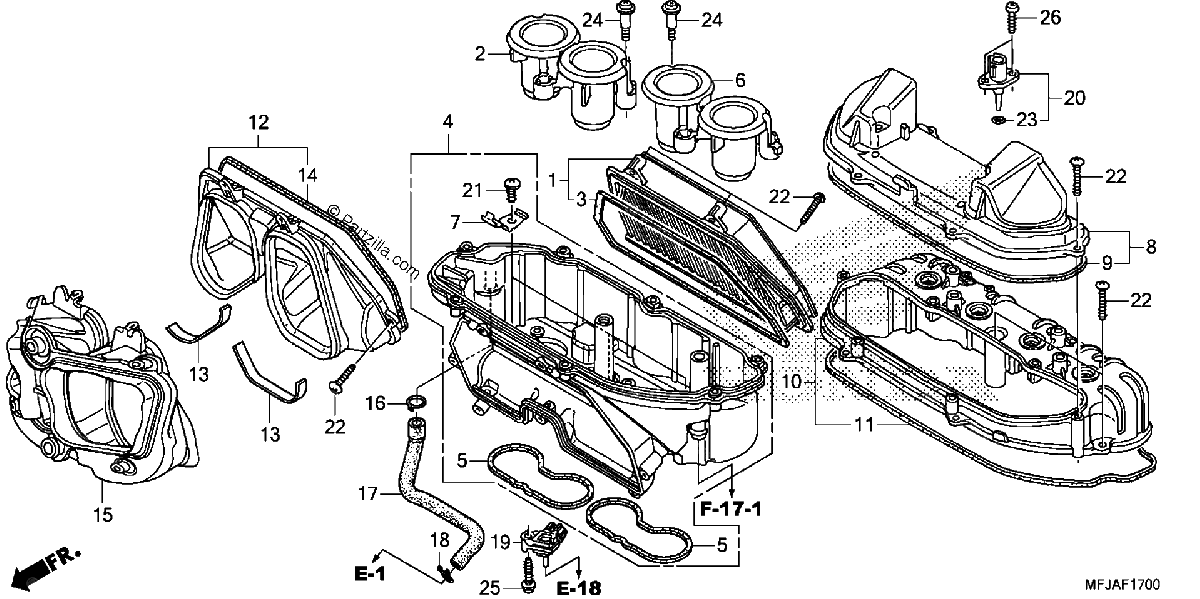

AIR CLEANER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
ELEMENT, AIR CLEANER
$49.65¢24 825
#2
FUNNEL, R. AIR
$12.75¢6 375
#3
SEAL, ELEMENT
$13.30¢6 650
#4
HOUSING, AIR CLEANER (LOWER)
$151.54¢75 769
#5
SEAL, THROTTLE BODY
$2.85¢1 425
#6
FUNNEL, L. AIR
$12.75¢6 375
#7
RETAINER, AIR CLEANER ELEMENT
$8.49¢4 244
#8
COVER, AIR CLEANER
$86.16¢43 081
#9
SEAL, AIR CLEANER COVER
$10.29¢5 144
#10
HOUSING, AIR CLEANER MIDDLE
$65.16¢32 581
#11
SEAL A, AIR CLEANER MIDDLE CASE
$13.36¢6 681
#12
JOINT A, AIR IN.
$21.85¢10 925
#13
SEAL, AIR DUCT
$3.66¢1 831
#14
SEAL, DUCT JOINT
$10.29¢5 144
#15
JOINT B, AIR IN.
$59.94¢29 969
#16
CLIP B, TUBE
$2.89¢1 444
#17
TUBE, ENGINE HEAD COVER BREATHER
$9.54¢4 769
#18
CLIP, SUB-TANK HOSE
$5.31¢2 656
#19
SENSOR ASSY., MAP
$150.09¢75 044
#20
SENSOR ASSY., AIR TEMPERATURE
$38.05¢19 025
#21
SCREW, TAPPING (5X12) (DELTA PT)
$2.24¢1 119
#22
SCREW, TAPPING (4X18) (DELTA PT)
$2.64¢1 319
#23
O-RING (7.5X1.5)
$3.63¢1 813
#24
SCREW, PAN (5MM)
$4.95¢2 475
#25
SCREW, TAPPING (5X20)
$1.06¢531
#26
SCREW, TAPPING (5X16)
$1.25¢625
