HANDLEBAR TOP BRIDGE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

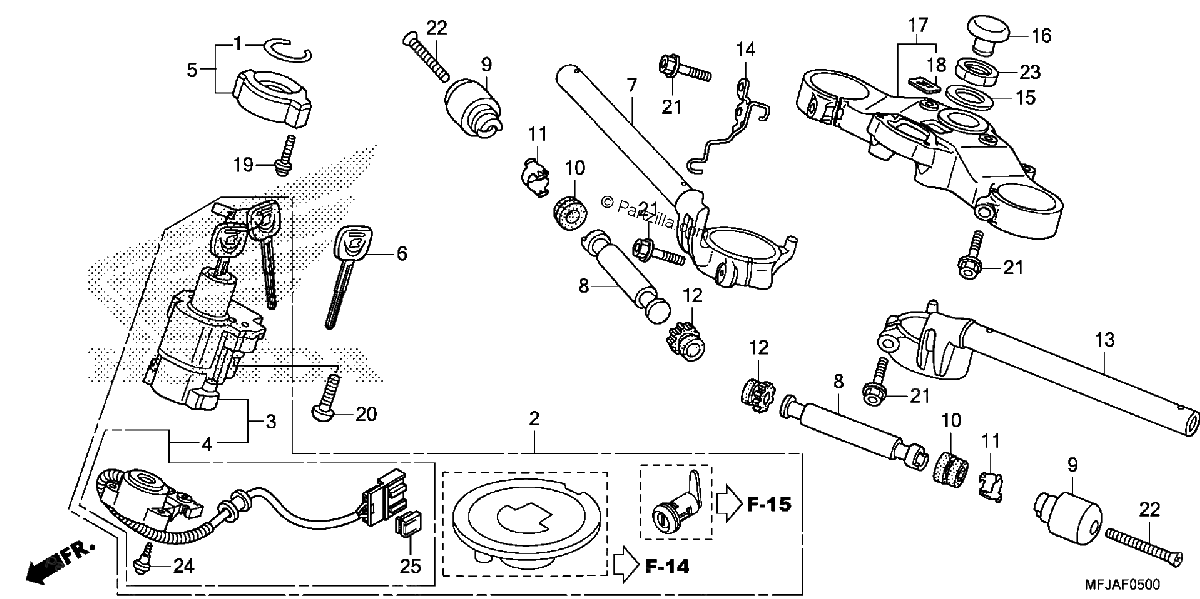

Diagrama de HANDLEBAR TOP BRIDGE

Repuestos

#1
30433-MBW-602
SEAL, IGNITION SWITCH
$3.65¢1 825
1
#2
35010-MFJ-A40
LOCK SET
$570.41¢285 206
1
#3
35100-MFJ-A41
SWITCH ASSY., COMBINATION LOCK
$236.28¢118 138
1
#4
35101-MFJ-A41
BASE, CONTACT
$92.95¢46 475
1
#5
35106-MAT-A00
COVER, COMBINATION SWITCH
$12.21¢6 106
1
#6
35121-MAS-G01
KEY, BLANK
$14.79¢7 394
1
#7
53100-MFJ-305
HANDLEBAR, R. (COO)
$163.04¢81 519
1
#8
53104-MCA-A60
WEIGHT B, HANDLE
$22.21¢11 106
1
#9
53105-MFJ-D00
WEIGHT, HANDLEBAR
$23.28¢11 638
1
#10
53107-MJ0-000
RUBBER B, HANDLE WEIGHT
$4.58¢2 288
1
#11
53108-MJ0-000
RING, HANDLE WEIGHT SNAP
$6.23¢3 113
1
#12
53109-MM5-000
RUBBER B, HANDLE WEIGHT
$4.53¢2 263
1
#13
53150-MFJ-305
HANDLEBAR, L. (COO)
$163.04¢81 519
1
#14
53191-MFJ-D00
GUIDE, CLUTCH CABLE
$30.35¢15 175
1
#15
53215-MEE-D00
WASHER, STEERING STEM NUT
$1.93¢963
1
#16
53232-MFJ-D00
CAP, STEERING STEM NUT
$3.65¢1 825
1
#17
53300-MFJ-D00
BRIDGE, FORK TOP
$336.41¢168 206
1
#18
86150-KPG-901
EMBLEM, PRODUCT (MARUI)
$4.39¢2 194
1
#19
90020-MBW-610
SCREW-WASHER (5X22)
$3.30¢1 650
1
#20
90107-MBG-000
BOLT, ONE-WAY (8MM)
$3.65¢1 825
1
#21
90140-MEE-D00
BOLT, FLANGE (8X40)
$2.38¢1 188
1
#22
90191-MJ0-000
SCREW, OVAL (6X50)
$4.15¢2 075
1
#23
90304-MEE-D00
NUT, STEERING STEM
$12.35¢6 175
1
#24
91059-KY2-711
SCREW, TAPPING (3X16)
$3.65¢1 825
1
#25
91554-SM4-003
HOLDER, BRACKET (RED)
$10.06¢5 031
1
