CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

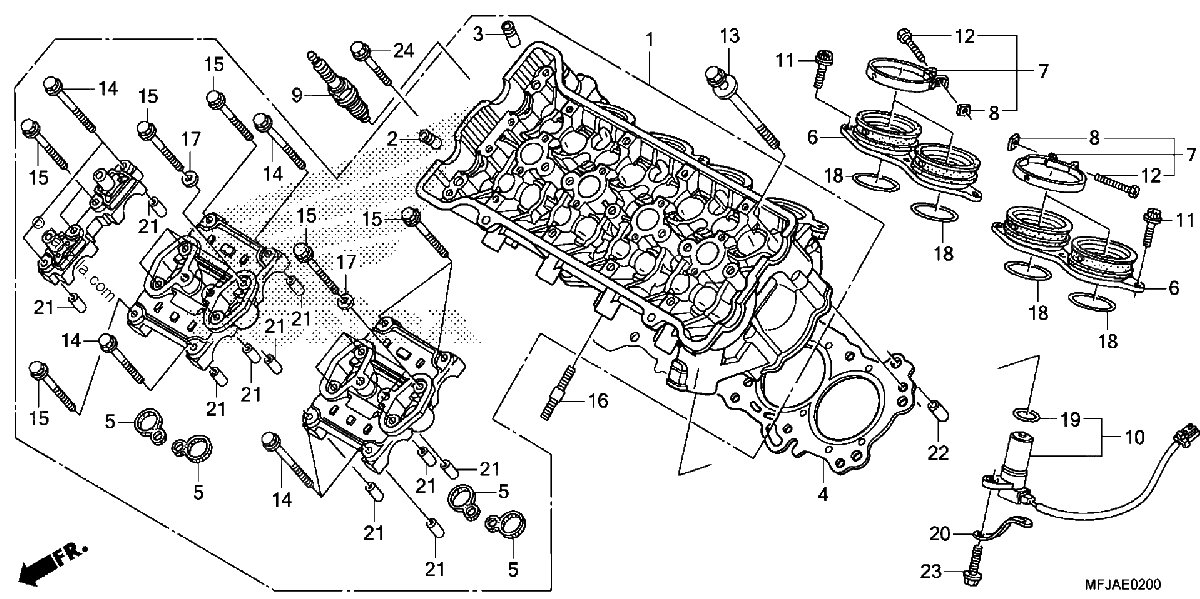

Diagrama de CYLINDER HEAD

Repuestos

#1
12010-MFJ-A40
CYLINDER HEAD ASSY.
$1529.80¢764 900
1
#2
12204-MBW-305
(EXHAUST SIDE)
$18.91¢9 453
1
#3
12204-MFJ-305
GUIDE, VALVE (OVER SIZE)
$20.10¢10 051
1
#4
12251-MFJ-D01
GASKET, CYLINDER HEAD
$78.02¢39 008
1
#5
12395-MBW-003
GASKET, PLUG HOLE
$5.19¢2 593
1
#6
16210-MFJ-D00
INSULATOR, THROTTLE BODY
$75.75¢37 875
1
#7
16217-MFJ-D00
BAND, INSULATOR
$5.55¢2 777
1
#8
16222-MV4-300
NUT, SQUARE (5MM)
$2.54¢1 271
1
#9
31912-MFL-003
SPARK PLUG (IMR9E-9HES) (NGK)
$18.84¢9 418
1
#9
31922-MBW-E12
SPARK PLUG (VUH27D) (DENSO)
$34.05¢17 026
1
#10
36140-MFJ-D01
PULSER ASSY., CAM
$70.55¢35 276
1
#11
90004-GHB-630
BOLT, FLANGE (6X16) (NSHF)
$3.91¢1 955
1
#12
90005-MCJ-000
BOLT, RECESSED (5X28)
$1.79¢897
1
#13
90007-MBW-000
BOLT-WASHER (9X90)
$9.22¢4 611
1
#14
90017-MA6-000
BOLT, FLANGE (6X45.5)
$3.74¢1 869
1
#15
90019-MA6-000
BOLT, FLANGE (6X39.5)
$3.36¢1 679
1
#16
90035-MM5-000
BOLT, STUD (8X24)
$5.70¢2 852
1
#17
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.36¢1 679
1
#18
91301-MFJ-D00
O-RING (40X2.5)
$5.30¢2 651
1
#19
91309-PX4-003
O-RING (16X2.1) (NOK)
$3.36¢1 679
1
#20
91410-679-000
CLIP (2X60)
$10.83¢5 416
1
#21
94301-08200
PIN, DOWEL (8X20)
$2.66¢1 328
1
#22
94301-10160
PIN, DOWEL (10X16)
$2.69¢1 346
1
#23
95701-06018-07
BOLT, FLANGE (6X18)
$1.92¢960
1
#24
96001-06035-00
BOLT, FLANGE (6X35)
$1.66¢828
1
