FRAME 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

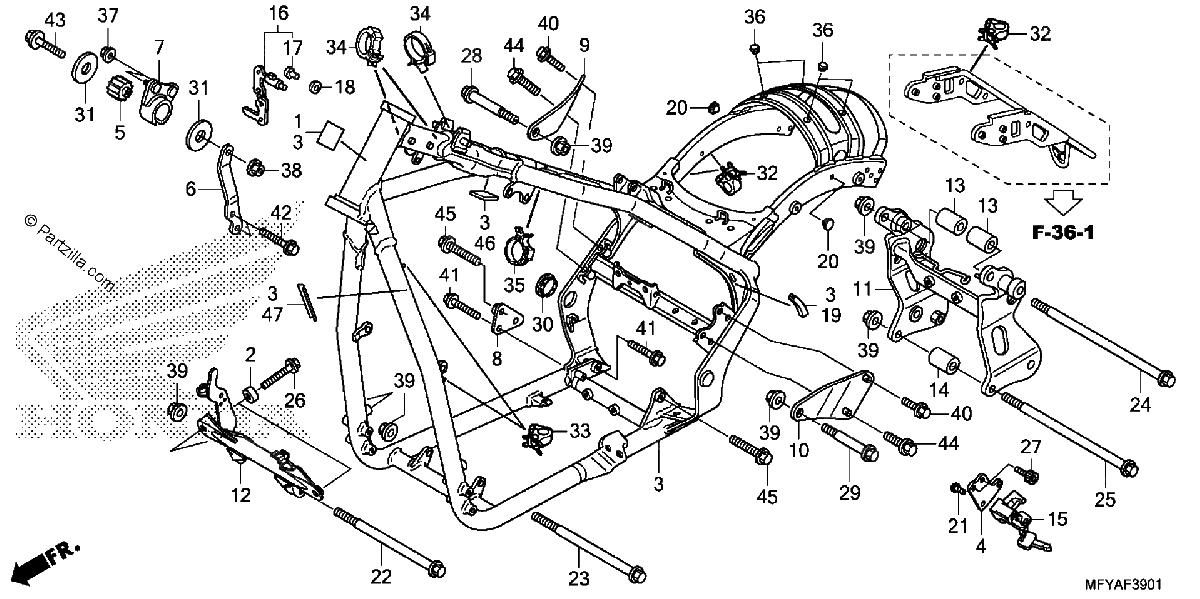

Diagrama de FRAME 2

Repuestos

#1
17528-KCZ-930
TAPE B, TANK GUARD
$4.42¢2 208
1
#001
17528-KCZ-930
TAPE B, TANK GUARD
$4.42¢2 208
1
#002
18309-GN3-670
COLLAR B, MUFFLER STAY
$2.86¢1 432
1
#2
18309-GN3-670
COLLAR B, MUFFLER STAY
$2.86¢1 432
1
#003
50010-MFY-L70ZA
FRAME SET *B197M* (GLINT WAVE BLUE METALLIC)
$4186.35¢2 093 173
1
#3
50010-MFY-L70ZA
FRAME SET *B197M* (GLINT WAVE BLUE METALLIC)
$4186.35¢2 093 173
1
#004
50165-MFY-A00
BRACKET, HELMET HOLDER
$8.14¢4 071
1
#4
50165-MFY-A00
BRACKET, HELMET HOLDER
$8.14¢4 071
1
#5
50201-MFY-A00
RUBBER, ENGINE HEAD MOUNTING
$10.50¢5 250
1
#005
50201-MFY-A00
RUBBER, ENGINE HEAD MOUNTING
$10.50¢5 250
1
#006
50202-MFY-A00
PLATE, ENGINE HANGER (LOWER) (E)
$37.42¢18 711
1
#6
50202-MFY-A00
PLATE, ENGINE HANGER (LOWER) (E)
$37.42¢18 711
1
#7
50203-MFY-A00
PLATE, ENGINE HANGER CENTER (E)
$69.11¢34 558
1
#007
50203-MFY-A00
PLATE, ENGINE HANGER CENTER (E)
$69.11¢34 558
1
#008
50204-MFR-670
PLATE, RR. ENGINE MOUNT (LOWER) (RH)
$17.61¢8 803
1
#8
50204-MFR-670
PLATE, RR. ENGINE MOUNT (LOWER) (RH)
$17.61¢8 803
1
#9
50207-MFR-670
PLATE, R. RR. ENGINE HANGER (UPPER)
$51.49¢25 743
1
#009
50207-MFR-670
PLATE, R. RR. ENGINE HANGER (UPPER)
$51.49¢25 743
1
#010
50208-MFR-670
PLATE, L. RR. ENGINE HANGER (UPPER)
$51.49¢25 743
1
#10
50208-MFR-670
PLATE, L. RR. ENGINE HANGER (UPPER)
$51.49¢25 743
1
#11
50210-MFR-670
PLATE, PIVOT MOUNT
$371.75¢185 874
1
#011
50210-MFR-670
PLATE, PIVOT MOUNT
$371.75¢185 874
1
#12
50220-MFY-A00
PIPE, FR. CROSS
$258.98¢129 490
1
#012
50220-MFY-A00
PIPE, FR. CROSS
$258.98¢129 490
1
#13
50221-MFR-670
COLLAR, ENGINE HANGER (24X41.5)
$10.37¢5 187
1
#013
50221-MFR-670
COLLAR, ENGINE HANGER (24X41.5)
$10.37¢5 187
1
#014
50223-MFR-670
COLLAR, ENGINE HANGER (24X32)
$8.39¢4 198
1
#14
50223-MFR-670
COLLAR, ENGINE HANGER (24X32)
$8.39¢4 198
1
#15
50710-GCN-305
HOLDER ASSY., HELMET (COO)
$30.84¢15 421
1
#15
50710-GCN-003
HOLDER ASSY., HELMET (HONDALOCK)
$30.84¢15 421
1
#015
50710-GCN-003
HOLDER ASSY., HELMET (HONDALOCK)
$30.84¢15 421
1
#016
53600-MFR-AC0
LOCK SET, HANDLEBAR
$99.08¢49 542
1
#016
53600-404-611
LOCK, HANDLEBAR
$99.08¢49 542
1
#16
53600-404-611
LOCK, HANDLEBAR
$99.08¢49 542
1
#017
53603-051-000
RIVET (4.1MM)
$3.01¢1 507
1
#17
53603-051-000
RIVET (4.1MM)
$3.01¢1 507
1
#017
53603-MFR-AC1
RIVET
$3.01¢1 507
1
#18
53604-098-940
WASHER (4.5MM)
$2.81¢1 403
1
#018
53604-098-940
WASHER (4.5MM)
$2.81¢1 403
1
#018
53604-098-941
WASHER (4.5MM)
$2.81¢1 403
1
#19
64122-MBB-300
RUBBER, PROTECTOR
$5.22¢2 610
1
#019
64122-MBB-300
RUBBER, PROTECTOR
$5.22¢2 610
1
#020
77212-965-000
RUBBER, SEAT SIDE
$5.51¢2 754
1
#20
77212-965-000
RUBBER, SEAT SIDE
$5.51¢2 754
1
#21
90105-KEB-620
BOLT, ONE-WAY (6X12)
$2.68¢1 340
1
#021
90105-KEB-620
BOLT, ONE-WAY (6X12)
$2.68¢1 340
1
#022
90110-MFR-670
BOLT, FLANGE (10X148)
$9.22¢4 611
1
#22
90110-MFR-670
BOLT, FLANGE (10X148)
$9.22¢4 611
1
#23
90111-MFR-670
BOLT, FLANGE (10X151)
$9.64¢4 819
1
#023
90111-MFR-670
BOLT, FLANGE (10X151)
$9.64¢4 819
1
#024
90112-MFR-670
BOLT, FLANGE (10X235.5)
$11.41¢5 704
1
#24
90112-MFR-670
BOLT, FLANGE (10X235.5)
$11.41¢5 704
1
#25
90117-MFR-670
BOLT, FLANGE (10X212)
$11.41¢5 704
1
#025
90117-MFR-670
BOLT, FLANGE (10X212)
$11.41¢5 704
1
#026
90125-MFY-A00
BOLT, FLANGE (8X40) (G)
$3.96¢1 978
1
#26
90125-MFY-A00
BOLT, FLANGE (8X40) (G)
$3.96¢1 978
1
#27
90130-MEW-D20
BOLT, TORX (6X13)
$3.63¢1 817
1
#027
90130-MEW-D20
BOLT, TORX (6X13)
$3.63¢1 817
1
#028
90154-MFR-670
BOLT, FLANGE (10X52)
$14.86¢7 429
1
#28
90154-MFR-670
BOLT, FLANGE (10X52)
$14.86¢7 429
1
#029
90155-MFR-670
BOLT, FLANGE (10X66)
$16.13¢8 067
1
#29
90155-MFR-670
BOLT, FLANGE (10X66)
$16.13¢8 067
1
#30
90312-MB0-700
CAP, Right LOCK NUT
$19.45¢9 723
1
#030
90312-MB0-700
CAP, Right LOCK NUT
$19.45¢9 723
1
#031
90455-896-700
WASHER, TANK MOUNTING
$3.50¢1 748
1
#31
90455-896-700
WASHER, TANK MOUNTING
$3.50¢1 748
1
#032
90690-GHB-631
CLIP, CABLE (8MM)
$2.59¢1 294
1
#32
90690-GHB-631
CLIP, CABLE (8MM)
$2.59¢1 294
1
#33
90690-GHB-641
CLIP, CABLE (10MM)
$2.59¢1 294
1
#033
90690-GHB-641
CLIP, CABLE (10MM)
$2.59¢1 294
1
#34
90690-GHB-651
CLIP, CABLE (15MM)
$2.59¢1 294
1
#034
90690-GHB-651
CLIP, CABLE (15MM)
$2.59¢1 294
1
#035
90690-GHB-701
CLIP, CABLE (17MM)
$3.36¢1 679
1
#35
90690-GHB-701
CLIP, CABLE (17MM)
$3.36¢1 679
1
#36
90852-446-630
PLUG, HOLE
$3.04¢1 518
1
#036
90852-446-630
PLUG, HOLE
$3.04¢1 518
1
#037
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#37
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#38
94050-08070
NUT, FLANGE (8MM)
$1.77¢886
1
#038
94050-08070
NUT, FLANGE (8MM)
$1.77¢886
1
#39
94050-10070
NUT, FLANGE (10MM)
$3.74¢1 869
1
#039
94050-10070
NUT, FLANGE (10MM)
$3.74¢1 869
1
#039
90303-428-900
NUT, FLANGE (10MM)
$3.74¢1 869
1
#39
90303-428-900
NUT, FLANGE (10MM)
$3.74¢1 869
1
#40
95701-08025-07
BOLT, FLANGE (8X25)
$1.09¢546
1
#040
95701-08025-07
BOLT, FLANGE (8X25)
$1.09¢546
1
#041
95701-08028-07
BOLT, FLANGE (8X28)
$1.47¢736
1
#41
95701-08028-07
BOLT, FLANGE (8X28)
$1.47¢736
1
#042
95701-08030-07
BOLT, FLANGE (8X30)
$2.69¢1 346
1
#42
95701-08030-07
BOLT, FLANGE (8X30)
$2.69¢1 346
1
#043
95701-08055-07
BOLT, FLANGE (8X55)
$2.18¢1 092
1
#43
95701-08055-07
BOLT, FLANGE (8X55)
$2.18¢1 092
1
#044
95701-10025-07
BOLT, FLANGE (10X25)
$1.68¢839
1
#44
95701-10025-07
BOLT, FLANGE (10X25)
$1.68¢839
1
#45
95701-10032-07
BOLT, FLANGE (10X32)
$2.09¢1 047
1
#045
95701-10032-07
BOLT, FLANGE (10X32)
$2.09¢1 047
1
#046
50190-MFY-A00
MAT, MAIN PIPE
$2.13¢1 064
1
#46
50190-MFY-A00
MAT, MAIN PIPE
$2.13¢1 064
1
#047
76259-767-L00
SEAL, PROTECTOR
$3.23¢1 616
1
#47
76259-767-L00
SEAL, PROTECTOR
$3.23¢1 616
1
