FRONT BRAKE MASTER CYLINDER CBR600RA

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

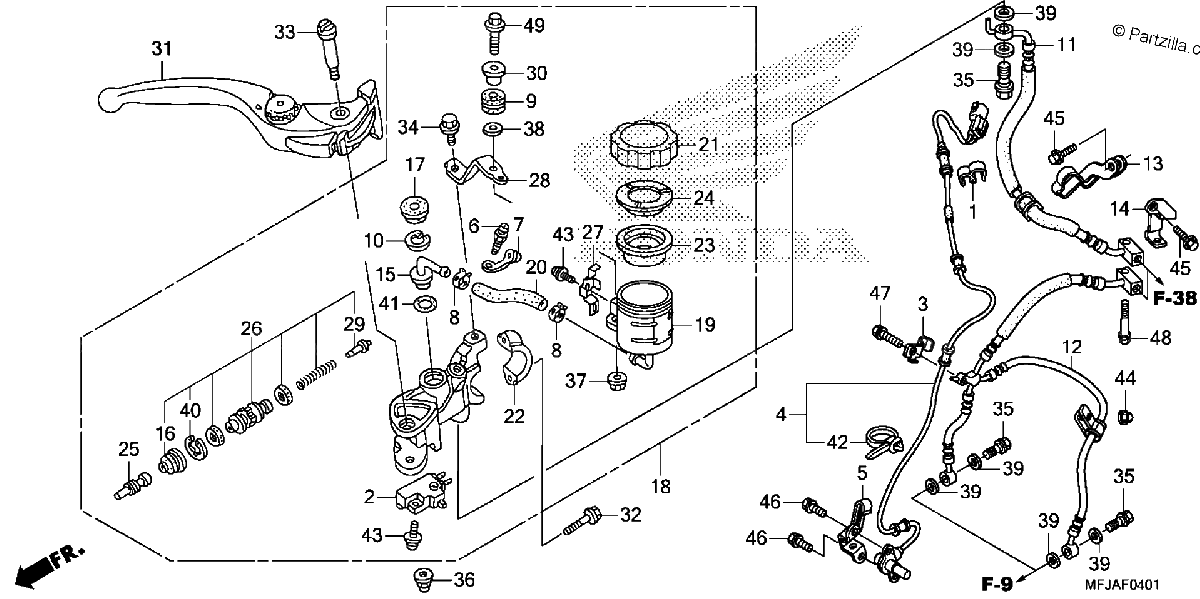

Diagrama de FRONT BRAKE MASTER CYLINDER CBR600RA

Repuestos

#1
11152-KS4-003
CLAMP, PIPE
$7.95¢3 973
1
#2
35340-MEL-003
SWITCH ASSY., FR. STOP
$16.25¢8 125
1
#3
38514-MEJ-J00
CLAMP B, SENSOR WIRE
$2.68¢1 340
1
#4
38520-MFJ-A51
SENSOR, FR. WHEEL SPEED
$222.97¢111 487
1
#5
38525-MFJ-A50
GUIDE, FR. SENSOR WIRE
$15.21¢7 607
1
#6
43352-568-003
SCREW, BLEEDER (NISSIN)
$8.85¢4 427
1
#7
43353-461-771
CAP, BLEEDER
$5.63¢2 818
1
#8
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
1
#9
43516-MCJ-006
RUBBER, OIL CUP
$5.51¢2 754
1
#10
43517-KS6-701
CIRCLIP, Rear MASTER CYLINDER
$4.25¢2 128
1
#11
45124-MFJ-A51
HOSE A, FR. BRAKE
$62.84¢31 418
1
#12
45127-MFJ-A51
HOSE B, FR. BRAKE
$164.98¢82 489
1
#13
45159-MFJ-A50
CLAMP, FR. BRAKE HOSE
$13.39¢6 693
1
#14
45163-MFJ-A50
STAY, FR. BRAKE HOSE
$8.69¢4 347
1
#15
45503-KV3-006
CONNECTOR, MASTER CYLINDER
$10.11¢5 054
1
#16
45504-MCF-006
BOOT
$14.06¢7 032
1
#17
45505-KV3-006
COVER, DUST
$4.63¢2 317
1
#18
45510-MFJ-305
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)
$302.75¢151 374
1
#19
45511-MEL-D21
CUP, OIL
$10.58¢5 290
1
#20
45512-KV3-951
HOSE, MASTER CYLINDER OIL
$5.82¢2 909
1
#21
45513-MEL-D21
CAP, OIL CUP
$19.68¢9 838
1
#22
45517-MFL-006
HOLDER, MASTER CYLINDER
$12.68¢6 342
1
#23
45520-300-000
DIAPHRAGM
$9.74¢4 870
1
#24
45521-MJ6-006
PLATE, DIAPHRAGM
$4.52¢2 260
1
#25
45525-MEL-016
ROD, PUSH
$15.69¢7 843
1
#26
45530-MFJ-D01
MASTER CYLINDER SET
$51.55¢25 777
1
#27
45535-MR8-901
PLATE, STOP
$6.08¢3 042
1
#28
45550-MFJ-D01
STAY, FR. MASTER CYLINDER
$5.51¢2 754
1
#29
46140-MFJ-D01
GUIDE, SPRING
$9.49¢4 744
1
#30
50324-425-010
COLLAR (6.3X13)
$5.40¢2 702
1
#31
53170-MEL-305
LEVER ASSY., R. HANDLE (COO)
$56.13¢28 066
1
#32
90101-MBZ-G00
BOLT, FLANGE (6X22)
$1.70¢851
1
#33
90114-MCF-006
BOLT, HANDLE LEVER
$6.49¢3 243
1
#34
90117-MR7-000
BOLT, FLANGE (6X12)
$3.53¢1 765
1
#35
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#36
90201-415-000
NUT, CAP (6MM)
$2.54¢1 271
1
#37
90301-MG3-000
NUT, U (6MM)
$7.72¢3 858
1
#38
90473-147-000
WASHER (6X16)
$1.56¢782
1
#39
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#40
90651-MCF-006
CIRCLIP
$2.68¢1 340
1
#41
91212-422-006
O-RING (14.8X2.4)
$3.04¢1 518
1
#42
91541-S0A-003
CLIP, HARNESS BAND (145MM) (BLACK)
$3.69¢1 846
1
#43
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#43
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
#44
94021-06070-0S
NUT, CAP (6MM)
$1.83¢914
1
#45
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#46
96001-06014-07
BOLT, FLANGE (6X14)
$1.41¢707
1
#47
96001-06018-07
BOLT, FLANGE (6X18)
$1.49¢747
1
#48
96001-06035-07
BOLT, FLANGE (6X35)
$2.56¢1 282
1
#49
96300-06028-07
BOLT, FLANGE (6X28)
$2.13¢1 064
1
