REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

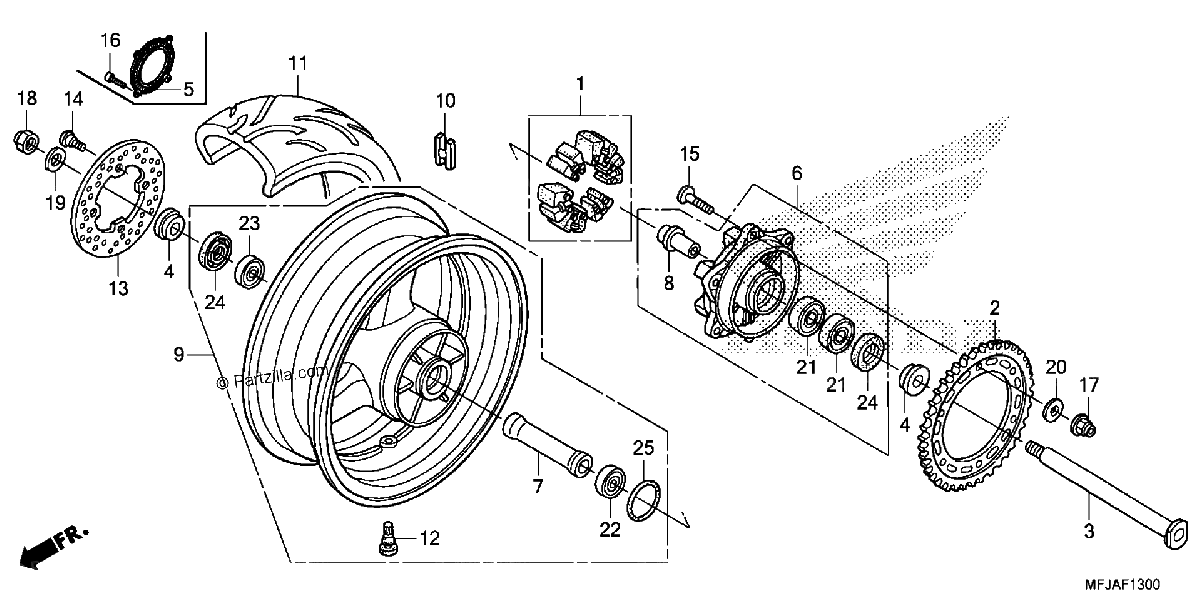

Diagrama de REAR WHEEL

Repuestos

#1
06410-MFJ-D00
DAMPER SET, WHEEL
$61.74¢30 872
1
#2
41201-MFJ-A00
SPROCKET, FINAL DRIVEN (42T)
$99.92¢49 962
1
#3
42301-MEE-D00
AXLE, RR. WHEEL
$75.37¢37 686
1
#4
42311-MCJ-750
COLLAR, RR. WHEEL SIDE
$18.15¢9 074
1
#5
42515-MFJ-A50
RING, RR. PULSER
$63.49¢31 746
1
#6
42615-MEL-000
FLANGE SUB-ASSY., RR. DRIVEN
$272.42¢136 212
1
#7
42620-MFJ-D00
COLLAR, RR. AXLE DISTANCE
$48.64¢24 322
1
#8
42625-MEL-000
COLLAR B, RR. WHEEL DISTANCE
$36.93¢18 463
1
#9
42650-MFJ-307
WHEEL SUB-ASSY., RR.
$1445.40¢722 700
1
#10
42704-MER-D00
WEIGHT, BALANCE (10G)
$10.04¢5 020
1
#10
42705-MER-D00
WEIGHT, BALANCE (20G)
$20.62¢10 310
1
#10
42706-MER-D00
WEIGHT, BALANCE (30G)
$20.32¢10 160
1
#11
42711-MFJ-D01
TIRE, RR. (180/55ZR17) (M/C 73W) (BS)
$295.17¢147 585
1
#11
42711-MFJ-D02
TIRE, RR. (180/55ZR17) (M/C 73W) (DUNLOP)
No Disponible
1
#12
42753-ML7-003
VALVE, RIM (BS)
$13.60¢6 802
1
#12
42753-ML7-004
VALVE, RIM (DUNLOP)
$13.60¢6 802
1
#13
43251-MFJ-A51
DISK, RR. BRAKE
$301.04¢150 518
1
#14
90105-MV9-003
BOLT, BRAKE DISK (8X24) (TSUKIBOSHI)
$6.92¢3 461
1
#15
90121-MCF-D30
BOLT (10X30)
$3.36¢1 679
1
#16
90131-MFJ-A50
BOLT, TORX (5X7)
$3.60¢1 800
1
#17
90304-KAE-871
NUT, U (10MM)
$4.83¢2 415
1
#18
90305-MFJ-A50
U-NUT (22MM)
$11.61¢5 807
1
#19
90401-MCJ-000
WASHER (23X37X2.5)
$5.63¢2 818
1
#20
90502-MCF-000
WASHER (10MM)
$3.32¢1 662
1
#21
91051-HA7-671
BEARING, RADIAL BALL (28X52X12)
$36.32¢18 158
1
#22
91052-MCF-003
BEARING, RADIAL BALL (6005)
$16.03¢8 015
1
#23
91053-MAZ-003
BEARING, RADIAL BALL (6205X2)
$18.46¢9 229
1
#24
91254-MEE-003
DUST SEAL (35X52X7.5)
$7.72¢3 858
1
#25
91352-MCF-003
O-RING (51X2)
$4.21¢2 105
1
