HANDLE LEVER SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

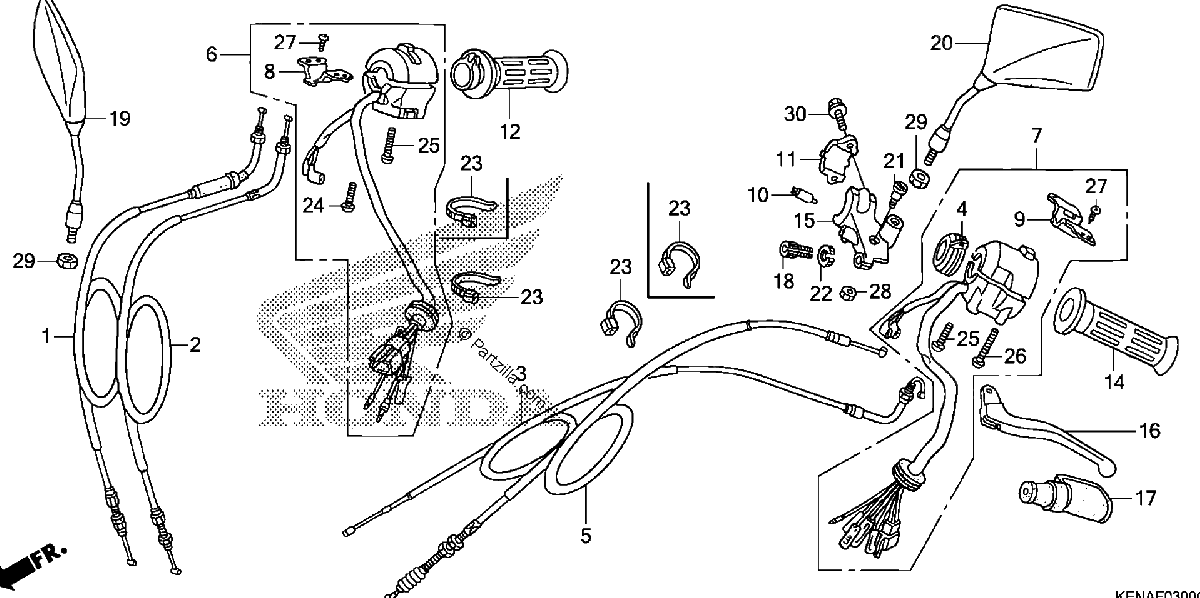

Diagrama de HANDLE LEVER SWITCH CABLE

Repuestos

#001
17910-KEN-670
CABLE A, THROTTLE
$50.74¢25 369
1
#1
17910-KEN-670
CABLE A, THROTTLE
$50.74¢25 369
1
#2
17920-KEN-670
CABLE B, THROTTLE
$50.74¢25 369
1
#002
17920-KEN-670
CABLE B, THROTTLE
$50.74¢25 369
1
#003
17950-KEN-670
CABLE, CHOKE
$39.35¢19 675
1
#3
17950-KEN-670
CABLE, CHOKE
$39.35¢19 675
1
#4
17962-KE8-701
LEVER, CHOKE
No Disponible
1
#4
17962-ML7-003
LEVER, CHOKE
No Disponible
1
#004
17962-ML7-003
LEVER, CHOKE
No Disponible
1
#005
22870-KEN-670
CABLE, CLUTCH
$41.19¢20 594
1
#5
22870-KEN-670
CABLE, CLUTCH
$41.19¢20 594
1
#006
35013-KEN-670
SWITCH ASSY., STARTER STOP
$172.66¢86 331
1
#6
35013-KEN-670
SWITCH ASSY., STARTER STOP
$172.66¢86 331
1
#7
35020-KEN-670
SWITCH SET, TURN SIGNAL
$210.60¢105 300
1
#007
35020-KEN-670
SWITCH SET, TURN SIGNAL
$210.60¢105 300
1
#8
35152-KE8-703
PLATE, STOP SWITCH SETTING
$9.80¢4 900
1
#008
35152-KE8-703
PLATE, STOP SWITCH SETTING
$9.80¢4 900
1
#9
35204-KE8-702
PLATE, TURN SIGNAL SWITCH SETTING
$12.60¢6 300
1
#009
35204-KE8-702
PLATE, TURN SIGNAL SWITCH SETTING
$12.60¢6 300
1
#10
35330-413-003
SWITCH, FR. LEVER (TOYO DENSO)
$25.44¢12 719
1
#010
35330-413-003
SWITCH, FR. LEVER (TOYO DENSO)
$25.44¢12 719
1
#11
45516-KR3-900
HOLDER, MASTER CYLINDER
$37.19¢18 594
1
#011
45516-KR3-900
HOLDER, MASTER CYLINDER
$37.19¢18 594
1
#12
53140-KR3-600
GRIP, THROTTLE
$29.13¢14 563
1
#012
53140-KR3-600
GRIP, THROTTLE
$29.13¢14 563
1
#012
53140-KR3-305
GRIP, THROTTLE (COO)
$29.13¢14 563
1
#12
53140-KR3-305
GRIP, THROTTLE (COO)
$29.13¢14 563
1
#14
53166-KR3-305
GRIP, L HANDLE (COO)
$13.89¢6 944
1
#014
53166-KR3-305
GRIP, L HANDLE (COO)
$13.89¢6 944
1
#014
53166-KR3-680
GRIP, L. HANDLE
$14.46¢7 231
1
#14
53166-KR3-680
GRIP, L. HANDLE
$14.46¢7 231
1
#15
53172-KR3-900
BRACKET, HANDLE LEVER
$81.95¢40 975
1
#015
53172-KR3-900
BRACKET, HANDLE LEVER
$81.95¢40 975
1
#16
53178-KYJ-305
LEVER, L HANDLE (COO)
$19.74¢9 869
1
#016
53178-KYJ-305
LEVER, L HANDLE (COO)
$19.74¢9 869
1
#16
53178-KV0-000
LEVER, L. HANDLE
$21.45¢10 725
1
#16
53178-KV0-305
LEVER, L. HANDLE (COO)
$21.45¢10 725
1
#016
53178-KV0-000
LEVER, L. HANDLE
$21.45¢10 725
1
#017
53180-425-010
BOOT, HANDLE LEVER
$21.39¢10 694
1
#17
53180-425-010
BOOT, HANDLE LEVER
$21.39¢10 694
1
#018
53192-268-000
BOLT, WIRE ADJUSTING
$7.92¢3 963
1
#18
53192-268-000
BOLT, WIRE ADJUSTING
$7.92¢3 963
1
#019
88210-KR3-000
MIRROR, R. BACK
$117.63¢58 813
1
#19
88210-KR3-000
MIRROR, R. BACK
$117.63¢58 813
1
#20
88220-KR3-000
MIRROR, L BACK
$117.63¢58 813
1
#020
88220-KR3-000
MIRROR, L BACK
$117.63¢58 813
1
#021
90113-438-000
BOLT, L HANDLEBAR LEVER PIVOT
$9.20¢4 600
1
#21
90113-438-000
BOLT, L HANDLEBAR LEVER PIVOT
$9.20¢4 600
1
#22
90321-MA6-750
NUT, FIXING
$12.13¢6 063
1
#022
90321-MA6-750
NUT, FIXING
$12.13¢6 063
1
#023
90652-KT1-771
BAND, WIRE (BLACK)
$5.42¢2 713
1
#23
90652-KT1-771
BAND, WIRE (BLACK)
$5.42¢2 713
1
#24
93892-05020-07
SCREW-WASHER (5X20)
$1.11¢556
1
#024
93892-05020-07
SCREW-WASHER (5X20)
$1.11¢556
1
#25
93892-05028-07
SCREW-WASHER (5X28)
$1.13¢563
1
#025
93892-05028-07
SCREW-WASHER (5X28)
$1.13¢563
1
#026
93892-05045-07
SCREW-WASHER (5X45)
$1.66¢831
1
#26
93892-05045-07
SCREW-WASHER (5X45)
$1.66¢831
1
#027
93901-32120
SCREW, TAPPING (3X8)
$1.01¢506
1
#27
93901-32120
SCREW, TAPPING (3X8)
$1.01¢506
1
#28
94001-06000-0S
NUT, HEX. (6MM)
$1.68¢838
1
#028
94001-06000-0S
NUT, HEX. (6MM)
$1.68¢838
1
#028
94001-06200-0S
NUT, HEX. (6MM)
$1.68¢838
1
#28
94001-06200-0S
NUT, HEX. (6MM)
$1.68¢838
1
#029
94031-10020
NUT, HEX. (10MM)
$1.25¢625
1
#29
94031-10020
NUT, HEX. (10MM)
$1.25¢625
1
#30
96001-06022-02
BOLT, FLANGE (6X22)
$3.15¢1 575
1
#030
96001-06022-02
BOLT, FLANGE (6X22)
$3.15¢1 575
1
