CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

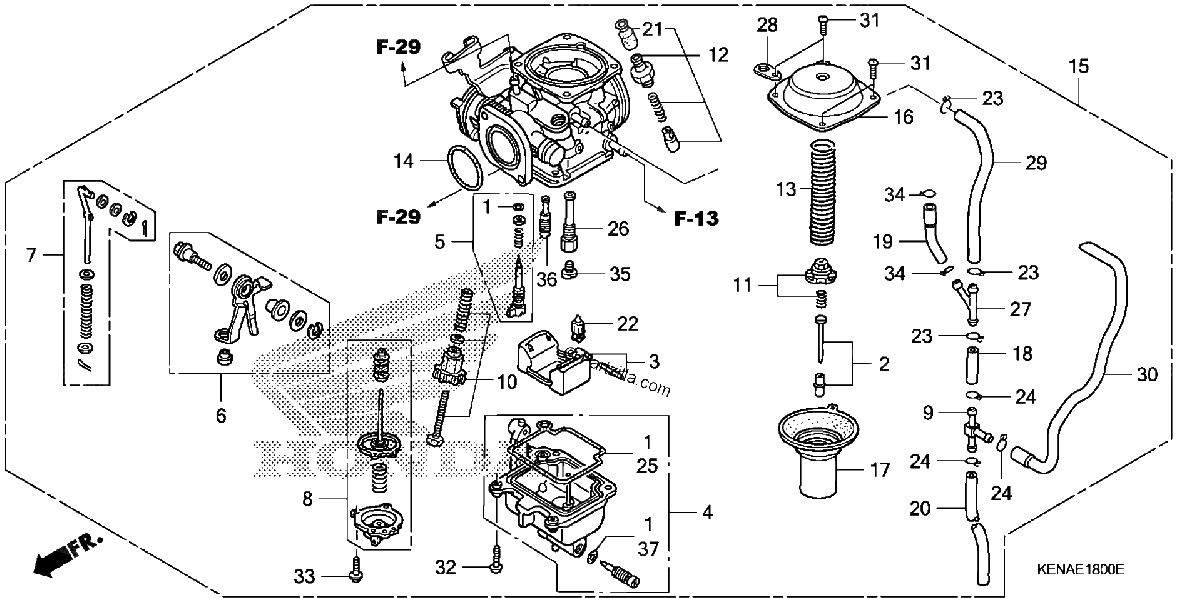

Diagrama de CARBURETOR

Repuestos

#001
16010-KEN-B11
GASKET SET
$26.15¢13 075
1
#1
16010-KEN-B11
GASKET SET
$26.15¢13 075
1
#002
16012-KEN-620
NEEDLE SET, JET
$54.66¢27 330
1
#2
16012-KEN-620
NEEDLE SET, JET
$54.66¢27 330
1
#3
16013-KR3-980
FLOAT SET
$59.03¢29 515
1
#003
16013-KR3-980
FLOAT SET
$59.03¢29 515
1
#4
16015-KEN-B11
CHAMBER SET, FLOAT
$147.33¢73 663
1
#004
16015-KEN-B11
CHAMBER SET, FLOAT
$147.33¢73 663
1
#5
16016-KEN-670
SCREW SET
$31.21¢15 606
1
#005
16016-KEN-670
SCREW SET
$31.21¢15 606
1
#006
16017-KEN-620
LINK SET
$44.02¢22 011
1
#6
16017-KEN-620
LINK SET
$44.02¢22 011
1
#007
16019-K17-681
ROD SET, PUMP
$18.92¢9 459
1
#007
16019-KEN-620
ROD SET, PUMP
$18.92¢9 459
1
#7
16019-KEN-620
ROD SET, PUMP
$18.92¢9 459
1
#8
16021-KEN-620
DIAPHRAGM SET, PUMP
$129.03¢64 515
1
#008
16021-KEN-620
DIAPHRAGM SET, PUMP
$129.03¢64 515
1
#009
16026-MN8-004
T-JOINT
$51.57¢25 783
1
#9
16026-MN8-004
T-JOINT
$51.57¢25 783
1
#010
16028-KR3-980
SCREW SET
$55.50¢27 749
1
#10
16028-KR3-980
SCREW SET
$55.50¢27 749
1
#011
16037-KEN-620
PLATE SET, VALVE
$25.22¢12 610
1
#11
16037-KEN-620
PLATE SET, VALVE
$25.22¢12 610
1
#12
16046-KEN-620
VALVE SET, STARTER
$67.93¢33 965
1
#012
16046-KEN-620
VALVE SET, STARTER
$67.93¢33 965
1
#013
16050-KBG-770
SPRING, COMPRESSION COIL
$19.20¢9 603
1
#13
16050-KBG-770
SPRING, COMPRESSION COIL
$19.20¢9 603
1
#014
16075-GHB-B70
O-RING (2.4X29)
$8.72¢4 358
1
#14
16075-GHB-B70
O-RING (2.4X29)
$8.72¢4 358
1
#015
16100-KEN-H01
CARBURETOR ASSY. (VE36C A)
$579.48¢289 742
1
#15
16100-KEN-H01
CARBURETOR ASSY. (VE36C A)
$579.48¢289 742
1
#16
16107-KW4-003
TOP
$53.35¢26 674
1
#016
16107-KW4-003
TOP
$53.35¢26 674
1
#17
16111-KBG-770
PISTON, VACUUM
$195.19¢97 595
1
#017
16111-KBG-770
PISTON, VACUUM
$195.19¢97 595
1
#18
16143-KBG-670
TUBE
$7.58¢3 789
1
#018
16143-KBG-670
TUBE
$7.58¢3 789
1
#19
16143-KR3-751
TUBE
$6.67¢3 335
1
#019
16143-KR3-751
TUBE
$6.67¢3 335
1
#20
16144-KBG-670
TUBE
$15.87¢7 935
1
#020
16144-KBG-670
TUBE
$15.87¢7 935
1
#021
16148-KB1-921
CAP, CABLE SEALING
$20.73¢10 367
1
#21
16148-KB1-921
CAP, CABLE SEALING
$20.73¢10 367
1
#22
16155-397-971
VALVE, FLOAT
$44.27¢22 138
1
#022
16155-397-971
VALVE, FLOAT
$44.27¢22 138
1
#23
16163-GHB-600
CLIP, TUBE
$2.45¢1 225
1
#023
16163-GHB-600
CLIP, TUBE
$2.45¢1 225
1
#024
16163-GHB-610
CLIP, TUBE
$2.15¢1 075
1
#24
16163-GHB-610
CLIP, TUBE
$2.15¢1 075
1
#25
16163-HM3-A61
GASKET, FLOAT CHAMBER
$10.06¢5 031
1
#025
16163-HM3-A61
GASKET, FLOAT CHAMBER
$10.06¢5 031
1
#26
16165-KBG-770
HOLDER, NEEDLE JET
$38.21¢19 107
1
#026
16165-KBG-770
HOLDER, NEEDLE JET
$38.21¢19 107
1
#027
16180-ML6-671
JOINT
$17.05¢8 527
1
#27
16180-ML6-671
JOINT
$17.05¢8 527
1
#028
16186-KBG-670
PLATE, SET
$6.61¢3 306
1
#28
16186-KBG-670
PLATE, SET
$6.61¢3 306
1
#029
16198-KBG-670
TUBE, OVERFLOW
$10.99¢5 497
1
#29
16198-KBG-670
TUBE, OVERFLOW
$10.99¢5 497
1
#030
16198-KEN-670
TUBE
$25.17¢12 587
1
#30
16198-KEN-670
TUBE
$25.17¢12 587
1
#031
93500-04008-0A
SCREW, PAN (4X8)
$1.03¢518
1
#31
93500-04008-0A
SCREW, PAN (4X8)
$1.03¢518
1
#031
93500-04008-1A
SCREW, PAN (4X8)
$1.03¢518
1
#31
93500-04008-1A
SCREW, PAN (4X8)
$1.03¢518
1
#32
93500-04014-1A
SCREW, PAN (4X14)
$0.93¢466
1
#032
93500-04014-0A
SCREW, PAN (4X14)
$0.93¢466
1
#32
93500-04014-0A
SCREW, PAN (4X14)
$0.93¢466
1
#032
93500-04014-1A
SCREW, PAN (4X14)
$0.93¢466
1
#33
93892-04012-00
SCREW-WASHER (4X12)
$0.79¢397
1
#033
93892-04012-00
SCREW-WASHER (4X12)
$0.79¢397
1
#33
93892-04012-10
SCREW-WASHER (4X12)
$0.79¢397
1
#033
93892-04012-10
SCREW-WASHER (4X12)
$0.79¢397
1
#34
95002-02089
CLIP, TUBE (B1 8)
$1.23¢615
1
#034
95002-02089
CLIP, TUBE (B1 8)
$1.23¢615
1
#35
99101-GHB-1080
JET, MAIN (#108)
$9.61¢4 807
1
#035
99101-MAZ-1080
JET, MAIN (#108)
$9.61¢4 807
1
#035
99101-GHB-1080
JET, MAIN (#108)
$9.61¢4 807
1
#36
99104-MAZ-0380
JET, SLOW (#38)
$19.25¢9 625
1
#36
99103-MA1-0380
JET, SLOW (#38)
$19.25¢9 625
1
#036
99104-MAZ-0380
JET, SLOW (#38)
$19.25¢9 625
1
#036
99103-MA1-0380
JET, SLOW (#38)
$19.25¢9 625
1
#37
16075-GHB-640
O-RING (1.3X4.3)
$3.36¢1 679
1
#037
16075-GHB-640
O-RING (1.3X4.3)
$3.36¢1 679
1
