FRONT WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

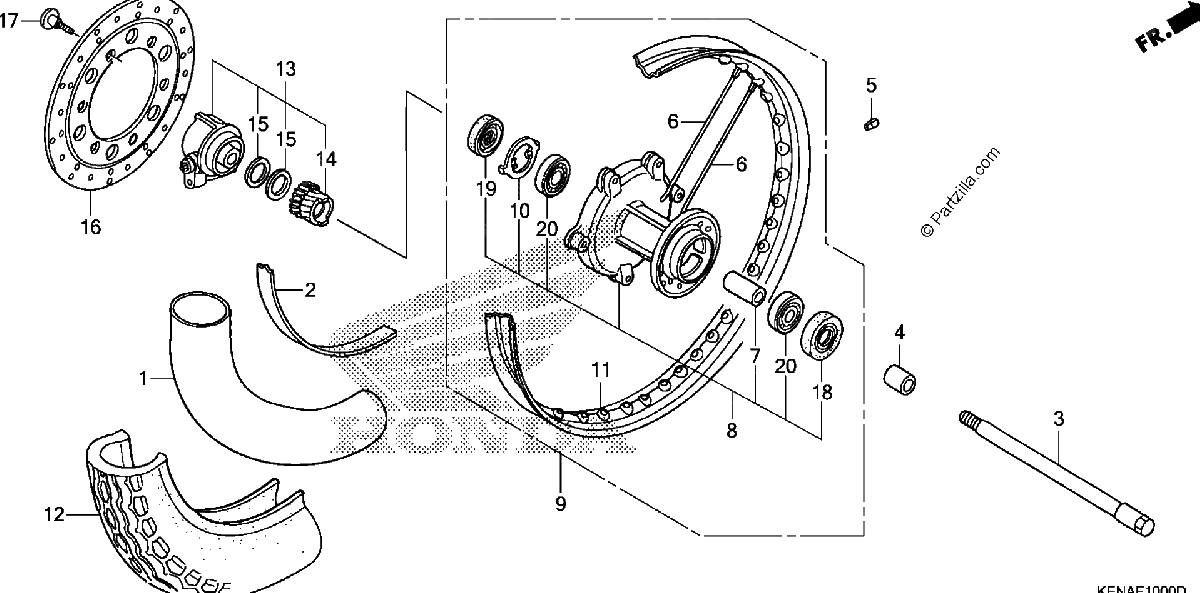

Diagrama de FRONT WHEEL

Repuestos

#1
44712-KR3-601
TUBE, TIRE (3.00-18) (BS)
$73.94¢36 969
1
#001
44712-KR3-601
TUBE, TIRE (3.00-18) (BS)
$73.94¢36 969
1
#1
44712-KR3-602
TUBE, TIRE (3.00-18 1805B) (DUNLOP)
$73.94¢36 969
1
#001
44712-KR3-602
TUBE, TIRE (3.00-18 1805B) (DUNLOP)
$73.94¢36 969
1
#2
42713-304-003
FLAP, TIRE (BS)
$8.10¢4 050
1
#002
42713-304-003
FLAP, TIRE (BS)
$8.10¢4 050
1
#002
42713-KZ3-611
FLAP, TIRE (DUNLOP)
$7.16¢3 581
1
#002
44713-300-004
FLAP, TIRE (DUNLOP)
$7.16¢3 581
1
#2
44713-300-004
FLAP, TIRE (DUNLOP)
$7.16¢3 581
1
#3
44301-MC5-000
AXLE, Front WHEEL
$63.59¢31 794
1
#003
44301-MC5-000
AXLE, Front WHEEL
$63.59¢31 794
1
#4
44311-KEB-900
COLLAR, Front WHEEL SIDE
$19.45¢9 725
1
#004
44311-KEB-900
COLLAR, Front WHEEL SIDE
$19.45¢9 725
1
#005
42704-MEG-003
WEIGHT, BALANCE (15G)
$9.80¢4 900
1
#5
42704-MEG-003
WEIGHT, BALANCE (15G)
$9.80¢4 900
1
#5
42705-MEG-003
WEIGHT, BALANCE (20G)
$9.80¢4 900
1
#005
42705-MEG-003
WEIGHT, BALANCE (20G)
$9.80¢4 900
1
#006
44610-KR3-405
SPOKE SET, FR. (A10X202.5)
$9.46¢4 731
1
#6
44610-KR3-405
SPOKE SET, FR. (A10X202.5)
$9.46¢4 731
1
#007
44620-KR3-000
COLLAR, FR. AXLE DISTANCE
$13.66¢6 831
1
#7
44620-KR3-000
COLLAR, FR. AXLE DISTANCE
$13.66¢6 831
1
#008
44635-KEN-A30
HUB SUB-ASSY., FR.
$378.75¢189 375
1
#8
44635-KEN-A30
HUB SUB-ASSY., FR.
$378.75¢189 375
1
#009
44650-KEB-325
WHEEL SUB-ASSY., FR.
No Disponible
1
#9
44650-KEB-325
WHEEL SUB-ASSY., FR.
No Disponible
1
#010
44680-410-000
RETAINER, GEAR BOX
$7.04¢3 519
1
#10
44680-410-000
RETAINER, GEAR BOX
$7.04¢3 519
1
#11
44701-KR3-023
RIM, Front WHEEL
$101.72¢50 863
1
#011
44701-KR3-023
RIM, Front WHEEL
$101.72¢50 863
1
#012
44711-KR3-U03
TIRE, FR. (3.00-18) (4PR/47P F11) (DUNLOP)
$218.40¢109 200
1
#012
44711-KR3-U04
TIRE, Front. (3.00-18)
$218.40¢109 200
1
#12
44711-KR3-U03
TIRE, FR. (3.00-18) (4PR/47P F11) (DUNLOP)
$218.40¢109 200
1
#12
44711-KR3-609
TIRE, Front. (3.00-18) (4PR/47P L303A) (BS)
$222.29¢111 144
1
#012
44711-KR3-609
TIRE, Front. (3.00-18) (4PR/47P L303A) (BS)
$222.29¢111 144
1
#13
44800-KBV-003
BOX Assembly., SPEEDOMETER GEAR
$118.52¢59 262
1
#013
44800-KBV-003
BOX Assembly., SPEEDOMETER GEAR
$118.52¢59 262
1
#014
44806-KBV-003
GEAR, SPEEDOMETER
$37.46¢18 731
1
#14
44806-KBV-003
GEAR, SPEEDOMETER
$37.46¢18 731
1
#15
44809-402-000
WASHER, SPEEDOMETER GEAR
$3.01¢1 506
1
#015
44809-402-000
WASHER, SPEEDOMETER GEAR
$3.01¢1 506
1
#16
45251-KR3-000
DISK, Front BRAKE
$528.46¢264 231
1
#016
45251-KR3-000
DISK, Front BRAKE
$528.46¢264 231
1
#17
90105-MV9-003
BOLT, BRAKE DISK (8X24) (TSUKIBOSHI)
$7.52¢3 762
1
#017
90105-MV9-003
BOLT, BRAKE DISK (8X24) (TSUKIBOSHI)
$7.52¢3 762
1
#018
91252-MC7-003
DUST SEAL (22X42X7) (ARAI)
$9.04¢4 519
1
#18
91252-MC7-003
DUST SEAL (22X42X7) (ARAI)
$9.04¢4 519
1
#19
91258-410-013
DUST SEAL (40X50X5) (ARAI)
$11.46¢5 731
1
#019
91258-410-013
DUST SEAL (40X50X5) (ARAI)
$11.46¢5 731
1
#020
96140-63020-10
BEARING, RADIAL BALL (6302U)
$17.96¢8 981
1
#20
96140-63020-10
BEARING, RADIAL BALL (6302U)
$17.96¢8 981
1
#020
96150-63020-10
BEARING, RADIAL BALL (6302UU)
$17.96¢8 981
1
#20
96150-63020-10
BEARING, RADIAL BALL (6302UU)
$17.96¢8 981
1
