FRONT BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

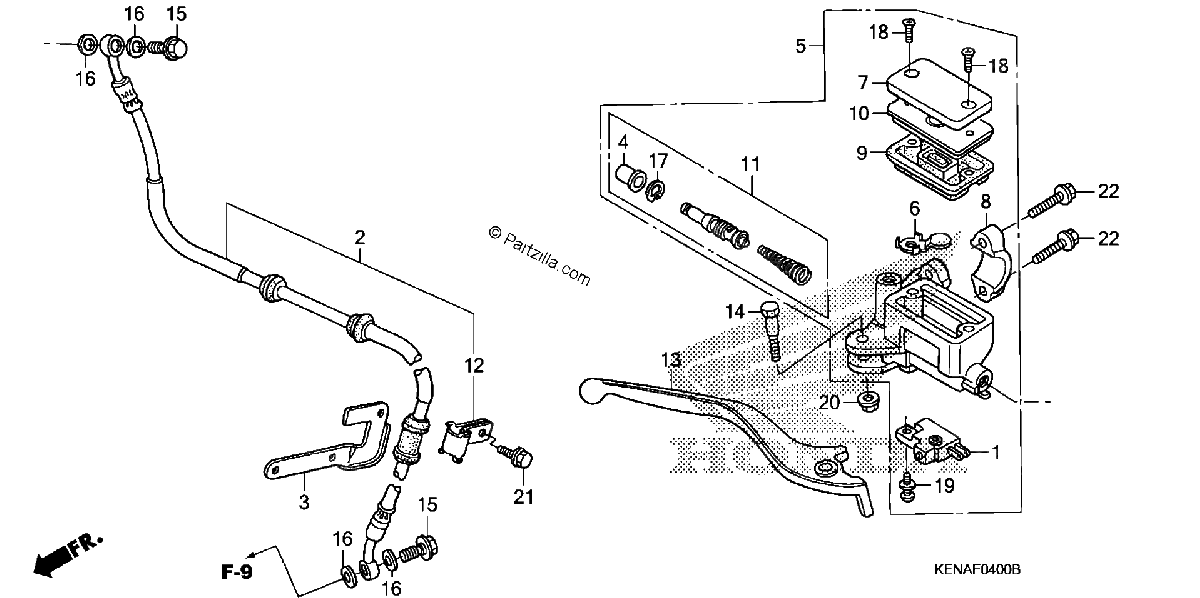

Diagrama de FRONT BRAKE MASTER CYLINDER

Repuestos

#001
35340-MA5-671
SWITCH ASSY., FR. STOP
$26.16¢13 081
1
#1
35340-MA5-671
SWITCH ASSY., FR. STOP
$26.16¢13 081
1
#002
45126-KEN-A11
HOSE, FR. BRAKE
$81.12¢40 561
1
#2
45126-KEN-A11
HOSE, FR. BRAKE
$81.12¢40 561
1
#003
45131-KEB-900
STAY, FR. BRAKE HOSE CLAMP
$11.38¢5 693
1
#3
45131-KEB-900
STAY, FR. BRAKE HOSE CLAMP
$11.38¢5 693
1
#004
45504-410-003
BOOT
$13.10¢6 549
1
#4
45504-410-003
BOOT
$13.10¢6 549
1
#005
45510-K17-305
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)
$323.53¢161 765
1
#5
45510-K17-305
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)
$323.53¢161 765
1
#005
45510-KEN-671
MASTER CYLINDER SUB-ASSY., FR. BRAKE
$323.53¢161 765
1
#5
45510-KEN-671
MASTER CYLINDER SUB-ASSY., FR. BRAKE
$323.53¢161 765
1
#6
45512-MA6-006
PROTECTOR
$4.78¢2 392
1
#006
45512-MA6-006
PROTECTOR
$4.78¢2 392
1
#7
45513-KC2-961
CAP, MASTER CYLINDER (NOT AVAILABLE)
No Disponible
1
#007
45513-KC2-961
CAP, MASTER CYLINDER (NOT AVAILABLE)
No Disponible
1
#008
45517-KR3-901
HOLDER, MASTER CYLINDER
$24.77¢12 385
1
#8
45517-KR3-901
HOLDER, MASTER CYLINDER
$24.77¢12 385
1
#9
45520-MG7-006
DIAPHRAGM
$11.33¢5 664
1
#009
45520-MG7-006
DIAPHRAGM
$11.33¢5 664
1
#010
45521-HA2-006
PLATE, DIAPHRAGM
$11.59¢5 796
1
#10
45521-HA2-006
PLATE, DIAPHRAGM
$11.59¢5 796
1
#11
45530-471-831
MASTER CYLINDER SET
$42.69¢21 344
1
#011
45530-471-831
MASTER CYLINDER SET
$42.69¢21 344
1
#012
52115-ML8-670
CLAMP, BRAKE HOSE
$6.43¢3 214
1
#12
52115-ML8-670
CLAMP, BRAKE HOSE
$6.43¢3 214
1
#013
53175-K17-305
LEVER, R. HANDLEBAR (COO)
$39.16¢19 579
1
#13
53175-K17-305
LEVER, R. HANDLEBAR (COO)
$39.16¢19 579
1
#014
90114-166-006
BOLT, HANDLE LEVER PIVOT
$7.24¢3 622
1
#14
90114-166-006
BOLT, HANDLE LEVER PIVOT
$7.24¢3 622
1
#015
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#15
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#16
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#016
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#017
90651-MA5-671
CIRCLIP
$2.85¢1 426
1
#17
90651-MA5-671
CIRCLIP
$2.85¢1 426
1
#18
93600-04012-1G
SCREW, FLAT (4X12)
$1.07¢535
1
#018
93600-04012-0G
SCREW, FLAT (4X12)
$1.07¢535
1
#018
93600-04012-1G
SCREW, FLAT (4X12)
$1.07¢535
1
#18
93600-04012-0G
SCREW, FLAT (4X12)
$1.07¢535
1
#019
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#19
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#019
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
#19
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
#020
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#20
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#21
95701-06014-07
BOLT, FLANGE (6X14)
$1.63¢816
1
#021
95701-06014-07
BOLT, FLANGE (6X14)
$1.63¢816
1
#22
96001-06022-02
BOLT, FLANGE (6X22)
$2.90¢1 449
1
#022
96001-06022-02
BOLT, FLANGE (6X22)
$2.90¢1 449
1
