LEFT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

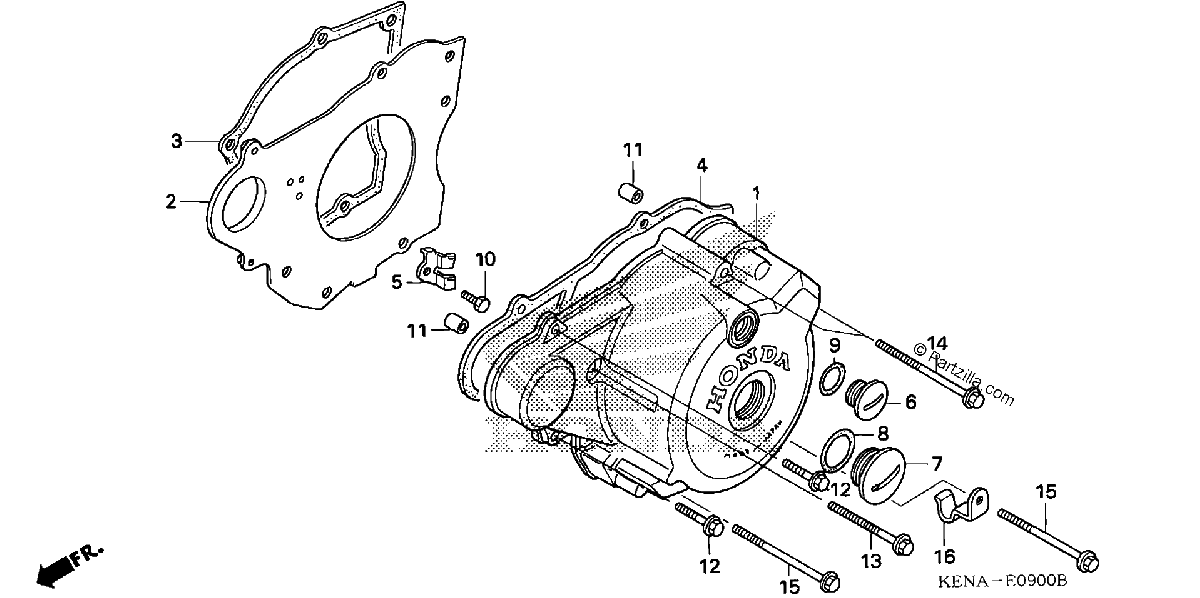

Diagrama de LEFT CRANKCASE COVER

Repuestos

#1
11341-KB4-700
COVER, L CRANKCASE
$237.43¢118 715
1
#001
11341-KB4-700
COVER, L CRANKCASE
$237.43¢118 715
1
#002
11371-KB4-670
SPACER, L. SIDE
$112.57¢56 287
1
#2
11371-KB4-670
SPACER, L. SIDE
$112.57¢56 287
1
#3
11394-KBG-772
GASKET, L. CRANKCASE COVER
$14.20¢7 101
1
#003
11394-KBG-773
GASKET, Left
$14.20¢7 101
1
#003
11394-KBG-772
GASKET, L. CRANKCASE COVER
$14.20¢7 101
1
#3
11394-KBG-771
GASKET, L CRANKCASE COVER
$14.20¢7 101
1
#003
11394-KBG-771
GASKET, L CRANKCASE COVER
$14.20¢7 101
1
#004
11395-KBG-771
GASKET, L. SIDE SPACER
$14.24¢7 119
1
#4
11395-KBG-771
GASKET, L. SIDE SPACER
$14.24¢7 119
1
#4
11395-KBG-772
GASKET, L. SIDE SPACER
$14.24¢7 119
1
#5
28117-402-000
PLATE, STARTING SPROCKET SETTING
$3.36¢1 679
1
#005
28117-402-000
PLATE, STARTING SPROCKET SETTING
$3.36¢1 679
1
#006
90084-471-000
CAP, ALTERNATOR
No Disponible
1
#6
90084-471-000
CAP, ALTERNATOR
No Disponible
1
#007
90087-MR1-000
CAP (30MM)
$21.24¢10 620
1
#7
90087-471-000
CAP (30MM)
$24.98¢12 489
1
#007
90087-471-000
CAP (30MM)
$24.98¢12 489
1
#8
91302-567-003
O-RING (27.4X2.4) (ARAI)
$8.88¢4 439
1
#008
91302-567-003
O-RING (27.4X2.4) (ARAI)
$8.88¢4 439
1
#008
91302-567-005
O-RING (27.4X2.4) (NOK)
$8.88¢4 439
1
#8
91302-567-005
O-RING (27.4X2.4) (NOK)
$8.88¢4 439
1
#9
91303-377-000
O-RING (13.8X2.5)
$3.82¢1 909
1
#009
91303-377-000
O-RING (13.8X2.5)
$3.82¢1 909
1
#010
93101-06010-0A
BOLT, HEX. (6X10)
$0.74¢368
1
#10
93101-06010-0A
BOLT, HEX. (6X10)
$0.74¢368
1
#011
94301-08140
PIN, DOWEL (8X14)
$2.66¢1 328
1
#11
94301-08140
PIN, DOWEL (8X14)
$2.66¢1 328
1
#012
96001-06020-00
BOLT, FLANGE (6X20)
$1.47¢736
1
#12
96001-06020-00
BOLT, FLANGE (6X20)
$1.47¢736
1
#13
96001-06040-00
BOLT, FLANGE (6X40)
$2.56¢1 282
1
#013
96001-06040-00
BOLT, FLANGE (6X40)
$2.56¢1 282
1
#014
96001-06050-00
BOLT, FLANGE (6X50)
$2.56¢1 282
1
#14
96001-06050-00
BOLT, FLANGE (6X50)
$2.56¢1 282
1
#015
96001-06065-00
BOLT, FLANGE (6X65)
$2.77¢1 386
1
#15
96001-06065-00
BOLT, FLANGE (6X65)
$2.77¢1 386
1
#16
32911-KB4-670
CLIP, STARTER MOTOR CABLE
$6.64¢3 318
1
#016
32911-KB4-670
CLIP, STARTER MOTOR CABLE
$6.64¢3 318
1
