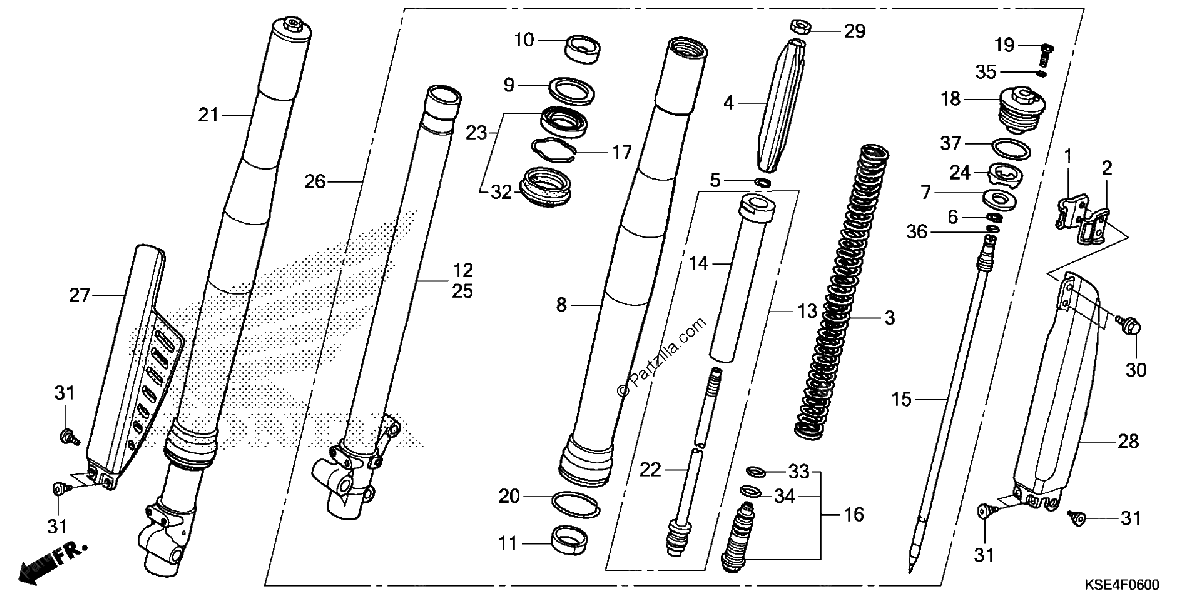

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CLAMP A, FR. BRAKE HOSE
$11.45¢5 727
#2
CLAMP B, FR. BRAKE HOSE
$10.07¢5 037
#3
SPRING, FR. FORK (3.33N/MM,0.34KGF/MM)
$78.90¢39 451
#3
SPRING, FR. FORK (3.53N/MM,0.36KGF/MM)
$82.45¢41 228
#3
SPRING, FR. FORK (3.14N/MM,0.32KGF/MM)
$68.29¢34 143
#4
GUIDE, SPRING
$30.38¢15 192
#5
RING, STOPPER
$4.99¢2 496
#6
RING, STOPPER
$2.83¢1 414
#7
SEAT, SPRING
$5.83¢2 915
#8
TUBE (OUTER)
$445.29¢222 646
#8
TUBE (OUTER) (COO)
$445.29¢222 646
#9
RING, BACK-UP
$7.85¢3 927
#10
BUSH, GUIDE
$11.05¢5 526
#11
BUSH, SLIDER
$9.58¢4 790
#12
PIPE, R. SLIDE
$337.46¢168 728
#13
DAMPER, FR.
$207.11¢103 557
#14
DAMPER SUB, FR.
$146.85¢73 428
#15
NEEDLE, REBOUND
$36.67¢18 337
#16
BOLT, CENTER (SHOWA)
$81.06¢40 532
#17
RING, OIL SEAL STOPPER
$4.21¢2 105
#18
BOLT, FR. FORK
$65.09¢32 545
#19
BOLT, PLUG
$10.30¢5 152
#20
RING, WEAR
$3.85¢1 926
#21
FORK SUB-ASSY., R. FR. (COO)
$1030.43¢515 217
#22
ROD, PISTON
$94.92¢47 461
#23
SEAL SET, FR. FORK
$26.16¢13 081
#24
RUBBER, STOPPER
$6.91¢3 456
#25
PIPE, L. SLIDE
$337.46¢168 728
#26
FORK SUB-ASSY., L. FR. (COO)
$1030.43¢515 217
#27
PROTECTOR, R. FR. FORK *TNATURAL* (NATURAL)
$67.97¢33 983
#28
PROTECTOR, L. FR. FORK *TNATURAL* (NATURAL)
$67.97¢33 983
#29
NUT, HEX. (10MM)
$2.94¢1 472
#30
BOLT, FLANGE (6MM)
$3.36¢1 679
#31
BOLT, PROTECTOR
$3.93¢1 967
#32
DUST SEAL
$14.27¢7 136
#33
O-RING (15.5X1.5)
$1.79¢897
#34
O-RING (18.8X1.9)
$3.22¢1 610
#35
O-RING (2.8X1.9)
$2.39¢1 196
#36
O-RING
$3.09¢1 547
#37
O-RING (37.2X2.4) (SHOWA)
$3.36¢1 679
