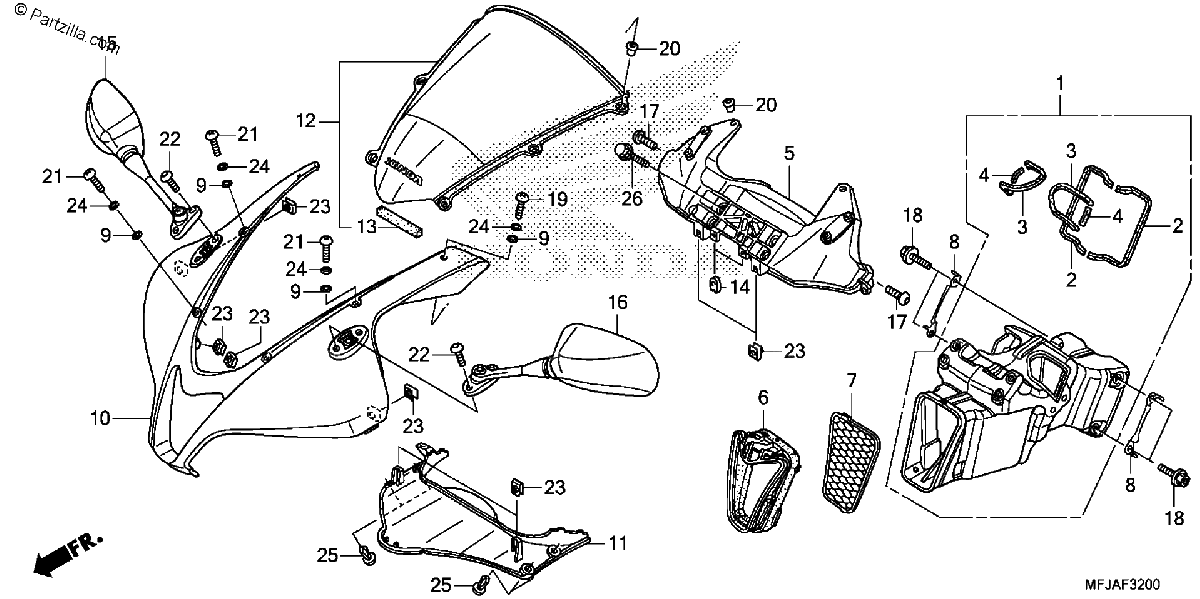

UPPER COWL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DUCT, AIR IN.
$202.18¢101 091
#2
SEAL A, AIR IN. DUCT
$3.22¢1 610
#3
SEAL C, AIR IN. DUCT
$2.36¢1 179
#4
SEAL D, AIR IN. DUCT
$1.38¢690
#5
STAY, MIRROR METER
$110.66¢55 332
#6
ATTACHMENT, DUCT
$18.27¢9 137
#7
GRILL, AIR IN. DUCT
$21.68¢10 839
#8
WASHER, TONGUED
$3.99¢1 995
#9
WASHER, SCREEN SETTING
$2.62¢1 311
#10
COWL (UPPER) *NHB01* (GRAPHITE BLACK) (NA USE ALT:64100-MFJ-D00ZE)
No Disponible
#11
SPOILER, FR.
$9.37¢4 686
#12
WINDSCREEN SET (TYPE1) (WL)(COO)
$252.41¢126 207
#13
SEAL, SPONGE
$2.33¢1 167
#14
NUT, CLIP (4MM)
$3.36¢1 679
#15
MIRROR ASSY., R. BACK (COO)
$105.41¢52 704
#16
MIRROR ASSY., L. BACK (COO)
$89.61¢44 804
#17
BOLT, SPECIAL (6X17)
$4.08¢2 041
#18
BOLT, FLANGE (6X20)
$3.36¢1 679
#19
SCREW, TRUSS (5X15)
$2.43¢1 213
#20
NUT, COWL SETTING (5MM)
$5.04¢2 519
#21
SCREW, TRUSS (5X18)
$2.56¢1 282
#22
BOLT, SOCKET (6X13)
$2.24¢1 121
#23
NUT, CLIP (5MM)
$5.11¢2 553
#24
WASHER, THRUST (5MM)
$2.24¢1 121
#25
CLIP, BODY COVER
$3.36¢1 679
#26
BOLT, FLANGE (6X16)
$1.24¢621
