REAR BRAKE MASTER CYLINDER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

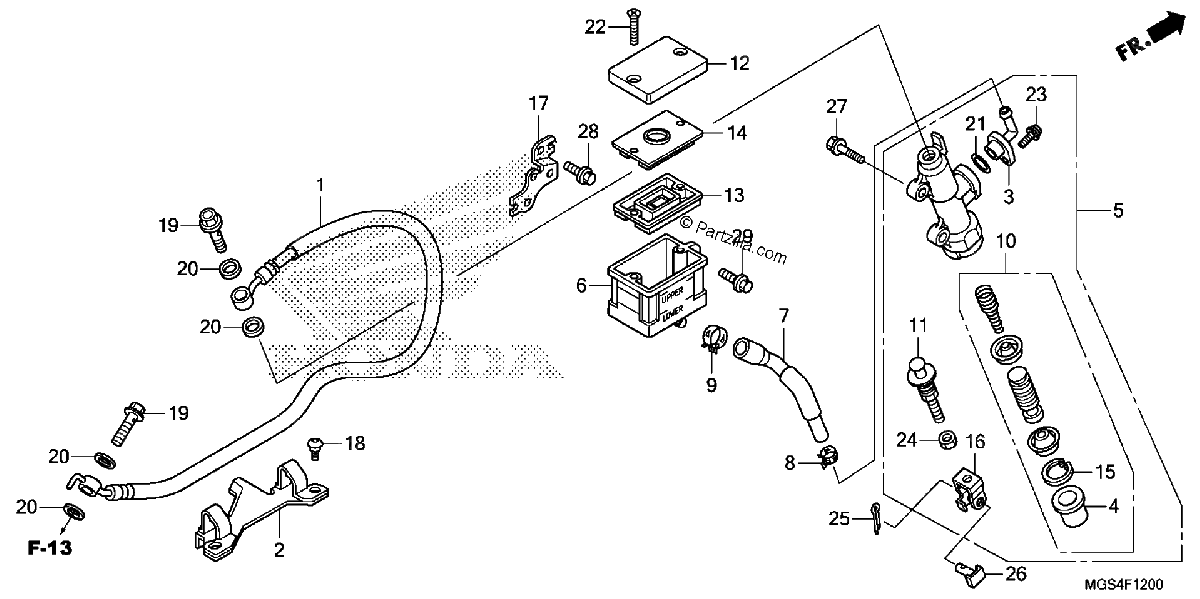

Diagrama de REAR BRAKE MASTER CYLINDER 1

Repuestos

#1
43310-MGS-D31
HOSE, RR. BRAKE
$82.73¢41 363
1
#2
43468-MGS-D30
GUIDE, RR. BRAKE HOSE
$21.35¢10 675
1
#3
43503-MER-D01
CONNECTOR, MASTER CYLINDER
$9.96¢4 981
1
#4
43504-MB2-006
BOOT
$11.74¢5 869
1
#5
43510-MGS-305
MASTER CYLINDER SUB-ASSY., RR. (COO)
$270.80¢135 400
1
#6
43511-KT8-006
CUP, OIL
$46.06¢23 031
1
#7
43512-MGS-D31
HOSE, RR. MASTER CYLINDER
$24.94¢12 469
1
#8
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
1
#9
43514-MN9-006
CLAMP, MASTER CYLINDER OIL HOSE
$19.68¢9 838
1
#10
43520-MB2-315
PISTON SET, MASTER CYLINDER (NISSIN)
$53.99¢26 994
1
#11
43530-MJ0-006
ROD, PUSH
$26.79¢13 394
1
#12
45513-HR0-305
CAP, MASTER CYLINDER (COO)
$5.04¢2 519
1
#12
45513-KK1-771
CAP, MASTER CYLINDER
$5.04¢2 519
1
#13
45520-MG7-006
DIAPHRAGM
$12.31¢6 156
1
#14
45521-HA2-006
PLATE, DIAPHRAGM
$12.60¢6 300
1
#15
46182-MEL-D21
CIRCLIP
$2.50¢1 250
1
#16
46504-KV6-702
JOINT, BRAKE ROD
$9.50¢4 750
1
#17
50601-MGS-D30
STAY, OIL CUP
$6.39¢3 194
1
#18
90114-MGE-000
SCREW, SPECIAL (5X11)
$3.34¢1 669
1
#19
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#20
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#21
91212-422-006
O-RING (14.8X2.4)
$3.30¢1 650
1
#22
93600-04040-1G
SCREW, FLAT (4X40)
$0.61¢306
1
#23
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#23
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
#24
94002-08000-0S
NUT, HEX. (8MM)
$1.60¢800
1
#25
94201-20150
PIN, SPLIT (2.0X15)
$1.34¢669
1
#26
95015-54000
PIN D, JOINT
$5.15¢2 575
1
#27
95701-06022-00
BOLT, FLANGE (6X22)
$2.31¢1 156
1
#28
96001-06012-07
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#29
96001-06014-00
BOLT, FLANGE (6X14)
$2.31¢1 156
1
