FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

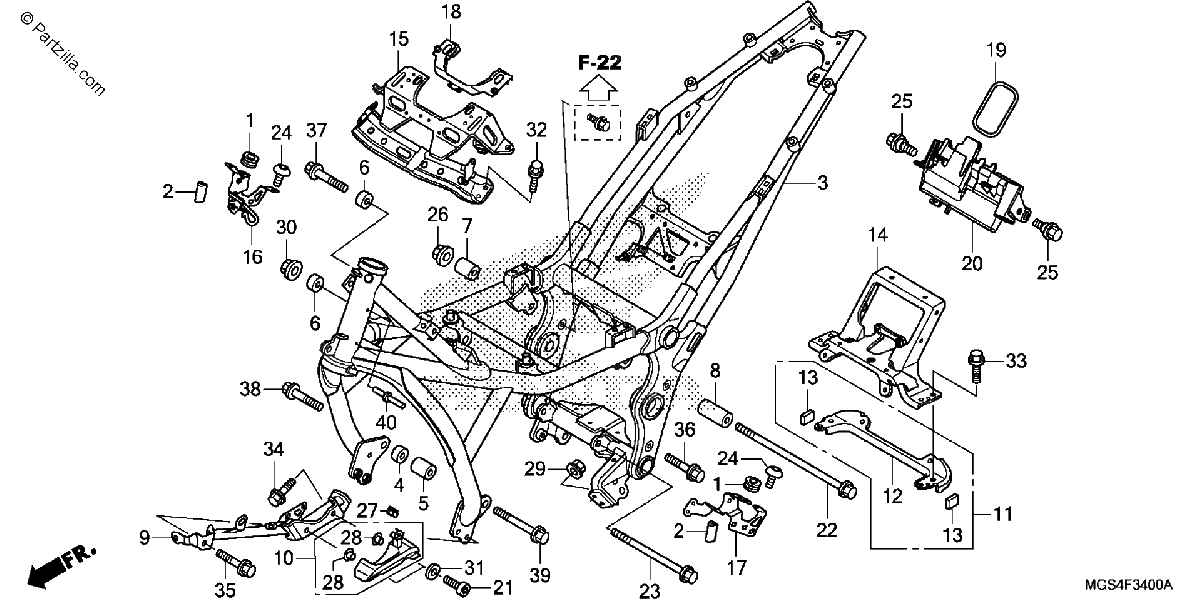

Diagrama de FRAME

Repuestos

#1
17245-107-010
RUBBER, AIR CLEANER HOUSING MOUNTING
$3.36¢1 679
1
#2
17516-KCZ-000ZB
TRIM, FUEL TANK NH1 (BLACK)
$2.39¢1 196
1
#3
50100-MGS-D30ZA
FRAME *NH389M* (MAT BULLET SILVER)
$3311.82¢1 655 908
1
#4
50191-MGS-D30
COLLAR A, R. ENGINE HANGER
$8.90¢4 451
1
#5
50192-MGS-D30
COLLAR A, L. ENGINE HANGER
$13.24¢6 618
1
#6
50193-MGS-D30
COLLAR B, ENGINE HANGER
$6.28¢3 140
1
#7
50194-MGS-D30
COLLAR C, R. ENGINE HANGER
$12.35¢6 176
1
#8
50195-MGS-D30
COLLAR C, L. ENGINE HANGER
$14.40¢7 199
1
#11
50230-MGS-D30
STAY SET, FR. TANK
$20.17¢10 085
1
#12
50232-MGS-D30
STAY, FR. TANK
$20.17¢10 085
1
#13
50233-MGS-D30
RUBBER, CROSS PLATE
$1.17¢586
1
#14
50234-MGS-T50
PLATE, CENTER CROSS
$86.12¢43 062
1
#15
50236-MGS-D30
PLATE B, CROSS
$105.80¢52 900
1
#16
50237-MGS-D30
STAY, R. AIR CLEANER HOUSING
$16.16¢8 079
1
#17
50238-MGS-D30
STAY, L. AIR CLEANER HOUSING
$13.20¢6 601
1
#18
50239-MGS-D30
RUBBER, CROSS PLATE
$9.18¢4 589
1
#19
80123-GN5-900
BAND, TOOL
$3.16¢1 581
1
#20
81230-MGS-D30
BOX, ELECTRIC CONTROL UNIT
$14.50¢7 251
1
#22
90103-MGS-D30
BOLT, FLANGE (12X276)
$23.21¢11 603
1
#23
90104-MGS-D30
BOLT, FLANGE (12X168)
$14.36¢7 182
1
#24
90106-KSE-000
SCREW, PAN (6X12)
$2.27¢1 133
1
#25
90111-162-000
BOLT, FLANGE (6MM)
$3.36¢1 679
1
#26
90364-MEJ-000
NUT, FLANGE (12MM)
$2.04¢1 018
1
#30
94050-12000
NUT, FLANGE (12MM)
$1.17¢586
1
#32
95701-06012-08
BOLT, FLANGE (6X12)
$1.83¢914
1
#33
95701-06022-08
BOLT, FLANGE (6X22)
$2.04¢1 018
1
#36
95701-12035-08
BOLT, FLANGE (12X35)
$3.75¢1 874
1
#37
95701-12045-08
BOLT, FLANGE (12X45)
$2.17¢1 087
1
#38
95701-12055-08
BOLT, FLANGE (12X55)
$3.89¢1 943
1
#39
95701-12080-08
BOLT, FLANGE (12X80)
$5.22¢2 610
1
