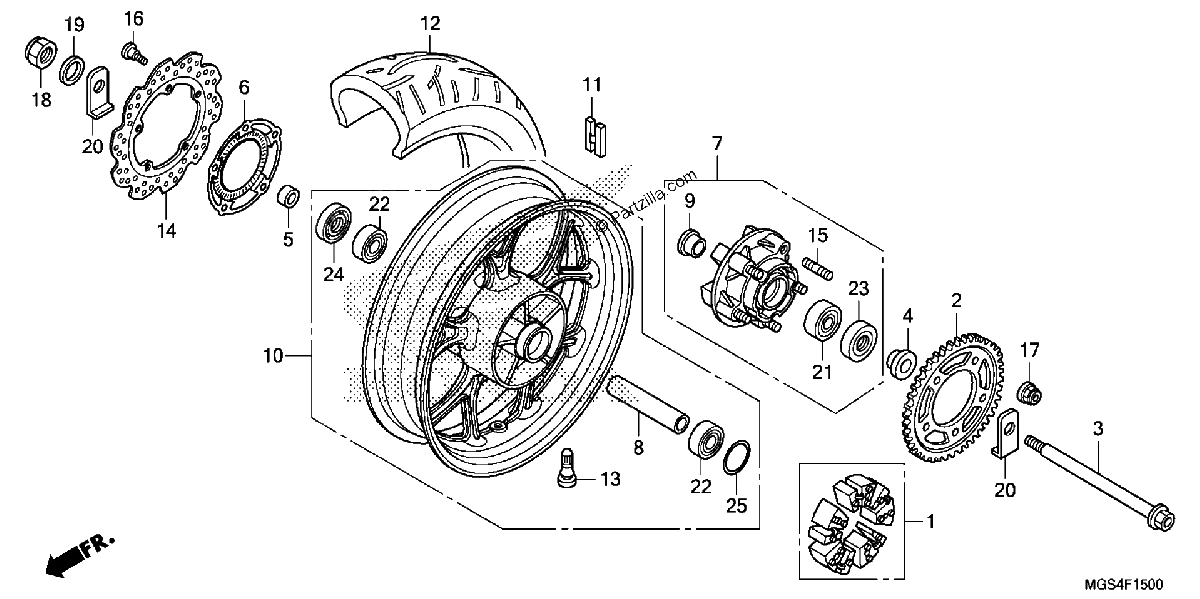

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER SET, WHEEL
$61.81¢30 906
#2
SPROCKET, FINAL DRIVEN (43T)
$76.79¢38 393
#3
AXLE, RR. WHEEL
$56.33¢28 163
#4
COLLAR, L. RR. WHEEL SIDE
$25.47¢12 736
#5
COLLAR, Rear BRAKE SIDE
$17.17¢8 585
#7
FLANGE SUB-Assembly., Rear DRIVEN
$307.82¢153 910
#8
COLLAR, RR. AXLE DISTANCE
$31.97¢15 985
#9
COLLAR B, RR. WHEEL DISTANCE
$20.80¢10 402
#10
WHEEL SUB-ASSY., RR. (COO)
$1199.53¢599 765
#11
WEIGHT, BALANCE (10G)
$10.04¢5 020
#11
WEIGHT, BALANCE (20G)
$20.62¢10 310
#11
WEIGHT, BALANCE (30G)
$20.32¢10 160
#12
TIRE, RR. (160/60ZR17 M/C 69W) (METZELER)
No Disponible
#12
TIRE, RR. (160/60ZR17 M/C 69W) (BS)
No Disponible
#13
VALVE, RIM (PIRELLI)
$8.61¢4 307
#13
VALVE, RIM (BS)
$13.60¢6 802
#14
DISK, RR. BRAKE (SUNSTAR)
$402.89¢201 445
#15
BOLT, STUD (12X25)
$4.47¢2 237
#16
BOLT, BRAKE DISK (8X24)
$6.92¢3 461
#16
BOLT, BRAKE DISK (8X24) (TSUKIBOSHI)
$6.92¢3 461
#17
NUT, FLANGE (12MM) (FUSE RASHI)
$4.30¢2 151
#18
NUT, U (18MM)
$7.60¢3 801
#19
WASHER (20X31.5X2)
$3.58¢1 788
#20
WASHER, RR. SWINGARM
$4.68¢2 340
#21
BEARING, ANGULAR BALL (22X50X15)
$40.69¢20 344
#22
BEARING, RADIAL BALL (6204UU)
$13.90¢6 952
#23
DUST SEAL (30X50X7)
$13.73¢6 865
#24
DUST SEAL (30X47X7.5)
$17.03¢8 516
#25
O-RING (55X2)
$3.36¢1 679
