CLUTCH 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

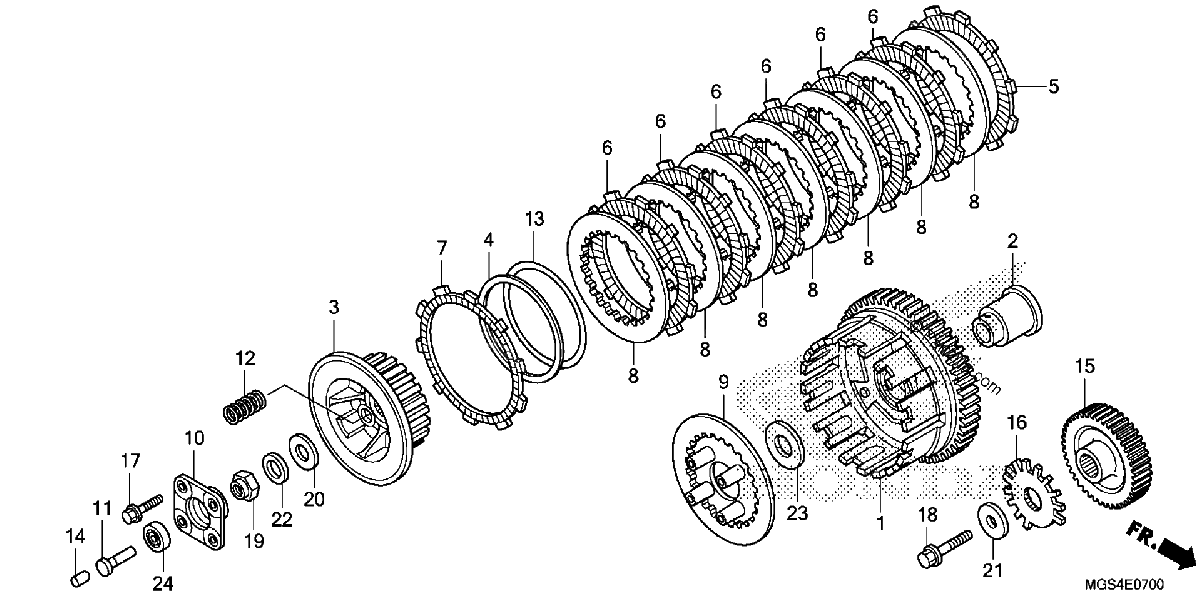

Diagrama de CLUTCH 1

Repuestos

#1
22100-MGS-D30
CLUTCH OUTER (71T)
$479.10¢239 551
1
#2
22116-MGS-D30
GUIDE, CLUTCH (OUTER)
$44.73¢22 367
1
#3
22120-MBA-000
CENTER, CLUTCH (24T)
$93.82¢46 909
1
#4
22125-435-000
SEAT, JUDDER SPRING
$9.84¢4 922
1
#5
22201-MAV-000
DISK, CLUTCH FRICTION
$13.91¢6 958
1
#6
22201-MFF-D00
DISK, CLUTCH FRICTION
$15.89¢7 946
1
#7
22202-MAE-000
DISK B, CLUTCH FRICTION
$17.10¢8 550
1
#8
22321-MN8-000
PLATE, CLUTCH
$10.09¢5 043
1
#9
22350-MS6-921
PLATE, CLUTCH PRESSURE
$64.61¢32 304
1
#9
22350-MS6-922
PLATE, CLUTCH PRESSURE
$64.61¢32 304
1
#10
22361-MR1-000
PLATE, CLUTCH LIFTER
$22.62¢11 310
1
#11
22366-MGS-D30
ROD, CLUTCH CENTER
$20.19¢10 097
1
#12
22401-MM9-000
SPRING, CLUTCH
$4.25¢2 128
1
#13
22402-435-000
SPRING, JUDDER
$36.72¢18 360
1
#14
22847-MFF-D00
ROD, CLUTCH LIFTER
$7.35¢3 674
1
#15
23103-MGS-D30
GEAR, PRIMARY DRIVE (41T)
$174.10¢87 049
1
#16
30291-MGS-D30
ROTOR, PULSE
$9.50¢4 749
1
#17
90007-MJH-Y01
BOLT, FLANGE (6X35)
$3.36¢1 679
1
#17
90007-MR1-000
BOLT, SPECIAL FLANGE (6X30)
$3.36¢1 679
1
#18
90023-MBW-000
BOLT, FLANGE (10MM)
$11.59¢5 796
1
#19
90236-HA0-000
NUT, LOCK (18MM)
$11.24¢5 618
1
#20
90401-MZ8-B40
WASHER (18MM)
$3.00¢1 501
1
#21
90414-MGE-D00
WASHER (10.5X36X4)
$2.78¢1 392
1
#22
90432-428-000
WASHER, LOCK
$8.45¢4 226
1
#23
90452-471-000
WASHER, THRUST (22MM)
$5.32¢2 662
1
#24
96100-60010-00
BEARING, RADIAL BALL (6001)
$23.86¢11 931
1
