TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

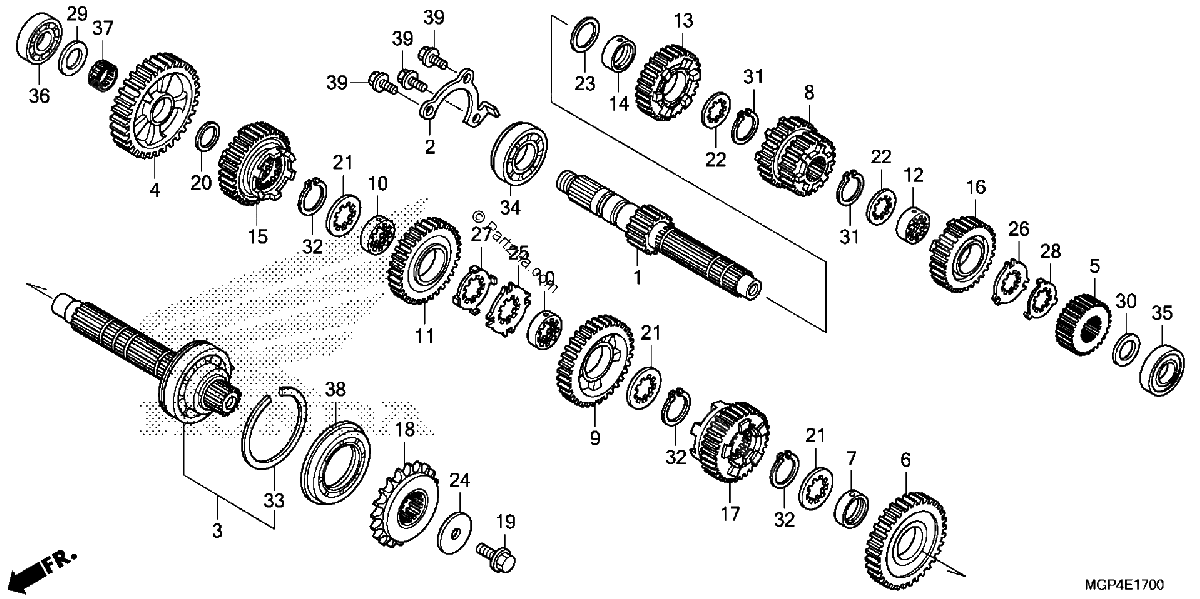

Diagrama de TRANSMISSION

Repuestos

#1
23211-MFL-000
MAINSHAFT (14T)
$215.41¢107 706
1
#2
23212-MFL-000
PLATE, BEARING SETTING
$10.14¢5 069
1
#3
23220-MFL-000
COUNTERSHAFT
$262.40¢131 200
1
#4
23421-MFL-000
GEAR, COUNTERSHAFT FIRST (32T)
$142.17¢71 087
1
#5
23431-MFL-000
GEAR, MAINSHAFT SECOND (18T)
$78.01¢39 006
1
#6
23441-MGP-000
GEAR, COUNTERSHAFT SECOND (32T)
$186.13¢93 063
1
#7
23442-MCJ-000
COLLAR (30X9.5)
$16.51¢8 256
1
#8
23451-MFL-000
GEAR, MAINSHAFT THIRD FOURTH (22T/24T)
$185.38¢92 688
1
#9
23461-MGP-000
GEAR, COUNTERSHAFT THIRD (33T)
$194.51¢97 256
1
#10
23462-MAT-000
COLLAR, SPLINE (30X11)
$29.61¢14 806
1
#11
23481-MGP-000
GEAR, COUNTERSHAFT FOURTH (32T)
$153.07¢76 538
1
#12
23482-MR7-000
COLLAR, SPLINE (28X13.5)
$39.81¢19 906
1
#13
23491-MFL-000
GEAR, MAINSHAFT FIFTH (28T)
$150.13¢75 063
1
#14
23495-MM5-000
COLLAR (28X13)
$29.61¢14 806
1
#15
23501-MFL-000
GEAR, COUNTERSHAFT FIFTH (34T)
$172.05¢86 025
1
#16
23511-MFL-000
GEAR, MAINSHAFT SIXTH (29T)
$150.13¢75 063
1
#17
23521-MFL-000
GEAR, COUNTERSHAFT SIXTH (33T)
$172.05¢86 025
1
#18
23801-MCJ-750
SPROCKET, DRIVE (16T)
$107.24¢53 619
1
#19
90037-422-003
BOLT, SPECIAL (10MM)
$8.89¢4 444
1
#20
90402-HA5-000
WASHER, THRUST (24MM)
$4.44¢2 219
1
#21
90452-MAT-000
WASHER, SPLINE (30X36X1.5)
$4.24¢2 119
1
#22
90452-MR7-000
WASHER, SPLINE (28X34X1.5)
$8.15¢4 075
1
#23
90458-729-920
WASHER, THRUST (28MM)
$6.89¢3 444
1
#24
90459-438-000
WASHER (10.2MM)
$7.08¢3 538
1
#25
90463-MAT-000
WASHER, SPLINE (30MM)
$5.88¢2 938
1
#26
90463-MCJ-000
WASHER, SPLINE (28MM)
$7.15¢3 575
1
#27
90464-MAT-000
WASHER, LOCK (30MM)
$8.65¢4 325
1
#28
90464-MCJ-000
WASHER, LOCK (28MM)
$7.15¢3 575
1
#29
90469-759-000
SHIM J, FINAL REDUCTION THIRD GEAR (2.0MM)
$8.30¢4 150
1
#30
90554-MEL-000
WASHER, THRUST (20MM)
$2.48¢1 238
1
#31
90602-MM5-000
CIRCLIP (28MM)
$4.54¢2 269
1
#31
90603-MN4-000
CIRCLIP (28MM)
$4.54¢2 269
1
#32
90604-MM5-000
CIRCLIP (30MM)
$5.42¢2 713
1
#33
90605-MM5-000
RING, SNAP (72MM)
$11.66¢5 831
1
#34
91001-MFL-003
BEARING, RADIAL BALL (28X62X16)
$25.54¢12 769
1
#35
91002-MFL-003
BEARING, SPECIAL (20X47X15.5)
$27.95¢13 975
1
#36
91003-MFL-003
BEARING, SPECIAL (20X52X15)
$25.54¢12 769
1
#37
91026-MEL-003
BEARING, NEEDLE (24X28X10)
$14.00¢7 000
1
#38
91207-MAT-003
OIL SEAL (45X72X8)
$20.64¢10 319
1
#39
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
