OIL PAN OIL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

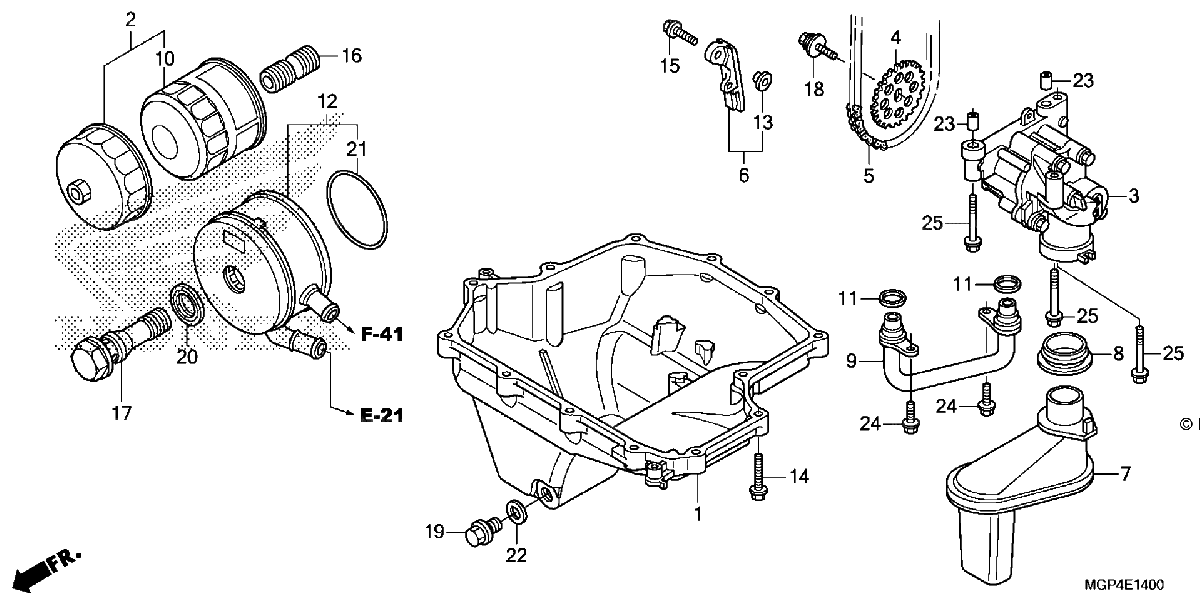

Diagrama de OIL PAN OIL PUMP

Repuestos

#1
11210-MGP-000
PAN, OIL
$382.34¢191 169
1
#2
15010-MCE-H51
FILTER SET, OIL
$23.05¢11 525
1
#3
15100-MFL-000
PUMP ASSY., OIL
$295.04¢147 519
1
#4
15134-MEL-000
SPROCKET, OIL PUMP DRIVEN (25T)
$59.61¢29 806
1
#5
15141-MFL-003
CHAIN, OIL PUMP (72L)
$22.49¢11 244
1
#6
15146-MFL-000
GUIDE, OIL PUMP CHAIN
$9.32¢4 663
1
#7
15150-MFL-000
STRAINER, OIL
$42.93¢21 463
1
#8
15154-MAT-000
GASKET, OIL STRAINER
$7.46¢3 731
1
#9
15310-MFL-000
PIPE, OIL
$100.25¢50 125
1
#10
15410-MFJ-D01
FILTER, OIL (TOYO ROKI)
$17.98¢8 988
1
#11
15433-MFJ-D01
RING, SEAL
$2.66¢1 331
1
#12
15700-MGP-003
COOLER, OIL
$409.88¢204 938
1
#13
61107-MCR-D00
COLLAR, FR. FENDER
$2.89¢1 444
1
#14
90006-GHB-680
BOLT, FLANGE (6X28) (NSHF)
$2.63¢1 313
1
#15
90011-MFL-000
BOLT, FLANGE (6X20)
$2.41¢1 206
1
#16
90019-MB0-000
BOSS, OIL FILTER
$10.08¢5 038
1
#17
90019-MFJ-D00
BOLT, OIL COOLER
$82.56¢41 281
1
#18
90021-MM5-000
BOLT-WASHER (6X12)
$6.20¢3 100
1
#19
90131-883-000
BOLT, DRAIN PLUG (12X15)
$4.89¢2 444
1
#19
90131-896-650
BOLT, DRAIN PLUG (12X15)
$4.89¢2 444
1
#20
90402-MFJ-D01
WASHER, SEALING (34.5MM)
$8.75¢4 375
1
#21
91354-MCT-003
O-RING, OIL COOLER
$9.22¢4 613
1
#22
94109-12000
WASHER, DRAIN PLUG (12MM)
$1.57¢788
1
#23
94301-08140
PIN, DOWEL (8X14)
$2.89¢1 444
1
#24
95701-06016-00
BOLT, FLANGE (6X16)
$2.09¢1 044
1
#25
95701-06045-00
BOLT, FLANGE (6X45)
$2.79¢1 394
1
#25
95701-06045-07
BOLT, FLANGE (6X45)
$2.79¢1 394
1
