REAR CYLINDER HEAD COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

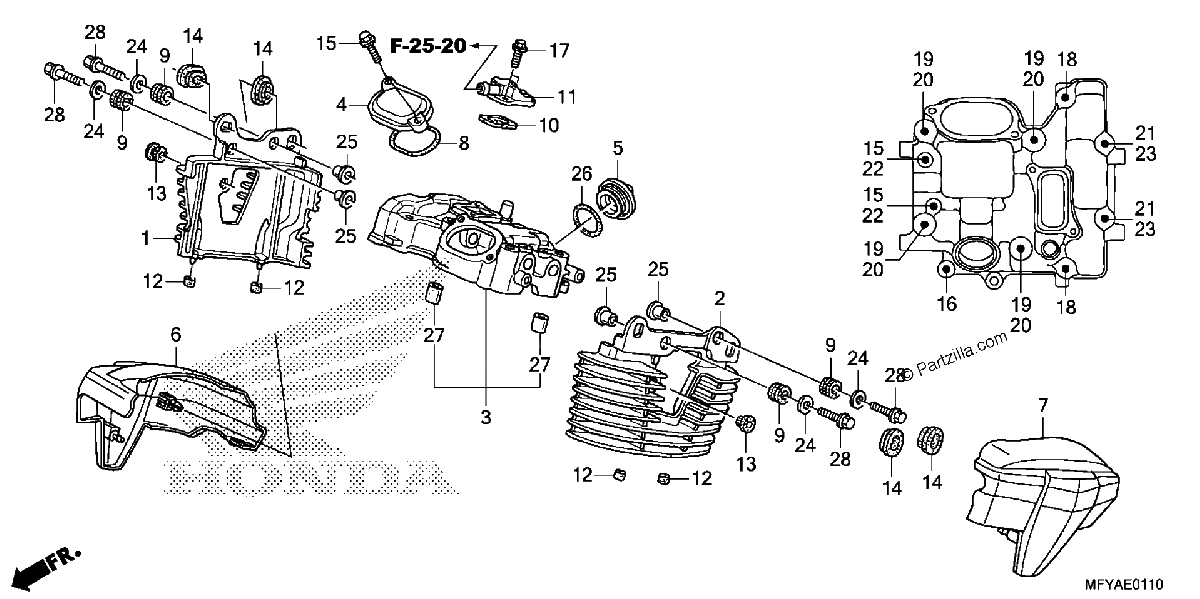

Diagrama de REAR CYLINDER HEAD COVER

Repuestos

#001
12281-MFY-A00
FIN, CYLINDER HEAD (RR. R.)
$211.48¢105 742
1
#1
12281-MFY-A00
FIN, CYLINDER HEAD (RR. R.)
$211.48¢105 742
1
#002
12291-MFY-A00
FIN, CYLINDER HEAD (RR. L.)
$217.58¢108 790
1
#2
12291-MFY-A00
FIN, CYLINDER HEAD (RR. L.)
$217.58¢108 790
1
#3
12320-MEA-670
COVER, RR. CYLINDER HEAD
$359.21¢179 607
1
#003
12320-MEA-670
COVER, RR. CYLINDER HEAD
$359.21¢179 607
1
#004
12341-MEA-670
COVER, IN. TAPPET ADJUSTING HOLE
$18.81¢9 407
1
#4
12341-MEA-670
COVER, IN. TAPPET ADJUSTING HOLE
$18.81¢9 407
1
#005
12361-383-000
CAP, TAPPET ADJUSTING HOLE
$7.16¢3 582
1
#5
12361-383-000
CAP, TAPPET ADJUSTING HOLE
$7.16¢3 582
1
#006
12380-MFR-670
COVER, R. RR. OVER HEAD
$94.52¢47 259
1
#6
12380-MFR-670
COVER, R. RR. OVER HEAD
$94.52¢47 259
1
#007
12390-MFR-A00
COVER, L. RR. OVER HEAD
$79.61¢39 807
1
#7
12390-MFR-A00
COVER, L. RR. OVER HEAD
$79.61¢39 807
1
#8
12392-HC4-005
GASKET, TAPPET COVER (KOYO)
$4.38¢2 191
1
#008
12392-HC4-005
GASKET, TAPPET COVER (KOYO)
$4.38¢2 191
1
#9
17622-GB7-900
RUBBER, CUSHION
$5.35¢2 674
1
#009
17622-GB7-900
RUBBER, CUSHION
$5.35¢2 674
1
#010
18601-MCH-003
VALVE, REED
$28.95¢14 473
1
#10
18601-MCH-003
VALVE, REED
$28.95¢14 473
1
#11
18612-MCH-000
COVER, REED VALVE
$25.15¢12 575
1
#011
18612-MCH-000
COVER, REED VALVE
$25.15¢12 575
1
#12
19041-611-003
RUBBER, BUSHING
$48.28¢24 138
1
#012
19041-611-003
RUBBER, BUSHING
$48.28¢24 138
1
#013
83501-MG7-000
GROMMET, SIDE COVER
$3.09¢1 547
1
#13
83501-MG7-000
GROMMET, SIDE COVER
$3.09¢1 547
1
#014
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.27¢3 134
1
#14
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.27¢3 134
1
#15
90004-GHB-650
BOLT, FLANGE (6X20) (NSHF)
$2.32¢1 162
1
#015
90004-GHB-650
BOLT, FLANGE (6X20) (NSHF)
$2.32¢1 162
1
#16
90006-GHB-670
BOLT, FLANGE (6X25) (NSHF)
$2.13¢1 064
1
#016
90006-GHB-670
BOLT, FLANGE (6X25) (NSHF)
$2.13¢1 064
1
#017
90012-896-750
BOLT, FLANGE (5X14)
$1.41¢707
1
#17
90012-896-750
BOLT, FLANGE (5X14)
$1.41¢707
1
#018
90015-MG8-000
BOLT, FLANGE (8X150)
$6.76¢3 381
1
#18
90015-MG8-000
BOLT, FLANGE (8X150)
$6.76¢3 381
1
#019
90201-HA0-000
NUT, CAP (10MM)
$7.19¢3 594
1
#19
90201-HA0-000
NUT, CAP (10MM)
$7.19¢3 594
1
#019
90202-HA0-000
NUT, FLANGE CAP (10MM)
$7.19¢3 594
1
#19
90202-HA0-000
NUT, FLANGE CAP (10MM)
$7.19¢3 594
1
#20
90403-ML4-610
WASHER, SEALING (10MM)
$6.29¢3 145
1
#020
90403-ML4-610
WASHER, SEALING (10MM)
$6.29¢3 145
1
#21
90441-ME9-000
WASHER, SEALING (8MM)
$3.09¢1 547
1
#021
90441-ME9-000
WASHER, SEALING (8MM)
$3.09¢1 547
1
#022
90441-706-000
WASHER, SEALING (6MM)
$1.31¢655
1
#22
90441-706-000
WASHER, SEALING (6MM)
$1.31¢655
1
#23
90443-107-000
NUT, CAP (8MM)
$3.25¢1 627
1
#023
90443-107-000
NUT, CAP (8MM)
$3.25¢1 627
1
#24
90482-567-000
WASHER, SPECIAL (6MM)
$2.21¢1 104
1
#024
90482-567-000
WASHER, SPECIAL (6MM)
$2.21¢1 104
1
#24
90581-701-000
WASHER (18MM)
$2.21¢1 104
1
#024
90581-701-000
WASHER (18MM)
$2.21¢1 104
1
#24
90581-831-650
WASHER (18MM)
$2.21¢1 104
1
#024
90581-831-650
WASHER (18MM)
$2.21¢1 104
1
#25
90502-KGB-610
COLLAR, HEAD SIDE COVER
$2.51¢1 254
1
#025
90502-KGB-610
COLLAR, HEAD SIDE COVER
$2.51¢1 254
1
#26
91303-KK3-830
O-RING (35X3) (ARAI)
$3.36¢1 679
1
#026
91303-KK3-830
O-RING (35X3) (ARAI)
$3.36¢1 679
1
#27
94301-14200
PIN, DOWEL (14X20)
$2.70¢1 351
1
#027
94301-14200
PIN, DOWEL (14X20)
$2.70¢1 351
1
#028
95701-06025-00
BOLT, FLANGE (6X25)
$2.13¢1 064
1
#28
95701-06025-00
BOLT, FLANGE (6X25)
$2.13¢1 064
1
