CANISTER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

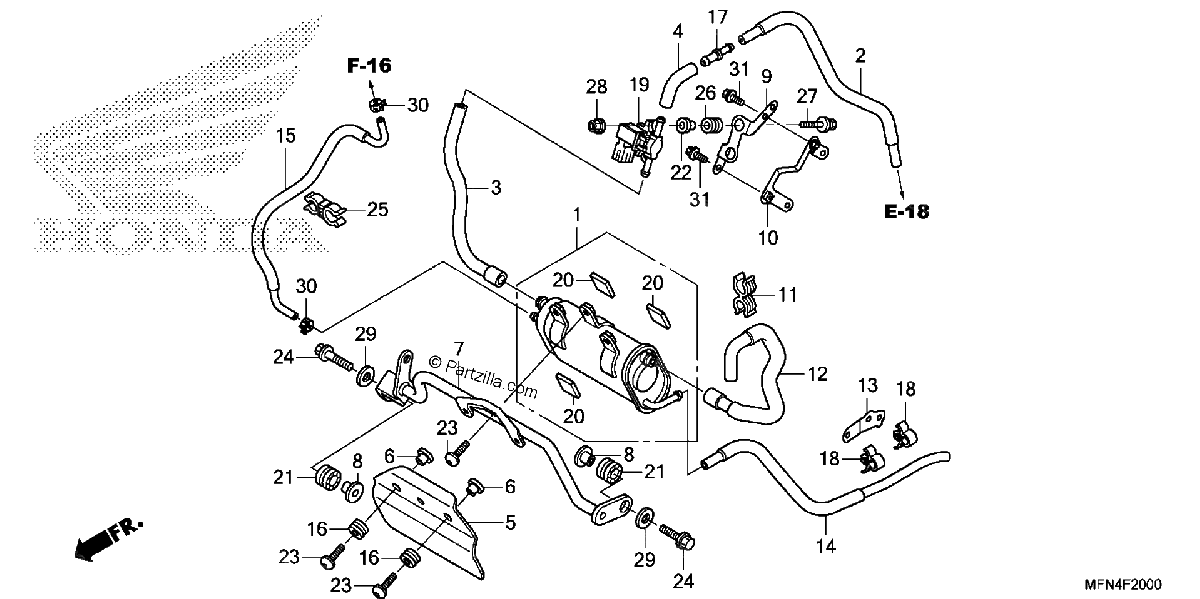

Diagrama de CANISTER

Repuestos

#1
17410-MFN-L61
CANISTER
$421.44¢210 719
1
#2
17411-MFN-L60
TUBE A, PURGE
$7.48¢3 738
1
#3
17412-MFN-L60
TUBE, CANISTER-P.C.V.
$13.49¢6 744
1
#4
17413-MFN-L60
TUBE B, PURGE
$7.25¢3 625
1
#5
17420-MFN-L60
COVER, CANISTER
$6.63¢3 313
1
#6
17421-MFN-L60
COLLAR, CANISTER COVER
$30.23¢15 113
1
#7
17430-MFN-L60
STAY, CANISTER
$25.99¢12 994
1
#8
17435-MFN-L60
COLLAR, CANISTER STAY
$34.49¢17 244
1
#9
17445-MFN-L60
STAY, P.C.V.
$4.06¢2 031
1
#10
17446-MFN-L60
SUB-STAY, P.C.V.
$8.55¢4 275
1
#11
17450-KY7-740
CLIP, TUBE
$3.81¢1 906
1
#12
17450-MFN-L60
TUBE, CANISTER-AIR
$17.18¢8 588
1
#13
17460-MFN-L60
STAY, DRAIN TUBE
$3.33¢1 663
1
#14
17470-MFN-L61
TUBE, CANISTER DRAIN
$8.89¢4 444
1
#15
17544-MFN-L60
TUBE, BREATHER
$48.52¢24 263
1
#16
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.81¢1 406
1
#17
19126-KM1-010
JOINT, TUBE
$4.88¢2 438
1
#18
30701-883-000
CLIP, IGNITION WIRE (8MM)
$3.57¢1 787
1
#19
36162-PLC-003
VALVE, PURGE CONTROL SOLENOID
$80.33¢40 163
1
#20
50328-HP1-600
RUBBER, BATTERY
$2.09¢1 044
1
#21
52112-MCA-000
RUBBER, JOINT PLATE
$3.89¢1 944
1
#22
84706-163-670
COLLAR, TAILLIGHT MOUNTING
$4.95¢2 475
1
#23
90006-KTW-900
BOLT, SPECIAL (6X18)
$3.40¢1 700
1
#24
90124-MFN-L60
BOLT (8X30)
$3.46¢1 731
1
#25
90651-KVS-611
CLAMP, TUBE
$3.98¢1 988
1
#26
90852-898-000
RUBBER, CONTROL BOX
$4.89¢2 444
1
#27
93404-05020-08
BOLT-WASHER (5X20)
$2.07¢1 037
1
#28
94050-05080
NUT, FLANGE (5MM)
$0.45¢225
1
#29
94103-08700
WASHER, PLAIN (8MM)
$1.21¢606
1
#30
95002-40730-08
CLAMP, TUBE (D7.3)
$3.26¢1 631
1
#31
96001-06012-00
BOLT, FLANGE (6X12)
$2.31¢1 156
1
