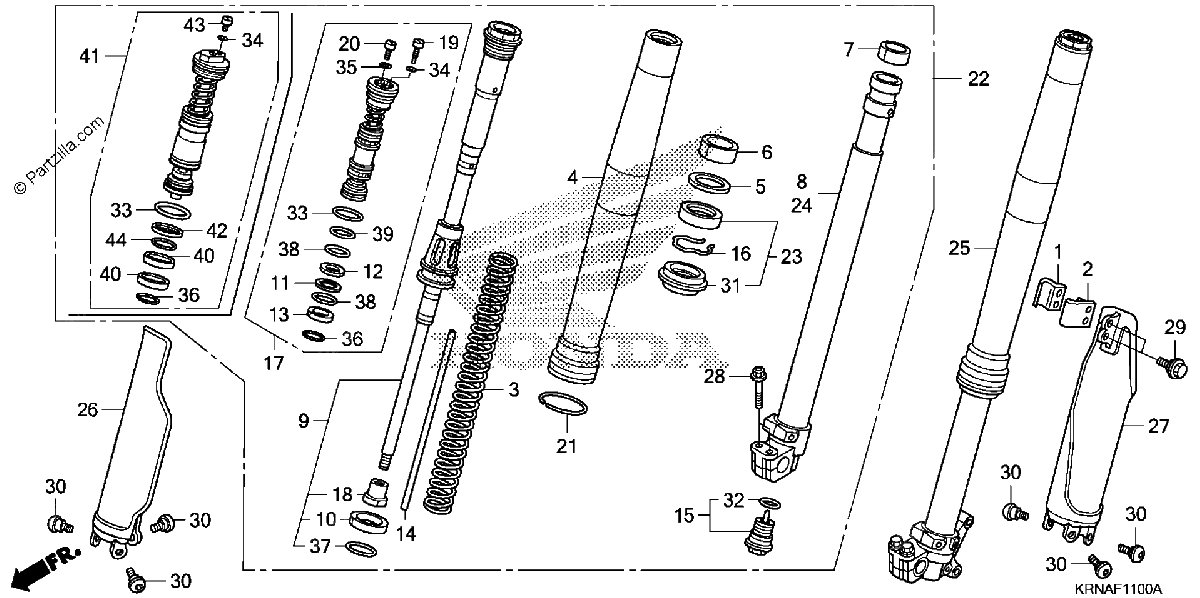

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CLAMP A, FR. BRAKE HOSE
$7.08¢3 542
#2
CLAMP B, FR. BRAKE HOSE
$5.22¢2 610
#3
SPRING, FR. FORK (4.4N/MM,0.45KGF/MM) (SHOWA)
$119.15¢59 576
#3
SPRING, FR. FORK (4.2N/MM,0.43KGF/MM) (SHOWA)
$128.95¢64 475
#3
SPRING, FR. FORK (4.6N/MM,0.47KGF/MM) (SHOWA)
$128.91¢64 457
#4
TUBE (OUTER)
No Disponible
#5
RING, BACK-UP
$6.37¢3 186
#6
BUSH, GUIDE
$7.50¢3 749
#7
BUSH, SLIDER
$10.50¢5 250
#8
PIPE, R. SLIDE
$537.56¢268 778
#9
DAMPER, FR.
No Disponible
#10
BUSH B, SLIDER
$5.24¢2 622
#14
COLLAR, REBOUND NEEDLE
$8.41¢4 203
#15
BOLT, CENTER
$36.63¢18 314
#16
RING, OIL SEAL STOPPER
$5.69¢2 846
#18
NUT, LOCK
$11.42¢5 710
#21
RING, WEAR
$5.46¢2 731
#22
FORK SUB-ASSY., R. FR. (COO) (SHOWA)
$1929.23¢964 614
#23
SEAL SET, FR. FORK
$24.43¢12 213
#24
PIPE, L. SLIDE
$537.65¢268 824
#25
FORK SUB-ASSY., L. FR. (COO) (SHOWA)
$1818.23¢909 115
#26
PROTECTOR, R. FR. FORK *TNATURAL* (NATURAL)
$51.78¢25 892
#27
PROTECTOR, L. FR. FORK *TNATURAL* (NATURAL)
$56.50¢28 250
#28
BOLT, FLANGE (8X40)
$2.53¢1 265
#29
BOLT, FLANGE (6MM)
$3.36¢1 679
#30
BOLT, PROTECTOR
$3.93¢1 967
#31
DUST SEAL
$18.64¢9 321
#32
O-RING (21X1.9)
$3.27¢1 633
#33
O-RING (39.7X2.4)
$2.51¢1 254
#34
O-RING (3.5X1.5)
$3.21¢1 604
#36
O-RING (31.5X2.0) (SHOWA)
$2.71¢1 357
#36
O-RING (31.5X2.0)
$2.71¢1 357
#36
O-RING (31.5X2.0)
$2.71¢1 357
#37
O-RING (47.2X2.4)
$4.21¢2 105
#40
BUSH, SLIDER
No Disponible
#41
BOLT ASSY., FR. FORK
$330.35¢165 175
#42
RING, PISTON
$11.65¢5 825
#43
BOLT, PLUG
$6.92¢3 461
#44
O-RING (31.6X1.8)
$2.77¢1 386
