GEARSHIFT DRUM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

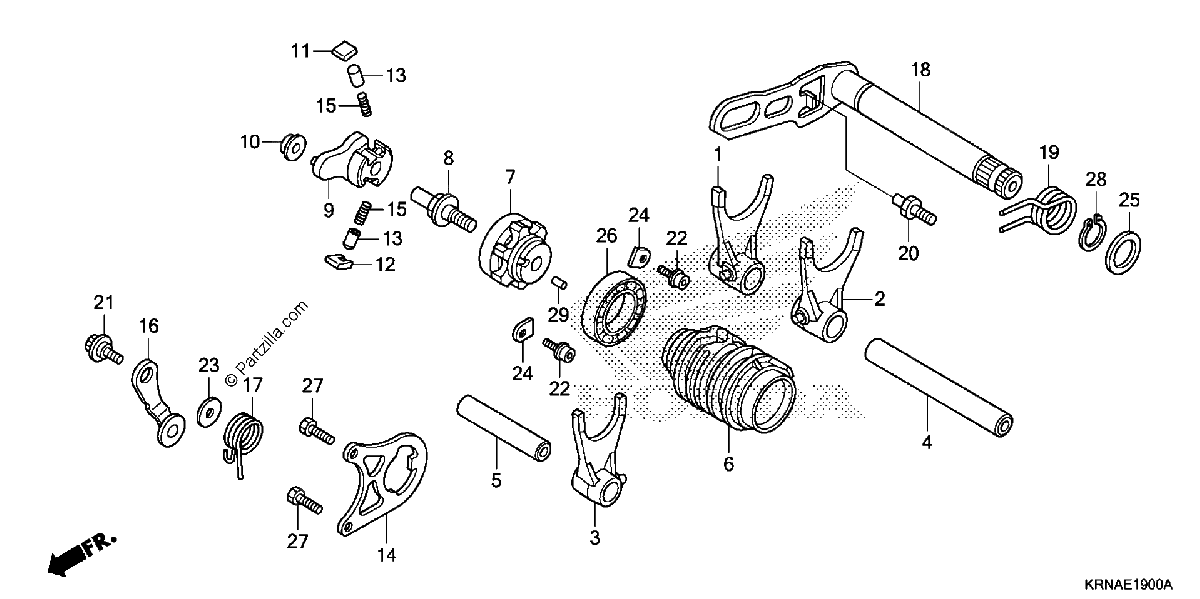

Diagrama de GEARSHIFT DRUM

Repuestos

#1
24211-KRN-A40
FORK, R. GEARSHIFT
$74.81¢37 406
1
#2
24221-KRN-A40
FORK, L. GEARSHIFT
$74.81¢37 406
1
#3
24231-KRN-A40
FORK, CENTER GEARSHIFT
$78.91¢39 456
1
#4
24241-KSC-670
SHAFT A, SHIFT FORK
$37.40¢18 700
1
#5
24242-KRN-A40
SHAFT B, SHIFT FORK
$18.43¢9 213
1
#6
24311-KRN-A40
DRUM, GEARSHIFT
$89.91¢44 956
1
#7
24312-KRN-A30
CENTER, GEARSHIFT DRUM
$56.74¢28 369
1
#8
24315-HA0-000
PIN, SHIFTER
$14.63¢7 313
1
#9
24321-MEB-670
SHIFTER, DRUM
$47.09¢23 544
1
#10
24322-MM4-000
COLLAR, SHIFTER
$6.20¢3 100
1
#11
24324-KA3-711
PAWL A, RATCHET
$15.48¢7 738
1
#12
24325-KA3-711
PAWL B, RATCHET
$15.48¢7 738
1
#13
24326-KBH-901
PLUNGER, PAWL
$7.05¢3 525
1
#14
24328-KRN-A40
PLATE, GUIDE
$17.48¢8 738
1
#15
24329-KA3-740
SPRING, PAWL PLUNGER
$3.65¢1 825
1
#16
24430-KRN-A30
STOPPER, GEARSHIFT DRUM
$24.96¢12 481
1
#17
24435-KSE-670
SPRING, DRUM STOPPER
$3.65¢1 825
1
#18
24610-KRN-A41
SPINDLE, GEARSHIFT
$83.42¢41 713
1
#19
24651-MEB-670
SPRING, GEARSHIFT RETURN
No Disponible
1
#20
24652-KRN-A40
PIN, GEARSHIFT RETURN SPRING
$5.90¢2 950
1
#21
90022-MG8-000
PIVOT, SHIFT DRUM STOPPER ARM
$3.20¢1 600
1
#22
90071-MF5-000
BOLT, FLANGE SOCKET (6X14)
$4.06¢2 031
1
#23
90435-HB3-000
WASHER (6.1MM)
$3.65¢1 825
1
#24
90441-KA4-700
PLATE, BEARING HOLDER
$4.06¢2 031
1
#25
90451-155-000
WASHER (14MM)
$4.59¢2 294
1
#26
91004-KY4-900
BEARING, RADIAL BALL (6905U)
$26.56¢13 281
1
#27
93301-06016-0A
BOLT, HEX. (6X16)
$1.89¢944
1
#28
94510-14000
CIRCLIP, OUTER (14MM)
$1.31¢656
1
#29
96220-40080
ROLLER (4X8)
$0.65¢325
1
