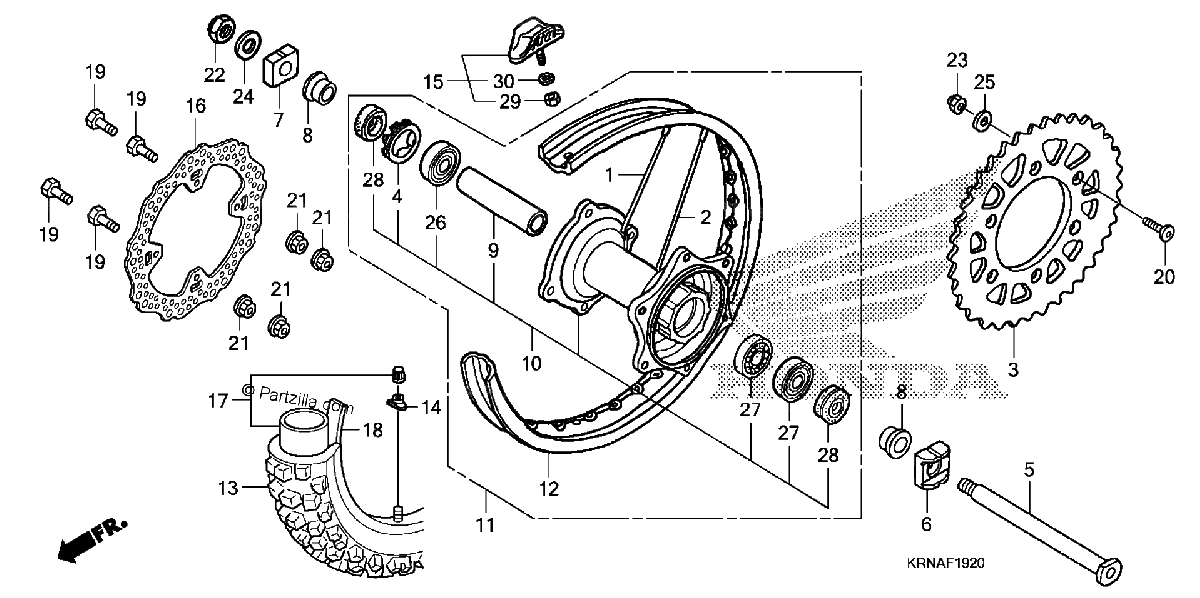

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SPOKE SET, RR.
$4.38¢2 191
#2
SPOKE SET, RR.
$4.38¢2 191
#3
SPROCKET, FINAL DRIVEN (49T)
$145.49¢72 743
#3
SPROCKET, FINAL DRIVEN (48T)
$145.49¢72 743
#3
SPROCKET, FINAL DRIVEN (50T)
$130.78¢65 389
#4
RETAINER, RR. WHEEL BEARING
$20.58¢10 292
#5
AXLE, RR. WHEEL
$50.59¢25 294
#6
COLLAR, L. RR. AXLE
$22.83¢11 414
#7
COLLAR, R. RR. AXLE
$20.58¢10 292
#8
COLLAR, RR. WHEEL SIDE
$24.56¢12 282
#9
COLLAR, RR. WHEEL DISTANCE
$29.84¢14 921
#10
HUB SUB-ASSY., RR.
$385.59¢192 797
#11
WHEEL SUB-ASSY., RR.
$1057.03¢528 517
#12
RIM, RR. WHEEL (19X1.85)
$331.88¢165 939
#13
TIRE, RR. (100/90-19 57M) (DUNLOP)
$254.75¢127 374
#14
CAP, VALVE
$11.18¢5 589
#15
STOPPER, BEAD (1.85)
$34.48¢17 239
#16
DISK, RR. BRAKE
$256.58¢128 288
#17
TUBE, TIRE (100/100-19) (DUNLOP)
$77.50¢38 749
#18
FLAP, TIRE (DUNLOP)
$6.59¢3 295
#19
BOLT, DISK (6X19)
$5.57¢2 783
#20
SCREW, FLAT (8X31)
$3.44¢1 719
#21
NUT, U (6MM) (FUSE RASHI)
$4.54¢2 271
#22
NUT, U (22MM)
$9.64¢4 819
#23
NUT, U (8MM) (FUSE RASHI)
$4.86¢2 432
#24
WASHER (22X35X2)
$3.36¢1 679
#25
WASHER (8MM)
$2.98¢1 489
#26
BEARING, RADIAL BALL (69052RS)
$19.68¢9 838
#27
BEARING, RADIAL BALL (6905RS)
$18.54¢9 269
#28
DUST SEAL (32X43X7)
$5.51¢2 754
#29
NUT, HEX. (8MM)
$1.54¢771
#30
WASHER, SPRING (8MM)
$1.12¢558
