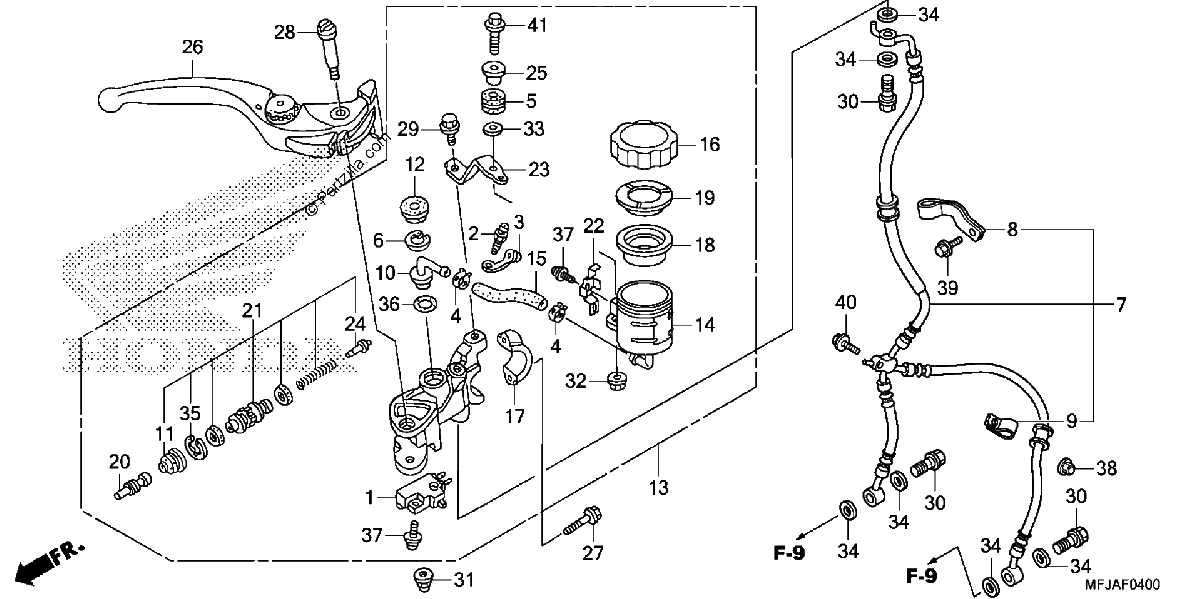

FRONT BRAKE MASTER CYLINDER CBR600RR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SWITCH ASSY., FR. STOP
$17.66¢8 831
#2
SCREW, BLEEDER (NISSIN)
$9.63¢4 813
#3
CAP, BLEEDER
$6.13¢3 063
#4
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
#5
RUBBER, OIL CUP
$5.99¢2 994
#6
CIRCLIP, Rear MASTER CYLINDER
$4.63¢2 313
#7
HOSE, FR. BRAKE
$193.56¢96 781
#8
CLAMP, FR. BRAKE HOSE
$8.81¢4 406
#9
CLAMP, FR. BRAKE HOSE
$5.10¢2 550
#10
CONNECTOR, MASTER CYLINDER
$10.99¢5 494
#11
BOOT
$15.29¢7 644
#12
COVER, DUST
$5.04¢2 519
#13
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)
$329.07¢164 538
#14
CUP, OIL
$11.50¢5 750
#15
HOSE, MASTER CYLINDER OIL
$6.32¢3 162
#16
CAP, OIL CUP
$21.39¢10 694
#17
HOLDER, MASTER CYLINDER
$13.79¢6 894
#18
DIAPHRAGM
$10.59¢5 294
#19
PLATE, DIAPHRAGM
$4.91¢2 456
#20
ROD, PUSH
$17.05¢8 525
#21
MASTER CYLINDER SET
$56.04¢28 019
#22
PLATE, STOP
$6.61¢3 306
#23
STAY, FR. MASTER CYLINDER
$5.99¢2 994
#24
GUIDE, SPRING
$10.31¢5 156
#25
COLLAR (6.3X13)
$5.88¢2 938
#26
LEVER ASSY., R. HANDLE (COO)
$61.01¢30 506
#27
BOLT, FLANGE (6X22)
$1.85¢925
#28
BOLT, HANDLE LEVER
$7.05¢3 525
#29
BOLT, FLANGE (6X12)
$3.84¢1 919
#30
BOLT, OIL (10X22)
$8.89¢4 444
#31
NUT, CAP (6MM)
$2.76¢1 381
#32
NUT, U (6MM)
$8.39¢4 194
#33
WASHER (6X16)
$1.70¢850
#34
WASHER, OIL BOLT
$4.85¢2 425
#35
CIRCLIP
$2.91¢1 456
#36
O-RING (14.8X2.4)
$3.30¢1 650
#37
SCREW-WASHER (4X12)
$1.72¢862
#37
SCREW-WASHER (4X12)
$1.72¢862
#38
NUT, CAP (6MM)
$1.99¢994
#39
BOLT, FLANGE (6X12)
$2.31¢1 156
#40
BOLT, FLANGE (6X18)
$1.63¢813
#41
BOLT, FLANGE (6X28)
$2.31¢1 156
