PEDAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

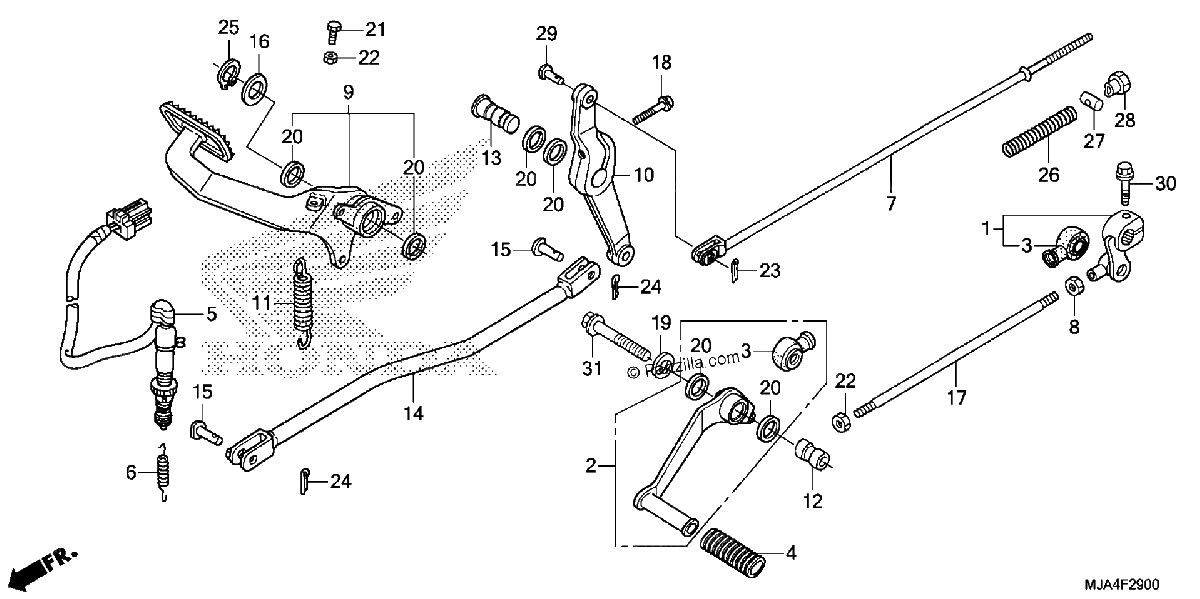

Diagrama de PEDAL 1

Repuestos

#001
24702-MEG-000
ARM, GEARSHIFT
$61.99¢30 994
1
#1
24702-MEG-000
ARM, GEARSHIFT
$61.99¢30 994
1
#002
24710-MFE-305
PEDAL, GEARSHIFT (COO)
$96.66¢48 331
1
#2
24710-MFE-305
PEDAL, GEARSHIFT (COO)
$96.66¢48 331
1
#002
24710-MFE-A40
PEDAL, GEARSHIFT
$96.66¢48 331
1
#3
24724-MBW-D21
COVER, DUST
$8.45¢4 225
1
#003
24724-MBW-D21
COVER, DUST
$8.45¢4 225
1
#4
24781-371-000
RUBBER, CHANGE PEDAL
$6.21¢3 106
1
#004
24781-371-000
RUBBER, CHANGE PEDAL
$6.21¢3 106
1
#005
35350-MEG-003
SWITCH Assembly., Rear STOP
$22.07¢11 038
1
#5
35350-MEG-003
SWITCH Assembly., Rear STOP
$22.07¢11 038
1
#5
35350-MEG-010
SWITCH Assembly., Rear STOP
$22.07¢11 038
1
#005
35350-MEG-010
SWITCH Assembly., Rear STOP
$22.07¢11 038
1
#6
35357-KR3-670
SPRING, STOP SWITCH
$6.20¢3 100
1
#006
35357-KR3-670
SPRING, STOP SWITCH
$6.20¢3 100
1
#007
43451-MEG-000
ROD, Rear BRAKE
$17.27¢8 638
1
#7
43451-MEG-000
ROD, Rear BRAKE
$17.27¢8 638
1
#8
45423-KA4-700
NUT, HEX. (6MM) (LEFT HAND THREAD)
$1.99¢994
1
#008
45423-KA4-700
NUT, HEX. (6MM) (LEFT HAND THREAD)
$1.99¢994
1
#9
46500-MFE-305
PEDAL Assembly., Rear BRAKE (COO)
$114.20¢57 100
1
#009
46500-MFE-305
PEDAL Assembly., Rear BRAKE (COO)
$114.20¢57 100
1
#009
46500-MFE-A40
PEDAL Assembly., Rear BRAKE
$114.20¢57 100
1
#10
46511-MEG-000
ARM, Rear BRAKE MIDDLE
$69.30¢34 650
1
#010
46511-MEG-000
ARM, Rear BRAKE MIDDLE
$69.30¢34 650
1
#11
46514-KZ9-000
SPRING, BRAKE PEDAL
$6.23¢3 113
1
#011
46514-KZ9-000
SPRING, BRAKE PEDAL
$6.23¢3 113
1
#012
46515-MM8-000
COLLAR, RR. BRAKE PIVOT
$13.60¢6 800
1
#12
46515-MM8-000
COLLAR, RR. BRAKE PIVOT
$13.60¢6 800
1
#13
46517-MEG-000
SHAFT, Rear BRAKE PIVOT
$24.57¢12 288
1
#013
46517-MEG-000
SHAFT, Rear BRAKE PIVOT
$24.57¢12 288
1
#14
46540-MEG-000
ROD, Rear BRAKE MIDDLE
$69.30¢34 650
1
#014
46540-MEG-000
ROD, Rear BRAKE MIDDLE
$69.30¢34 650
1
#015
46545-MBA-000
PIN, MIDDLE ROD JOINT
$8.69¢4 344
1
#15
46545-MBA-000
PIN, MIDDLE ROD JOINT
$8.69¢4 344
1
#16
53312-657-000
WASHER, BUSH
$8.13¢4 063
1
#016
53312-657-000
WASHER, BUSH
$8.13¢4 063
1
#17
90065-MEG-000
BOLT, TIE ROD
$9.44¢4 719
1
#017
90065-MEG-000
BOLT, TIE ROD
$9.44¢4 719
1
#018
90133-MAT-000
BOLT, FLANGE SOCKET (8X32)
$4.97¢2 488
1
#18
90133-MAT-000
BOLT, FLANGE SOCKET (8X32)
$4.97¢2 488
1
#019
90521-KF9-900
WASHER (10.3MM)
$2.38¢1 188
1
#19
90521-KF9-900
WASHER (10.3MM)
$2.38¢1 188
1
#020
91206-968-003
DUST SEAL (17X23X3) (NOK)
$4.47¢2 238
1
#20
91206-968-003
DUST SEAL (17X23X3) (NOK)
$4.47¢2 238
1
#021
92101-06020-0A
BOLT, HEX. (6X20)
$1.34¢669
1
#21
92101-06020-0A
BOLT, HEX. (6X20)
$1.34¢669
1
#22
94002-06000-0S
NUT, HEX. (6MM)
$1.68¢838
1
#022
94002-06000-0S
NUT, HEX. (6MM)
$1.68¢838
1
#023
94201-20120
PIN, SPLIT (2.0X12)
$1.27¢638
1
#23
94201-20120
PIN, SPLIT (2.0X12)
$1.27¢638
1
#024
94201-20150
PIN, SPLIT (2.0X15)
$1.34¢669
1
#24
94201-20150
PIN, SPLIT (2.0X15)
$1.34¢669
1
#25
94511-15000
CIRCLIP, OUTER (15MM)
$0.88¢438
1
#025
94511-15000
CIRCLIP, OUTER (15MM)
$0.88¢438
1
#026
95014-73100
SPRING A, BRAKE ROD
$1.66¢831
1
#26
95014-73100
SPRING A, BRAKE ROD
$1.66¢831
1
#027
95015-32001
JOINT B, BRAKE ARM
$1.21¢606
1
#27
95015-32001
JOINT B, BRAKE ARM
$1.21¢606
1
#028
95015-42000
NUT B, BRAKE ROD ADJUSTING
$2.48¢1 238
1
#28
95015-42000
NUT B, BRAKE ROD ADJUSTING
$2.48¢1 238
1
#029
95015-53000
PIN C, JOINT
$3.71¢1 856
1
#29
95015-53000
PIN C, JOINT
$3.71¢1 856
1
#030
95701-06020-00
BOLT, FLANGE (6X20)
$2.27¢1 138
1
#30
95701-06020-00
BOLT, FLANGE (6X20)
$2.27¢1 138
1
#031
95801-10050-07
BOLT, FLANGE (10X50)
$2.60¢1 300
1
#31
95801-10050-07
BOLT, FLANGE (10X50)
$2.60¢1 300
1
